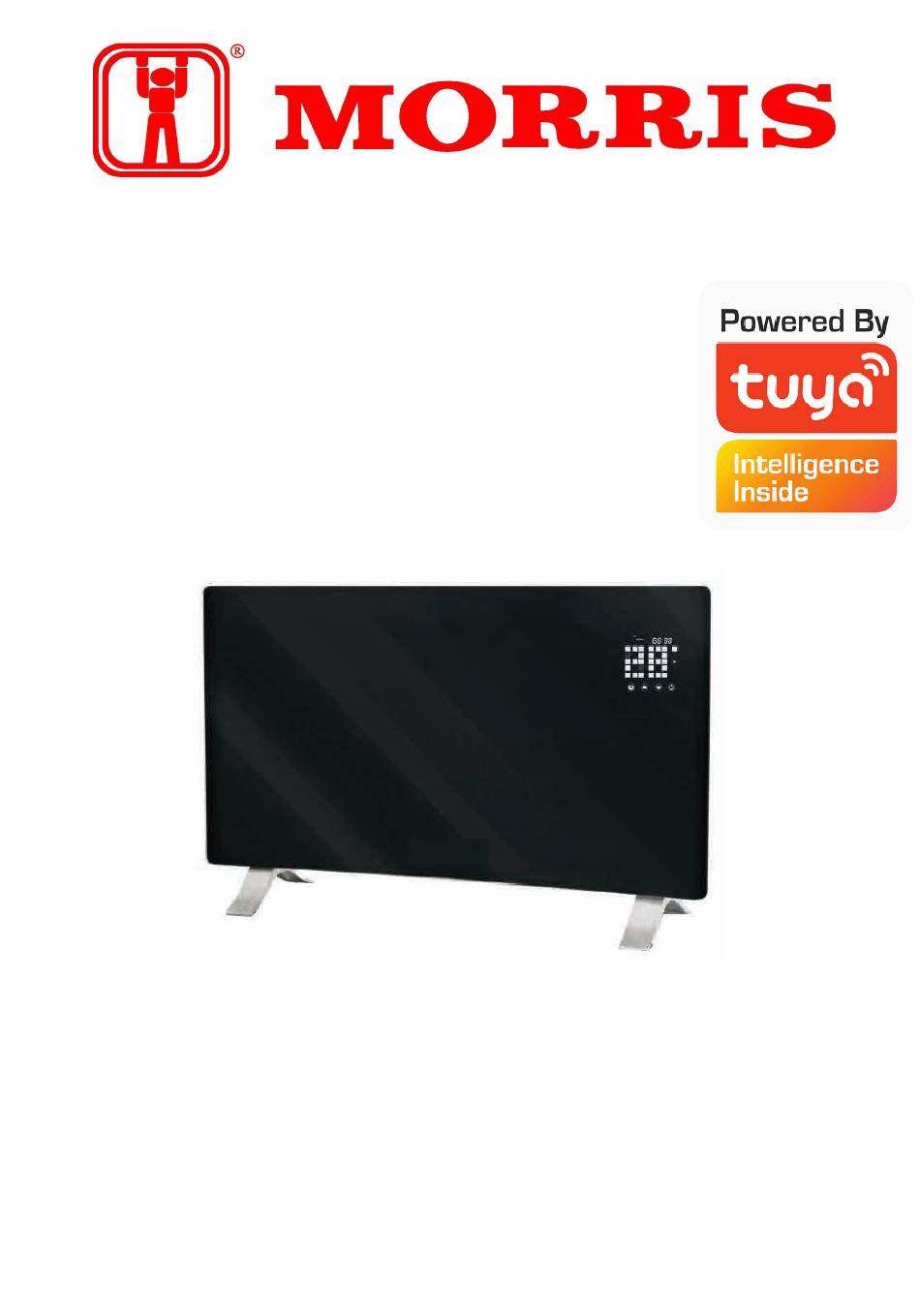

SLIMLINE PANEL HEATER
WITH WiFi FUNCTION
INSTRUCTIONS MANUAL
Model：MPH-20041S
This product is only suitable for well insulated spaces or occasional use.
Please read this manual carefully before using this product.
PICTURES IN THE MANUAL ARE FOR REFERENCE ONLY
AND IS SUBJECT TO THE PHYSICAL PRODUCT IN THE PACKING BOX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TUYA MORRIS MPH-20041S
Summary of Contents for TUYA MORRIS MPH-20041S
- Page 1 SLIMLINE PANEL HEATER WITH WiFi FUNCTION INSTRUCTIONS MANUAL Model：MPH-20041S This product is only suitable for well insulated spaces or occasional use. Please read this manual carefully before using this product. PICTURES IN THE MANUAL ARE FOR REFERENCE ONLY AND IS SUBJECT TO THE PHYSICAL PRODUCT IN THE PACKING BOX...
-
Page 2: Before First Use
BEFORE FIRST USE Read and follow all the instructions in this manual if you are familiar with the product and find a place to keep it handy for future reference. For your convenience record the complete model number (located on the product identification plate) and the date you received the product, together with your purchase receipt and attach to the warranty and service information. - Page 3 adjusted. • This appliance is not intended for use in outdoor locations. • Do not use this appliance in the immediate surrounds of a bath， a shower or a swimming pool or other liquids. • Always operate upright. • Switch off and let cooling before moving. •...
- Page 4 use. Overview of the appliance Specifications Model Number MPH-20041S Rated Power 1200W/2400W Rated Voltage 220-240V~50Hz Dimensions(mm) 865*105* 475...
- Page 5 Guide to the control panel "1"一 Setting Button "2"一 Up Button "3"一 Down Button "4"一 Power Button "5"一 Heating Element Working Indicator "6"一 Low Heating Indicator "7"一 High Heating Indicator "8"一 Timer Indicator "9"一 Temperature (℃/F) Indicator "10"一LED Number Display "11"一LED Screen Οn / Οff Button "12"一Low / Ηigh Heating Selection "13"一...
- Page 6 2.1 Starting 2.1.1 Take out the heater from the carton carefully. Please save the carton for off-season storage. 2.1.2 Make sure the power switch is in the OFF position before plugging it in. 2.1.3 Ensure the heater is fully assembled according to the Mounting Guide. 2.1.4 It is better not to use the same electric outlet with other high wattage electrical appliances in order to avoid overloading your circuit.
-
Page 7: Maintenance
To unlock: Press both 2&3 for 3 sec. 2.7 Display buttons activation Normally display buttons lights are off when unit is working. Touch the panel area below temperature, they are on again. 2.8 ECO function By chosing this mode, LED display screen turns OFF. 2.9 Switching the Display Between Degrees Fahrenheit And Celsius Press the keys 1&2 (the two keys on the left) for about 10 sec. -
Page 8: Replacement Of Supply Cord
5.5. When the heater is working as it is in wall mounted mode, do not touch the control unit when using it in the vicinity of bath, shower or swimming pool. 5.6. Consult a qualified electrician or service technician if the power cord is damaged. 5.7. - Page 10 Table for information requirements for electric local space heaters Model: MPH-200041S Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric local space heaters only (select one) Nominal heat Manual heat charge control with Pnom [no] output integrated thermostat Manual heat charge control with room...
-
Page 11: Notice About Recycling
NOTICE ABOUT RECYCLING Your product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/ recycling centre.
