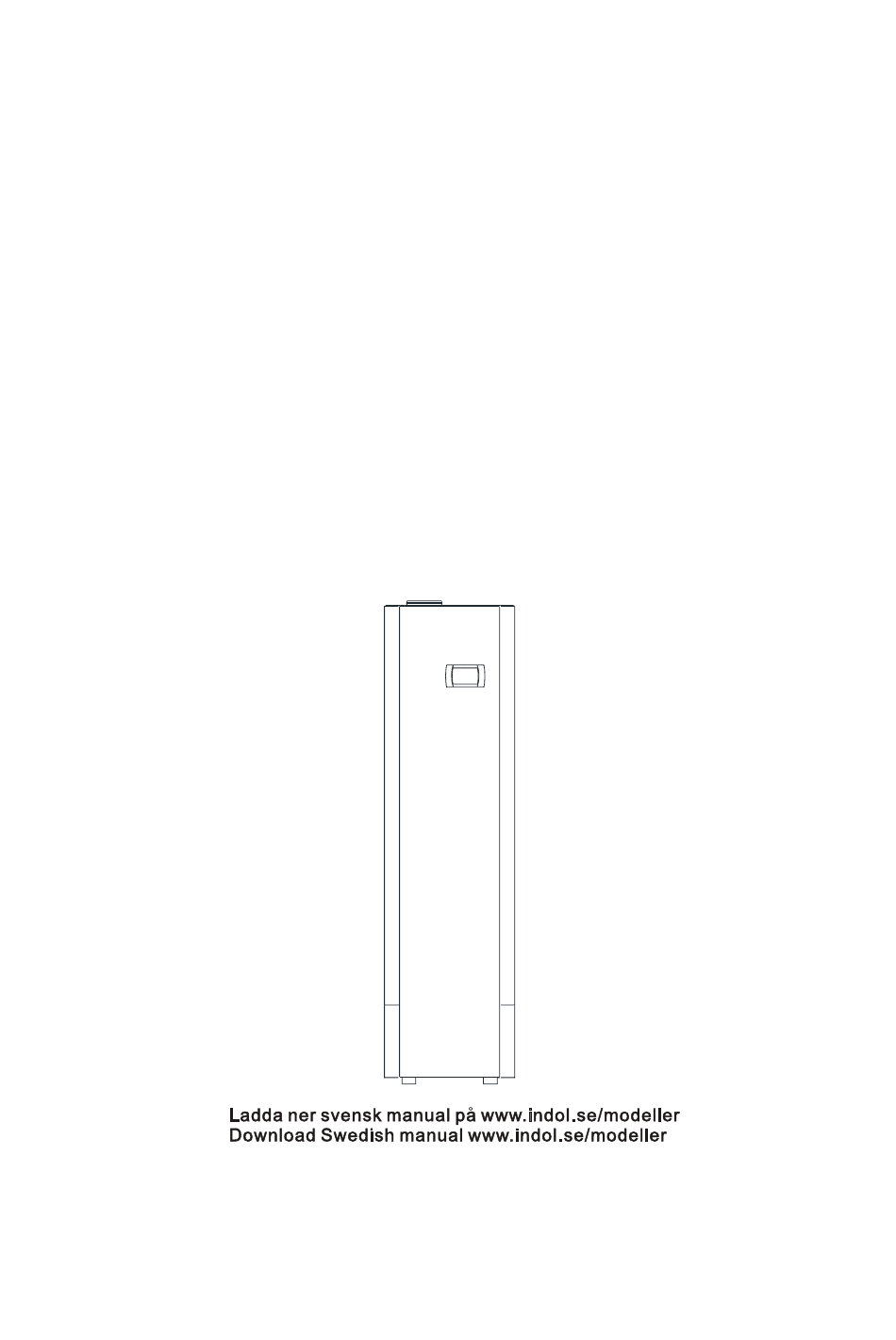

  • Page 1 INDOL INDOL COMPACT COMPACT Air source hot water heat pump Air source hot water heat pump Operation & Installation Manual Operation & Installation Manual...
  • Page 2 Preface This manual includes all the necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit. When install the unit and connect the pipe, please carry it out strictly according to the manual.
  • Page 3: Table Of Contents

    Content Content 1. Safety Precaution 2. Specs 2.1) Appearance 2.2) Characteristic 2.3) Principle 2.4) Dimensions 2.5) Performance Parameter 3. Function Presentation 4. Installation 4.1) Installation Sketch Map 4.2) Choose the Suitable Unit 4.3) Deposited and Transportation 4.4) Installation Position 4.5) Water Loop Connection 4.6) Wire Connection 4.7) Trial Running 5.
  • Page 4: Safety Precaution

    1.Safety Precaution Safety Precaution To prevent the users and others from the unpredictable/unexpected hurt of this unit, and avoid damage on the unit or other property, please use the heat pump properly, please read this manual carefully and understand the following information correctly. Meaning Mark A wrong operation may lead to death or heavy injury on people.
  • Page 5 1.Safety precaution The unit CANNOT be installed near the flammable gas. Once there is any leakage of the gas, fire can be occur. Installation place Make sure that the basement of the heat pump is strong enough, to avoid any decline or fall down of the unit. Fix the unit Make sure that there is circuit breaker for the unit, lack of circuit breaker Need circuit...
  • Page 6: Specs

    2.Specs 2.1 Appearance Air inlet Air outlet Controller Tank Water connections 2.2 Characteristic good looking and efficient Attractive design allows the unit to be placed in the open in finished utility spaces and basements, reducing the cost of remodelling; depending on external condition the cost of operation can be 25% of that of an electric water heater, and can be used in locations unsuitable for solar hot water heating.
  • Page 7: Principle

    2. Specs 2.3 principle High temp. Compressor Compressor Compressor Hot water Tank Air from exchanger outside Water exchanger Water supply Throttling device Low temp. System Principle: Refrigerant is compressed into vapor with high temperature and high pressure when it goes through the compressor. On the discharge side of the compressor, the now hot and highly pressurized vapor is cooled down through the heat exchange with the water in the tank until it condenses into a high pressure, moderate temperature liquid.
  • Page 8: Dimensions

    2.Specs 2.4 Dimensions Unit mm Model Indol Compact 200A++ Dimention 2100 Air outlet Air inlet Overheating protector Magnesium anode Eletricity heater Drainage Condensation water outlet Condensation Removeable knocking down hole (when water outlet you need to use this hole, as soon as the...
  • Page 9: Performance Parameter

    2.Specs 2.5 Performance Parameter Indol Compact 200A++ Model Heating capacity Water tank capacity Power input 0.46 Running current 230V~/50Hz Power supply Compressor Number Compressor rotary Rated outlet water Temp. ¡æ Air volume m3/h Air pressure Duct diameter inch Water inlet/outlet size...
  • Page 10: Function Presentation

    3.Function Presentation 1.Function Presentation Heating capacity The unit absorbs energy from outside and releases the heat according to the heat exchanger, if the environment temperature is low, the heating capacity will be attenuation. 3 minutes protection When the unit stop, if you restart the unit or turn on the manual switch, the unit will not run in 3 minutes, it's the protection for the compressor.
  • Page 11: Installation

    4. Installation 4.1 Installation Sketch Map Air outlet 160mm pipe Air inlet Hot water outlet Manual valve Cold water inlet Condensation water outlet Drainage NOTE! A safety valve MUST be installed on water inlet!
  • Page 12: Choose The Suitable Unit

    4.Installation 4.2 Choose the Suitable Unit Notice: The choice is just for reference, please choose the unit according to native environment and custom. Deposited and Transportation As a rule, the unit is to be stored and/or transported in its shipping container in upright position and without water charge.
  • Page 13: Installation Position

    4.Installation 4.5 Installation Position (1) Waste heat is useful heat (see picture below) The standard heat exchanger of the hot-water heat pump enables direct connection to a second heat generator, e.g. a solar heating system or a boiler. (2) Dehumidification in the recirculating air mode (see picture below) Dehumidified air in the laundry room supports laundry drying and prevents moisture- induced damage.
  • Page 14 4.Installation (3) Cooling in the recirculating air mode (see picture below) The room air is extracted from the storage room or a wine cellar, subsequently cooled and dehumidified in the heat pump and finally re-introduced into the room. Recreation rooms, boiler rooms or utility rooms are ideal installation sites.
  • Page 15: Water Loop Connection

    4.Installation 4.5 Water Loop Connection Pay attention to these points when connect the water loop pipe: Try to reduce the water loop resistance Make sure there is nothing in the pipe and the water loop is smooth, check the pipe carefully to see if there is any leak, then pack the pipe with the insulation.
  • Page 16: Usage

    5. Usage 5.1 The function diagram of the wire controller 1.Function of wire controller Auxiliary display Main display area area 1£ © Function of key Name NO. Button Function ON/OFF Turn on/off the unit. Switch unit running modes or save setting parameters. Mode Clock Set the clock or the timer.
  • Page 17 5. Usage Status Name What it means icon Shows that the unit is in heating mode. Heating Heatpump+Electric heater Shows that the unit is in ECO heating mode. ECO heating Heatpump only(saves most energy) Vacation Shows that the unit is in vacation mode. Shows that the fan is on and the speed of the fan.
  • Page 18 5. Usage 2.Usage of wire controller 2.1 Turn ON/OFF the unit Press " " and hold for 0.5s in the standby interface of the wire controller to turn on the unit and at this time the main display area shows the water outlet temperature. Press "...
  • Page 19 5. Usage Outlet water temperature Heating mode Time Eco.heating mode Press¡° ¡± Date Press¡° ¡± Intelligent mode Vacation mode Press¡° ¡± 2.3 Target temperature checking and setting In the standby or running interface, press " " or " " once to check the target temperature of the outlet water.
  • Page 20: Parameter

    5. Usage Target temperature Outlet water temperature Time Press once to check the target temperature. Press again to change the target temperature. Press to confirm cancel, then return to the previous interface. 2.4 Time setting In the standby or running interface, do as follows to set the time when in heating mode. When press "...
  • Page 21 5. Usage Press " " or " " to change the minute The date is flashing parameter. Press" " to confirm. Press once then press to change the month parameter and press to confirm. Press " " or " " to change the dayparameter.
  • Page 22 5. Usage Heating mode Outlet water temperature ON 1 Time Press hold for 2s. Press " " and hold for 2s to enter into the next setting without confirm the previous one. ON 2 OFF 1 Press " " and hold for 2s to enter into the next setting without...
  • Page 23 5. Usage Example: Running period 1: 8:00~10:00; Running period 2: 16:30~20:00. ON 1 Outlet water temperature Current time Press " " and hold for 2s. Confirm the time after setting. OFF 1 ON 2 Confirm the time after setting. Confirm the time after setting. OFF 2 Successful setting Without saving...
  • Page 24 5. Usage 2.5.2 In the vocation mode Press " " and hold for 2s to enter into the timer setting interface. The symbol "ON " and the date parameter are flashing at this time. Then set the date in the same way as "2.4 ". Turn off the unit before going Example: Set the start-up date on September 28.(Note: out.
  • Page 25 5. Usage 2.5.3 If you want to cancel the timer setting ,follow this below Outlet water temperature The "ON" and " 1 " icons are flashing Timer state Pressing " " lasting for 2S press " " to cancel all the operation...
  • Page 26 5. Usage 2.6 Electric heater setting The electric heater can be turned on when the unit is heating or standby. Press " " once to turn on the electric heater and press " " again to shut it off . Electric heater Electric heater 2.7 Fan mode setting...
  • Page 27 5. Usage 2.8 Keyboard locking Press " " and hold for 5s once to lock the keyboard. Press " " and hold for 5s again to unlock the keyboard. Lock icon Press" " and hold for 5s...
  • Page 28: Maintenance And Repair

    6.Maintenance and Repair 6.1 Maintenance Check the water supply and air vent frequently, to avoid lack of water or air in the water loop. Clean the water filter in a certain period to keep good water quality. Lack of water and dirty water can damage the unit.
  • Page 29: Trouble Shooting

    7.Appendix 6.2 Trouble Shooting For any malfunctions, please refer to the table below : Display Malfunction Canse Solution Bottom water The water b ottom temp. Sensor Check or change the water temp. Failure is open or short circuit bottom temp. Sensor Top tank water The water top tank temp.
  • Page 31 Code:20201120-0001 Code:20201120-0001...
