Teknic E3PS12-75 Power Supply Quick Reference
Introduction
Teknic model E3PS12-75 is a 75 VDC intelligent power supply
designed to provide the same reliable power and performance as its
predecessor (3PS12-75) with several added capabilities:
● Drop-in compatibility with Teknic SSt-3PS12-75.
● 115 VAC or 230 VAC
● Automatic DC bus dump on power down.
● Easy adjustment for high, medium or low AC line voltage.
● Intelligent regenerative energy management.
● Embedded microcontroller.
* Note: Teknic does not supply or sell 230VAC power cables for this
product. Users operating at 230VAC must build or otherwise source
this cable. Cable pinout can be found under "Mating Connectors" at right.
General Safety
The E3PS12-75 should be installed and operated as specified herein.
Failure to do so may impair or defeat any protections provided by the
equipment. Please read and follow all instructions before installing or
operating this device.
Mounting Safety
The power supply should be mounted behind covers or machine skins
that can only be opened with a tool. The covers or machine skins
should be marked as having hazardous voltages within. Alternatively,
the supply can be mounted behind doors that have a safety interlock
that removes power to the supply when opened.
The power supply should not be mounted in an area where the
ambient temperature exceeds 40°C.

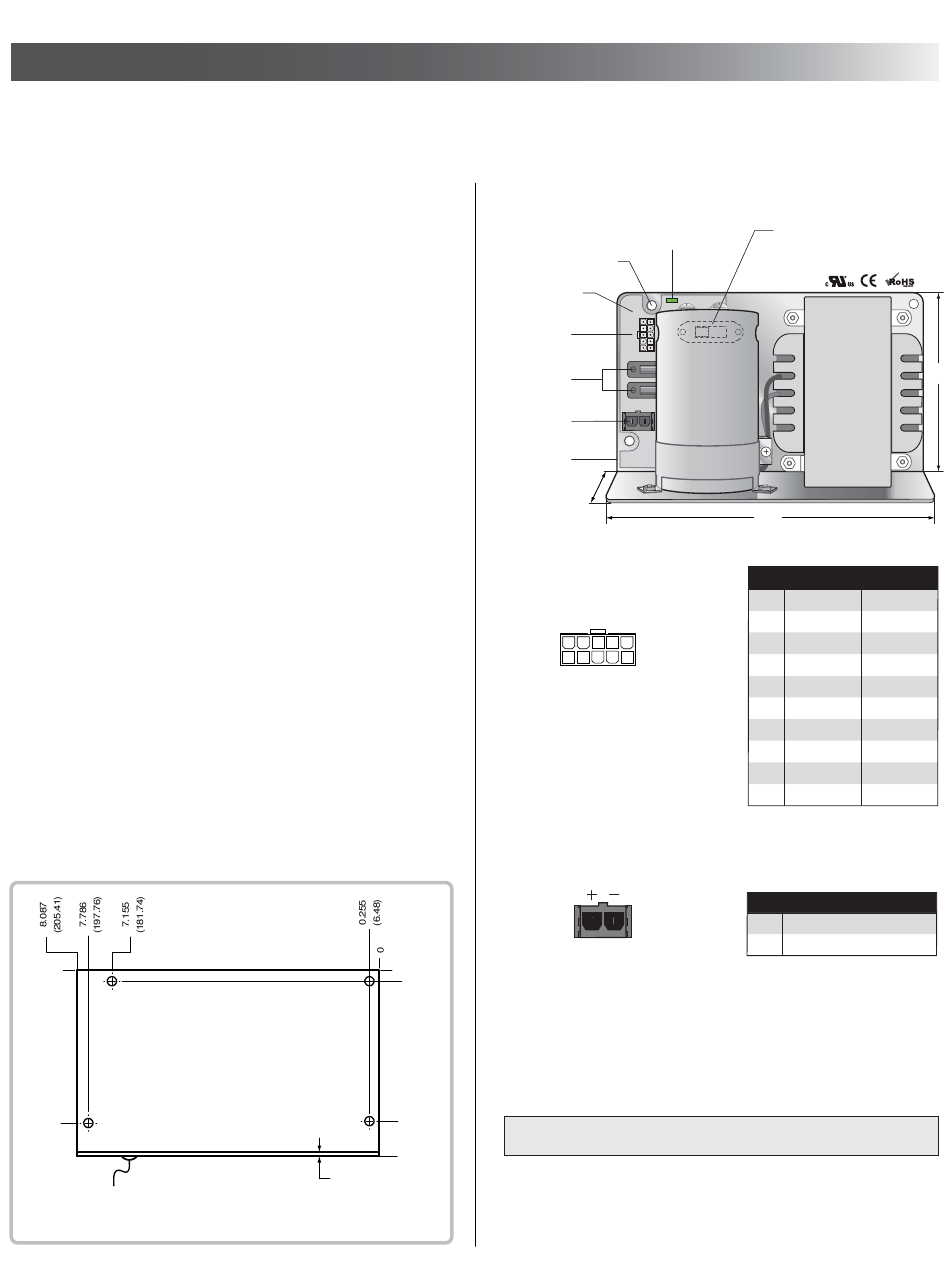

Mounting Dimensions
0
All Mounting holes
0.25" dia. thru +/- .02"
4.100
(104.14)
Note: screw head protrudes.09" from
projected surface. This does not affect
standard mounting surface.
*
nominal input voltage.
inch (mm)
0.090
(2.29)
E3PS12-75 Parts
Mounting Hole (x4)
Circuit Board
AC Input
Connector
Fuses (x2)
(see below)
DC Output
Connector
Mounting
Bracket
Mating Connectors
AC Input Connector / Pinout
10
5
wire entry view
Housing: Molex/39-01-2100
Terminals: Molex/39-00-0059
Crimp Tool: Molex/638190900
Extractor Tool: Molex/11-03-0044
Cable: 18AWG, 300V, Stranded
DC Output Connector / Pinout
wire entry view
0
.300
(7.62)
Housing: Molex/44441-2002
Terminals: Molex/43375-0001
Crimp Tool: Molex/63811-7200
Cable: 14-16AWG, 600V, Stranded
Replacement Fuses
4.050
(102.87)
Description: Fuse, 3AB, 2A, slow blow, 250VAC
4.964
(126.09)
Important: Use only the fuse type listed above regardless of AC line
voltage used. Using the wrong fuse can damage the power supply,
create a fire hazard, cause nuisance circuit breaker trips, and void the
product warranty.
Status LED
P1
Main Capacitor
P3
3.9"
Pos. 115 VAC
6
1
Note: Teknic does not supply or sell
a 230VAC input cable for this product.
Pos.
1 2
Cooper Bussman MDQ-2
Rev. M 09/14/15
Input Voltage
Selector Switch
(behind main cap)
ANNI I JL
5.0"
RH
JW HV
Transformer
BI I AS
TI I
8.1"
230 VAC*
1
no connect no connect
2
no connect
no connect
3 GND GND
4 AC IN
no connect
5 AC IN
no connect
AC IN
6 Jump to 9
7 Jump to 9
Jump to 10
8
no connect
no connect
Jump to 7
9 Jump to 6
10 Jump to 7 AC IN
Signal
1 DC Bus (V+)
2 DC Bus (V-)
