Teknic Amazon IPC-3 User Manual

Smart DC Power Supplies
Amazon IPC-3
75 Volt Intelligent Power Center
Amazon IPC-3 and IPC-5 power supplies deliver stiff, responsive
75 VDC power to Eclipse, Meridian, and ClearPath servo systems.
These DSP-based supplies feature tight power regulation and high
peak output to support high performance motion control. And, with
a small footprint and attractive pricing, the IPC saves on space,
weight, and machine cost as well.
IPC-3 / IPC-5 Features
75 VDC output with tight regulation, even with large peak

loads.
Dual AC input voltage ranges: 95-125VAC; 190-250VAC.

High peak output relative to continuous rating (2.5x),

optimized for servo drive peak demand requirements.
Rapid output bus discharge upon AC power removal.

Built-in, automatic regenerated power management.

Large output capacitance for reduced ripple and

increased efficiency.
Fan mounting holes provided for increased continuous

power (IPC-5 only).
IPC-5 is fully enclosed; IPC-3 is open frame.

Three year warranty.


Front Panel

Note: No user serviceable parts inside
and
Mating Components
Regen Indicator
See LED blink code
reference later in this
document for details.
DC Output
Connectors
Outputs 75VDC to your
servo drive, step drive,
or ClearPath motor.
Information LED
See LED blink code
reference later in this
document for details.
AC Line
AC Input
PE GND
Connector
(pins 6 or 7)
Accepts standard 115 VAC
and 230 VAC (nominal)
AC Line
voltage ranges.

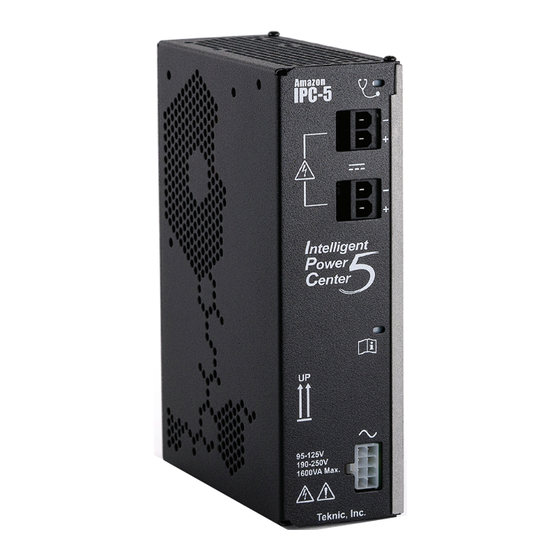

IPC-5
Amazon
DC Output
Mating Connector
2
DC Bus (V-)
1
DC Bus (V+)
AC Input
Mating Connector
5 1
6 2
7 3
I
nstall 18 AWG jumper
when wiring to 95-125VAC
8 4
Omit jumper
when wiring to 190-250 VAC
IPC-5 Power Supply
Mating Components List
Housing: Molex/44441-2002
Terminals: Molex/43375-0001
Crimp Tool: Molex/63811-7200
Cable: 14-16AWG, 600V, stranded
Mating Components List
Housing: Molex/39-01-2080
Terminals: Molex/39-00-0039
Crimp Tool: Molex/638190900
Cable: 18AWG, 300V, stranded
