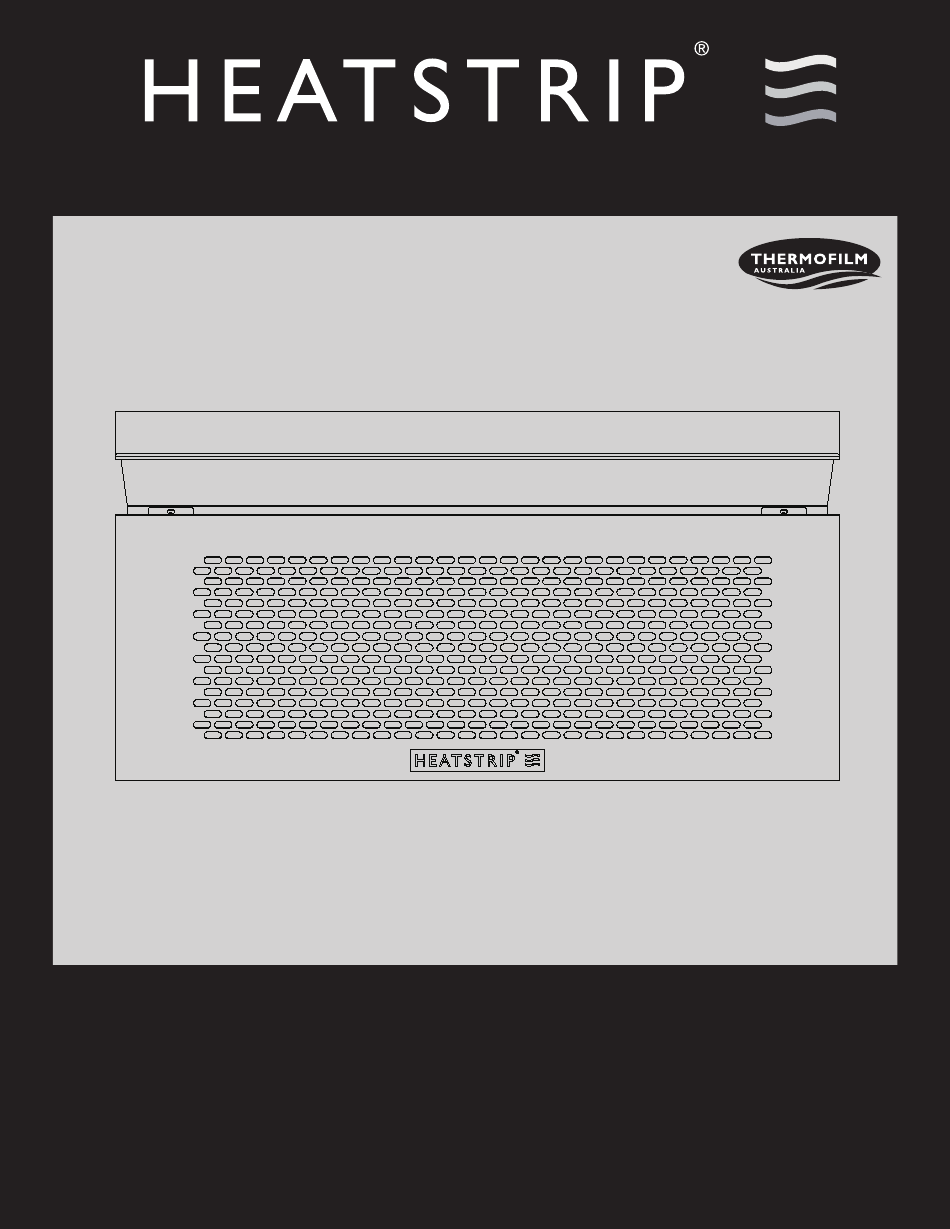

OWNER'S MANUAL
This appliance is intended for decorative purposes
Thermofilm Australia Pty Ltd
Warning: For Outdoor use only! Not for domestic use!
17 Johnston Court, Dandenong South, Victoria 3175,
Keep the instruction for future reference!
Australia
Telephone: (03) 9562 3455,
These instructions are only valid if the country symbol
Email: info@thermofilm.com.au
appears on the instruction manual and on the appliance
2020.V01
Advertisement
Table of Contents
Related Manuals for Thermofilm HEATSTRIP TGH34WL-2
Summary of Contents for Thermofilm HEATSTRIP TGH34WL-2
- Page 1 OWNER’S MANUAL This appliance is intended for decorative purposes Thermofilm Australia Pty Ltd Warning: For Outdoor use only! Not for domestic use! 17 Johnston Court, Dandenong South, Victoria 3175, Keep the instruction for future reference! Australia Telephone: (03) 9562 3455, These instructions are only valid if the country symbol Email: info@thermofilm.com.au...
-
Page 2: Table Of Contents
• Gloves are strictly recommended to be used while Index GENERAL WARNINGS moving this appliance, to protect your hands. FOR OUTDOOR USE ONLY--DO NOT OR Safty Warnings-------------------------------------1~2 • Any sealed parts by Manufacture or his agent STAND ON TABLE Warning -For your safety cannot be altered by the user. - Page 3 GENERAL WARNINGS - CONT GAS WARNINGS • Do NOT use this outdoor heater if any part has • Contact your retailer’s customer service department been under water. Immediately call a qualified for replacement parts. service technician to inspect the heater and to •...
-
Page 4: Technical Data
Technical data for TGH34WL-2 Product Name Radiant Gas Heater Model Type Wall Mounted Manufactured by Thermofilm Australia Pty Ltd Model TGH34WL Input 9.4KW (G30:684g/h, G31:672g/h) Gas Category I3+(28-30/37) I3B/P(30) I3B/P (50) Gas and G30 Butane at 28-30 mbar G30 Butane and G31... -
Page 5: Assembly Instruction
Assembly 1. Install Heat Deflector 2. Install Battery Pan Head Screw M6x10mm Qty. 3 Part # S112M06102 3. Install NG Regulator (1) Install NG Regulator (Not Provided) to 1/2” thread connector. (2) Install NG Regulator and Bracket As- sembly to heater by using 2 pre-assembly screws at the back of heater. - Page 6 Assembly 4. Install wall mounting bracket Note: Make sure this single hole at top position. 6 Self-tapping screws not less than (not provide ) 2m hight 5. Install heater to the wall mounting bracket Pin 6 x 150mm Qty. 1 Part # P05501166D R Cotter Pin Qty.
- Page 7 Assembly 6. Attach strings to heater controller Note: Red string for open; Black string for close...
-
Page 8: Connecting Gas
Heater Lighting Instructions Check for Gas Leaks Connecting gas circuit to LPG cylinder/ NG source • Keep at hand suitable crossed screwdriver, adjust- • Protect appliance from wind during lighting and Never test for leaks with an open flame. Prior to first able spanners, pliers and wrenches. -
Page 9: Maintenance And Cleaning
MAINTENANCE AND CLEANING • To enjoy years of outstanding performance from • Carbon deposits may create a fire hazard. If any carbon deposits develop, clean dome and engine your appliance, regular services of the appliance is with warm soapy water. mandatory as followings: •... -
Page 10: Troubleshooting
TROUBLESHOOTING Fault Causes Remedy (a) Air in gas line Purge gas line (b) Blockage in gas line Trace back and clear Pilot or main burner will not light (c) Igniter not sparking Repair lead, electrode, piezo or replace battery (d) Cylinder turned off Turn on (e) Cylinder empty Install full cylinder... -
Page 11: Expanded View
Parts Diagram Parts List No. DESCRIPTION PART NO. QTY. No. DESCRIPTION PART NO. QTY. Protective Guard P03351045D Micro Switch (ON) P05382007D Name Plate P00408001A Micro Switch (OFF) P05382008D Thermocouple with wire P05308007B Finger Protective Ring P055560033 Electrode with wire P02618082A Connecting Hose P03720006F Burner Assembly... -
Page 12: Warranty Term
WARRANTY TERMS Thermofilm warrants to the original owner that HEATSTRIP products will be free from defects in materials and workmanship for a period of 24 months from the date of purchase in accordance with the following warranty terms and conditions.
