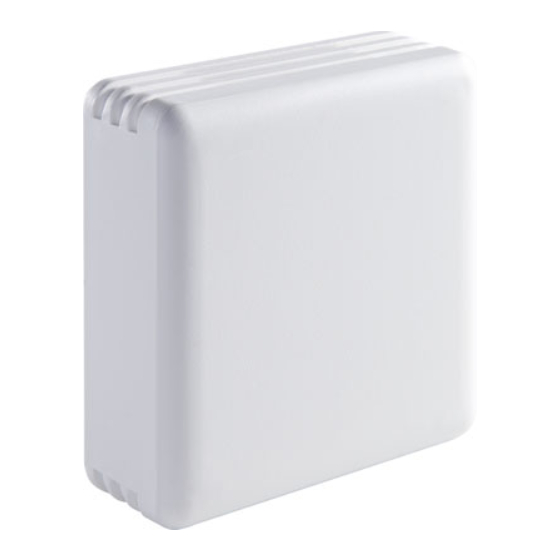

SRC KNX (32-Kanal AP)
Gateway between EnOcean and the EIB/KNX bus,
wall mounting
Operating and installation instructions
1 Overview
KNX ENO 620/622 serves as a gateway between EnOcean radio sensors and the EIB/KNX bus. It has 32 sensor
channels, each of which can be configured with one of the following functions:
Switch and touch sensor of a switch module
Various switching functions
Switching and dimming
Blind up/down
Room control unit with the following options:
Slide switch/presence key
Set value adjustment
Multiple contact switch
Humidity sensor
Window contact and window handle
Binary input
Light sensor
Presence detector
In addition, the device contains six control channels that can be connected with the communication objects of a
sensor channel or of an external EIB/KNX sensor. The following control types can be selected for each channel:
Light, continuous
Light, on/off
Temperature, continuous
Temperature, on/off
Common 2-byte-float, on/off
Common 0...255 (0...100 %), on/off
SRC_KNX_620_BMA_E_2009_10_08_001.doc
Erstellt am 12.01.2010
Program description
SRC KNX
FB-KE: 07
Rev 1
D
on-
Seite 1 von 14
Advertisement
Table of Contents
Related Manuals for Thermokon EasySens SRC-KNX
Summary of Contents for Thermokon EasySens SRC-KNX
- Page 1 Program description FB-KE: 07 SRC KNX Rev 1 SRC KNX (32-Kanal AP) Gateway between EnOcean and the EIB/KNX bus, wall mounting Operating and installation instructions 1 Overview KNX ENO 620/622 serves as a gateway between EnOcean radio sensors and the EIB/KNX bus. It has 32 sensor channels, each of which can be configured with one of the following functions: Switch and touch sensor of a switch module Various switching functions...
-
Page 2: Installation And Connection
Program description FB-KE: 07 SRC KNX Rev 1 Installation and connection The KNX ENO 620 and 622 devices differ only in the housing; their functions are identical. KNX ENO 620 has a particularly compact design. KNX ENO 622 is suitable for mounting on a recessed wall box or on material with poor radio penetration properties (e.g. -
Page 3: Learn Mode
Program description FB-KE: 07 SRC KNX Rev 1 Linking with EnOcean devices Before linking to EnOcean devices, the functions of the individual channels must be programmed with the ETS. Up to four links can be learned per channel for touch sensors, window handles and window contacts. For temperature sensors, light sensors, presence detectors and binary inputs, only one EnOcean device can be learned per channel. -
Page 4: Normal Mode
The time that defines a long keystroke can be adjusted. Switch This function can be used to evaluate different status switches, such as the Funkstuhl seat sensor, Thermokon SR- KCS transmitter for room access cards or Thermokon SR timer switch. - Page 5 Program description FB-KE: 07 SRC KNX Rev 1 Communication object for "Value": Comm. object KNX (EIB) type Size Channel … : Value 5.001 (EIS 6) 1 byte Communication object for "Scene": Comm. object KNX (EIB) type Size Channel… : Scene 18.001 (EIS 6) 1 byte Communication object for "Switch":...
-
Page 6: Temperature Sensor
The following sensor options are supported in addition to the temperature: Slide switch/presence key Some Thermokon devices have either a presence key or a slide switch. If the “ Presence key” function is selected on the ETS, pressing the key causes the gateway to send an ON telegram. - Page 7 1 bit The Thermokon devices can be equipped with a multiple contact switch with 5 stages: "AUTO", "0", "I", "I" and "III". When the switch is set to stages “ I“ , “ II“ or “ III“ , the percentage set in the parameter settings is sent as a telegram.
-
Page 8: Control Channels
Channel … : Binary input 1.001 (EIS 1) 1 bit Thermokon presence detector SR PIR 360° Thermokon presence detector SR-MDS When the detector detects motion, the gateway sends an ON telegram. It sends an OFF telegram after an adjustable time. Sending of the telegrams when motion is detected and after the adjustable time period can be suppressed using a parameter and the telegram being sent can be inverted. -
Page 9: Communication Objects
Program description FB-KE: 07 SRC KNX Rev 1 Temperature controller, continuous This controller sends value telegrams (type KNX: 5.001, EIB: EIS 6) as control values, e.g. for servo drives or fans for controlling room temperature. For each current value received by the sensor, a new control value is calculated and sent if necessary. - Page 10 The inputs of the channel can be connected to any KNX device with suitable communication objects. However, it has been optimised for operation with the Thermokon presence detector SR-MDS. Output objects of a sensor channel and the matching input objects of a control channel can be connected in the same device via group addresses.
- Page 11 Program description FB-KE: 07 SRC KNX Rev 1 The shortest send interval of the SR-MDS detector is ~1.5 min. All light value changes that are briefer than the shortest send interval and more than 10 lux are transmitted to the controller at the latest after this period and processed.
- Page 12 Program description FB-KE: 07 SRC KNX Rev 1 Switch-off delay after detection of presence: After this time elapses, the controller is switched off and either the orientation light value is output or the dimmer is switched off. Control value at start of control: The control is started with output of this value if the last received light value was below the current set value;...
- Page 13 Program description FB-KE: 07 SRC KNX Rev 1 Switch-off telegram when going beyond a value: These two parameters define the working range of the control, or the hysteresis. Attention: Not every value that can be set here can be represented via the 2-byte-float object type. It is important to check the values at the which the controller actually switches.
- Page 14 Program description FB-KE: 07 SRC KNX Rev 1 Figure 5: Application example: heating controller Application example: light controller Another example of how to use this system to save energy is the light control system based on KNX ENO 620/622, as shown in the next figure. By parameterising the device accordingly, an energy saving function can be implemented in which the user can switch on the light as needed.
