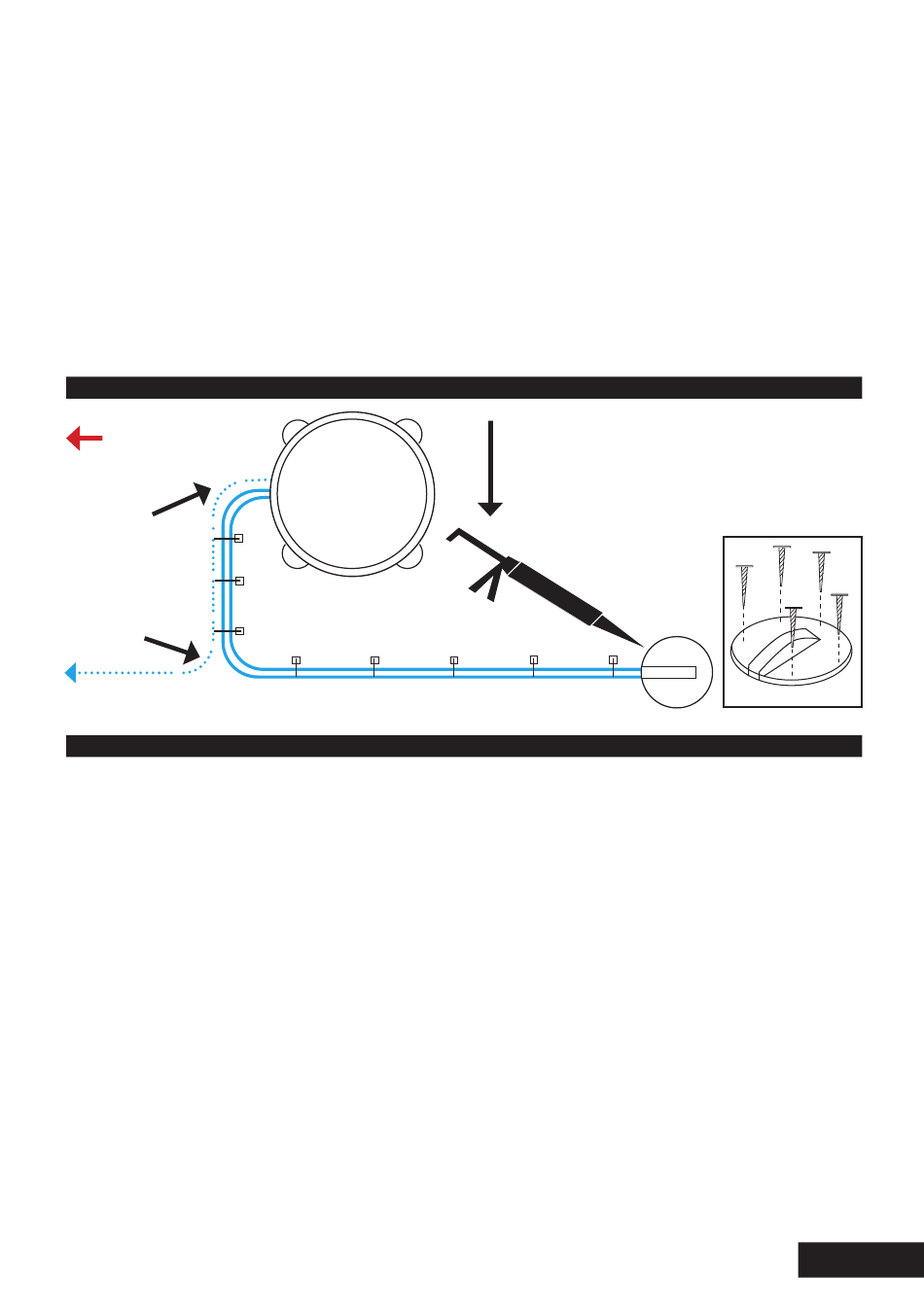

We recommend the cable entry is fixed
with fasteners and sealant/adhesive.
Apply sealant/adhesive to cable entry
hole drilled into roof. Ensure roof surface
is clean and dry and apply sealant/
adhesive to the face of the flange on the
cable entry cover. Now apply cover firmly
to roof. Secure cable to vehicle roof using
cable clips or alternatively use trunking.
REAR OF VEHICLE
HECK DES CARAVANS
No sharp bends
in wiring
Das Kabel darf nicht
über scharfe Kanten
verlegt werden
Or to optional auxiliary receiver
Optional/ zweiter Receiver
Verkleben Sie die Dachdurchführung
ebenfalls mit Sicaflex. Stellen Sie sicher
das die Montagestelle fettfrei und eben
ist. Um das Kabel am Dach entlang zu
routen verwenden Sie einen Kabelschacht
oder Kabelclips.
Edge of roof Dachkante
Vudome
Auto
Edge of roof Dachkante
IMPORTANT
Sealant must be roof compatible
WICHTIG !
Die Verklebung muss kompatible mit der Dachhaut
sein wie z.B. Sicaflex.
