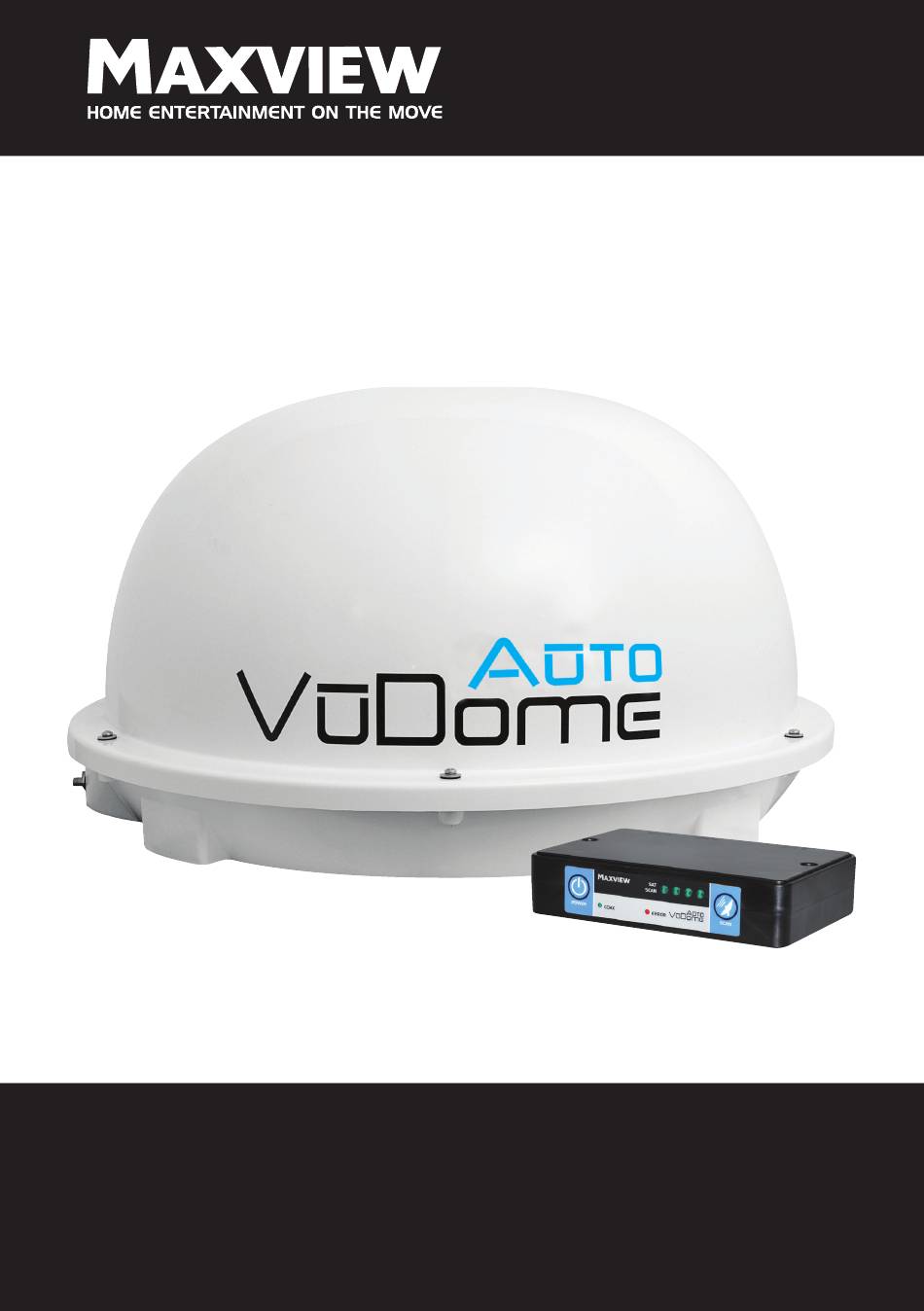

- Page 1 MXL011 VUDOME AUTO OWNERS MANUAL BEDIENUNGSANLEITUNG UK - Keep these instructions for future reference. DE - Bitte bewahren Sie diese Anleitung gut auf.
- Page 2 Thank you for purchasing this product, should you have any difficulty using your Fixed Satellite System please contact our friendly Customer Helpline on (01553) 811000. The VuDome Auto Satellite System is easily configured to lock onto the appropriate satellites necessary to receive your favourite TV channels.
- Page 3 This pack includes: Dieses Packet enthält: • Antenna Unit • VuDome - Auto • VuDome Auto Control Panel • VuDome - Auto Steuerbox • 1 x 10m ‘F’ to ‘F’ Cables • 1 x 10m Koax-Kabel • 1 x 4.5m ‘F’ to ‘F’ Cables •...
-
Page 4: Important Safety
Important Safety Wichtige Sicherheitshinweise Do not open the cover of the unit. No Öffnen Sie nicht den Domedeckel der user-serviceable parts inside. To open the Sat-Antenne. Die Antenne arbeitet cover cancels the guarantee of the unit. wartungsfrei. Wenn Sie den Deckel öffnen Refer to an authorised dealer. - Page 5 Introduction Producktvorstellung The VuDome Auto Satellite System Die VuDome Auto 1) The Dome (Antenna) Unit 1) Die Antenne die sich auf dem located on the roof of the vehicle. Fahrzeugdach befindet. Note: A TV and satellite receiver will Achtung: Sie benötigen zur in...
- Page 6 Dome location Montageplatz Decide where you wish to mount your Wählen Sie den Montageplatz so aus das VuDome, taking into account any obstacles die VuDome freie Sicht zum Satelliten hat that might interfere with the tracking of the und nicht durch Dachaufbauten wie z. B.: satellite.
- Page 7 Dach. Als Schablone dienen die fastener position on the roof. Befestigungsfüße an der VuDome Auto. 4. Apply the adhesive to the underside of 4. Sicaflex auf der Unterseite der each fixing area (as shown). We always Befestigungsfüße auftragen (wie...
- Page 8 IMPORTANT! WICHTIG! Fill ends of coax cables with Versiegeln Sie die Enden supplied dielectric grease. der Koax-Kabel mit dem Coax connections should mitgelieferten Fett. be secure. Koax-Stecker müssen fest DO NOT OVER TIGHTEN! verschraubt werden. Verwenden Sie beim festziehen der F-Stecker kein Werkzeug.
- Page 9 We recommend the cable entry is fixed Verkleben Sie die Dachdurchführung with fasteners and sealant/adhesive. ebenfalls mit Sicaflex. Stellen Sie sicher Apply sealant/adhesive to cable entry das die Montagestelle fettfrei und eben hole drilled into roof. Ensure roof surface ist. Um das Kabel am Dach entlang zu is clean and dry and apply sealant/ routen verwenden Sie einen Kabelschacht adhesive to the face of the flange on the...
- Page 10 If the unit is properly connected, the COAX light should flash for 10 seconds before turning solid. This indicates the VuDome Auto is ready to search for satellites. If the ERROR light appears, there is a problem with your connection, please see troubleshooting. You will also notice, 1 of 4 SAT SCAN lights will flash 3 times.
-
Page 11: Operation
Operation The UK VuDome Auto is preset to Astra 2, this means your system is ready to search for your favourite UK channels. (The European VuDome Auto is preset to Astra 1, this means European users can also immediately search for their favourite channels.) In most cases your pre-set satellite will be the one you wish to search for, in this case, please skip to the SCAN section now (turn over). - Page 12 Die Bedienung Die VuDome - Auto ist werksseitig auf ASTRA1 eingestellt d.h. die VuDome Auto ist bereit den Satelliten zu suchen In den meisten Fällen ist Ihr zweiter Lieblingssatellit, den Sie suchen möchten, auch voreingestellt. In diesem Fall fahren Sie mit dem SCAN Abschnitt fort wie auf der nächsten Seite beschrieben.
- Page 13 This process can take up to 10 minutes, however in most cases will be considerably less. Once the VuDome Auto has located a satellite, the SAT SCAN lights will stop cycling and the light representing the satellite programmed to search will turn solid. This confirms that the desired satellite has been located.
- Page 14 Note: You will not need to rescan your VuDome Auto on exiting standby mode unless the antenna has been moved. To power off your VuDome Auto. Hold down the POWER button for 3 seconds. All lights will turn off. The system can now be disconnected.
- Page 15 Satellite Reception/Satellitenempfang While the system is operating a faint Während der Einstellung des Satelliten motor sound can be heard, this is normal. Ist der Motor zu hören, dass ist normal. Satellite reception is only possible when Satellitenempfang Ist nur möglich wenn the dome is positioned so that it has Sie eine freie Sicht zum Satelliten haben.
- Page 16 Footprint Maps/Ausleuchtzone The footprint of a satellite is the ground area where the signal is available and determines the satellite dish size required to receive each transponder’s signal. The footprints below show areas in which this 37cm dish can receive signals when used with a compatible satellite receiver.
- Page 17 30 days after date of manufacture. Only Maxview will perform warranty evaluations and repairs. If it is determined that the unit needs to be returned to Maxview, the customer must return COMPLETE product, to: Customer Services, Maxview ltd, Common lane, Setchey, King’s lynn, Norfolk, PE33 0AT...
-
Page 18: Terms And Conditions
• The product has been installed without the use of a Maxview mounting bracket designed for the product. • Repairs have been made or attempted by others that are not certified by Maxview to do such repairs. • Repairs are required because of normal wear and tear. - Page 19 2. Use caution when carrying the antenna. Always carry the antenna by the handle. 3. Do not remove the cover of the antenna or VuDome Auto Control Box. Doing so is not recommended by the manufacturer and will void the limited warranty.
- Page 20 Certification & Environment/CE-Konfirmationserklärung UK MARK FOR EUROPE The CE mark which is attached to these products means it conforms to the EMC (ElectroMagnetic Compatibility) Directive. Products marked with the crossed out wheely bin must not be disposed of with normal household waste but made available for separate household collection. Separate collection of used products and their packaging allows materials to be recycled and used again.
- Page 21 None of the lights on No power to the control box Verify power supply is properly the control box will connected to VuDome Auto Box. turn on. Verify power supply is plugged into a 12V power source. ERROR light and SAT The satellite could not be located, Turn off control box.
- Page 22 Sicht zum Satelliten. wo sie eine bessere Sicht zum südlichen Himmel hat. • Der Untergrund ist zu uneben auf Stellen Sie die VuDome dem die VuDome Auto steht. Auto auf einen ebeneren Untergrund. • Der Untergrund ist Stellen Sie die VuDome möglicher weise zu instabil.
- Page 23 Page 23...
- Page 24 Maxview’s Customer Helpine on 01553 811000. Alternatively email us on support@maxview.co.uk or write to us... Maxview ltd, Common lane, Setchey, King’s lynn, Norfolk, PE33 0AT. DE - Kundendienst Wenn Sie irgendwelche Problem mit der Sat-Antenne haben oder Fragen haben bitte kontaktieren Sie uns unter +49 (0) 8145 9969980.
