U-Line H-4810 Quick Start Manual

H-4810, H-4811

LOCKER LOCKS

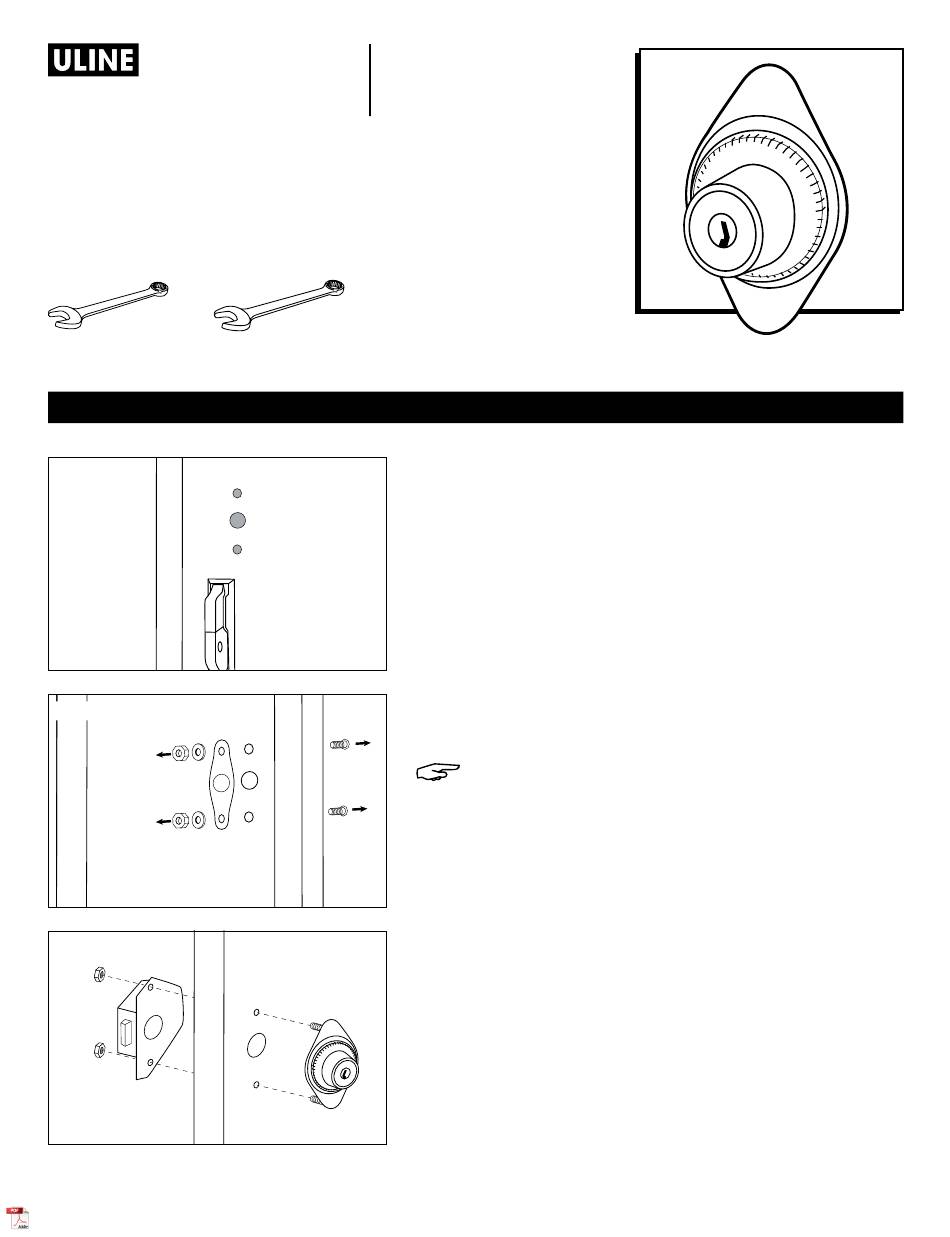

TOOLS NEEDED

7mm Wrench
Figure 1
Figure 2
Figure 3
PAGE 1 OF 3
1-800-295-5510
uline.com
8mm Wrench

INSTALLATION

1. Above the handle on the front of the locker, locate the three
2. Open door. From inside, remove the two nuts and washers
3. To install locker lock, set dial at 0 and remove rear mounting
circular indents. The middle circle will be larger than the top
and bottom circles. (See Figure 1)
holding on the steel plate using a 7mm wrench. Remove the
two bolts from the front. (See Figure 2)
NOTE: For Six Tier Uline Industrial Lockers, steel plate is
attached to door with rivets. To remove, use a power drill
and drill bit to drill out the two rivets holding on the steel
plate.
plate of locker lock. Put rear mounting plate up against the
inside of the locker door and the front of the lock up against
the outside of the door. Push the two pieces together so that
mounting bolts stick out through the mounting plate. Secure
with nuts and tighten using an 8mm wrench. (See Figure 3)
Para Español, vea página 2.
Pour le français, consulter la page 3.
0521 IH-4810
