Installation

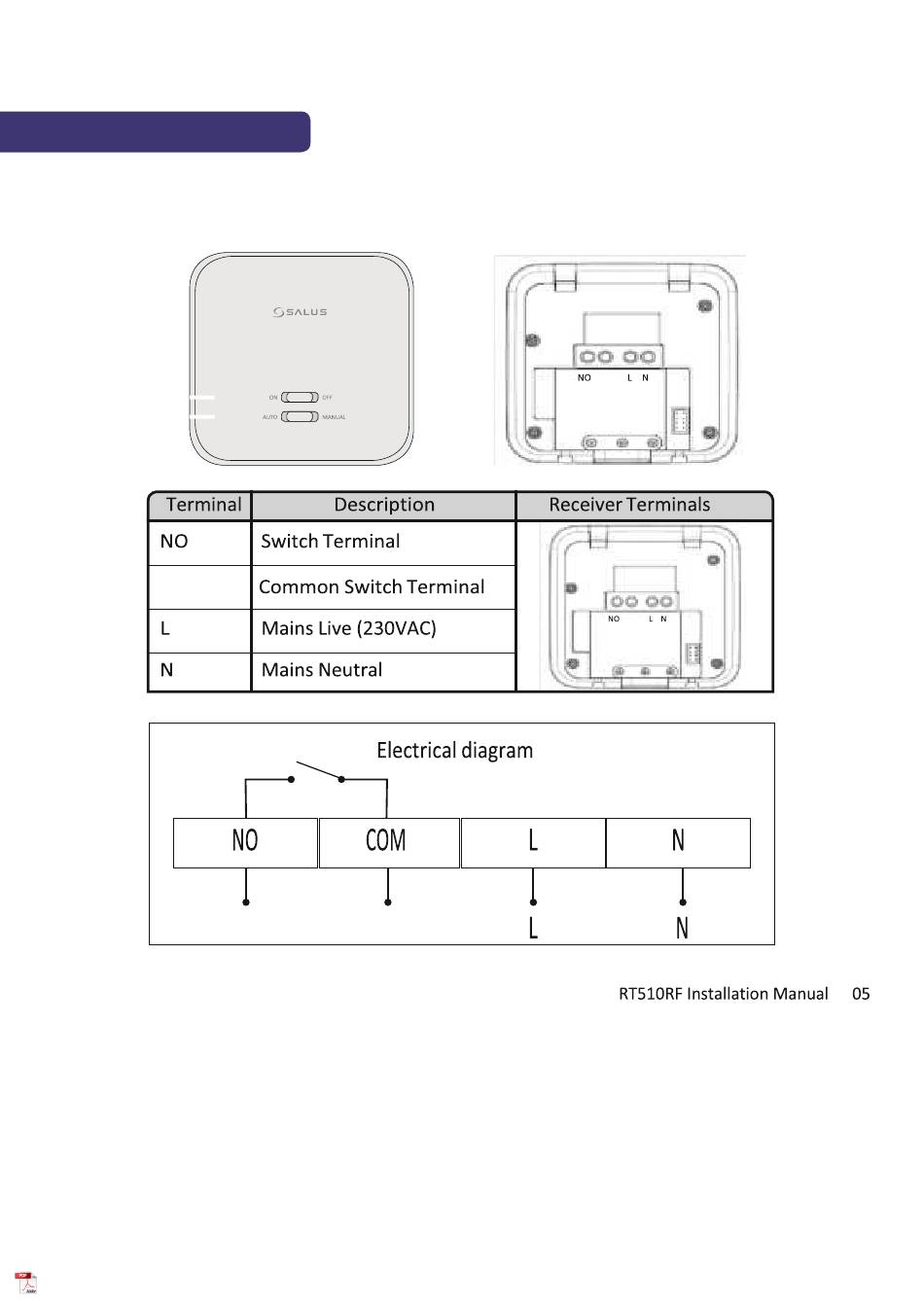

1. RXRT510 Receiver
Unscrew the backplate of the RXRT510 receiver in order to do the wiring connections. After that please
switch the receiver ON.
COM
COM
COM
