ORIGINAL USER'S MANUAL
Carefully read these instructions before starting
to skid with your log winch!

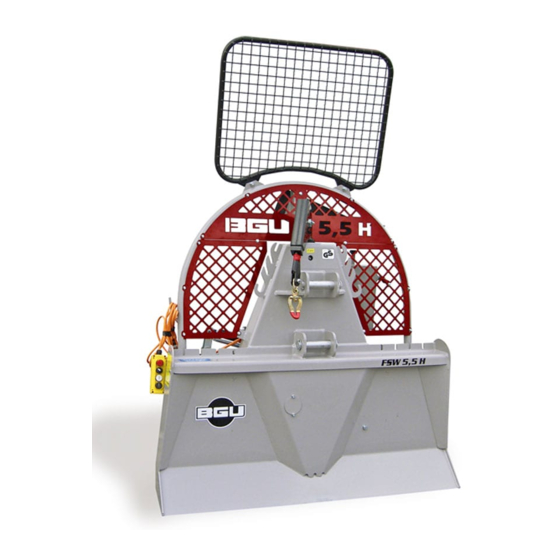

Logging winch
FSW 5.5 H Evolution
(hydraulic version)
Südharzer Maschinenbau GmbH
Helmestraße 94 ∙ 99734 Nordhausen/Harz
Zentrale:
Internet: www.bgu-maschinen.de
e-mail: info@bgu-maschinen.de
03631/6297-0 ∙
-111

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSW 5.5 H Evolution and is the answer not in the manual?

Questions and answers

Related Manuals for BGU FSW 5.5 H Evolution

Summary of Contents for BGU FSW 5.5 H Evolution

  • Page 1 ORIGINAL USER’S MANUAL Carefully read these instructions before starting to skid with your log winch! Logging winch - Setup & instal FSW 5.5 H Evolution lation - Use - Maintenance (hydraulic version) - Accessories Südharzer Maschinenbau GmbH Helmestraße 94 ∙ 99734 Nordhausen/Harz Zentrale: 03631/6297-0 ∙...

  • Page 2: Table Of Contents

    CONTENTS GENERAL INFORMATION About this manual Delivery and transport claims SAFETY PICTOGRAMS AND WARNING LABELS SAFETY Mandatory application field 4. PTO-POWERED OPERATION 5. OPERATION Tractor requirements 5.2. Attaching the winch to your tractor Positioning the drawbar to the PTO shaft Wire rope installation 5.4.1 Unwinding the wire rope 5.4.2 Checking the wire rope quality...
  • Page 3 14. FSW 5.5 H, ExploDED VIEW 15. FSW 5.5 H, Spare PART LIST 16. OPERATION TIPS FOR NEW WINCHES 17. EC STATEMENT OF COMPLIANCE...

  • Page 4: General Information

    GENERAL INFORMATION Dear customer, Thank you very much for your trust and preference in choosing our equip- ment and joining the number of our best customers in the world. We are confident that our equipment will be up to all your expectations and assu- re you a long lasting quality and performance.
  • Page 5 Have the truck driver accept your claim by hand signing it. Should your shipper or the truck driver refuse to accept your claim and countersign the delivery bill, fully reject delivery and make sure to inform us (the manufacturer) immediately. No claims shall be taken into account by the shipper or by the insurance company, if a reserva- tion note is not made on the delivery bill.

  • Page 6: Safety Pictograms And Warning Labels

    “Disconnect the winch, read and comply with manufacturer’s maintenance instructions.” " 6. Identification label „Product identification“ This label shows the company details of the manufacturer and the main machine technical data. 7. Identification label „BGU-Maschinen” manufacturer’s logo 8. Operator’s safety label „Wear steel-toe safety shoes”...

  • Page 7: Safety

    SAFETY Strictly perform installation, set-up, maintenance, cleaning and transportation of the winch with the power switched off and all moving parts motionless against accidental operation. The user shall strictly comply with these operation, set-up, mainte- nance, repair and trouble-shooting instructions in order to assure safe operation and no damages to the equipment.

  • Page 8: Mandatory Application Field

    • Do not stand in the dangerous area. Assure that nobody stands inbetween winch and tractor, unless the tractor is safely braked and blocks have been put underneath the wheels to avoid accidental moving. • Do not remove nor start handling timber before the winch has come to a complete stop.
  • Page 9 • CAUTION: it is very dangerous to stand in front of a tree to be felled and winched away. (Figure 1) Fig. 1 Fig. 1 Fig. 1 Fig. 1 Fig. 1 Fig. 1 Fig. 1 Fig. 1 Fig. 1 Fig. 1 Fig.

  • Page 10: Pto-Powered Operation

    4. PTO-POWERED OPERATION Use only and strictly CE approved drivelines duly connected and secured in compliance with the manufacturer’s instructions. • Never use a PTO driveline without safety shield or with a damaged guard. • Make sure that the shield is of the correct size and length for the drive shaft and is duly mounted on it. •...

  • Page 11: Positioning The Drawbar To The Pto Shaft

    In order to transfer torque from the tractor to the winch you must use a driveline with torque overload clutch coupler. Mount the winch to the tractor and then secure the stabilisers underne- ath the lower hitch points. Finally incline the winch by approximately 20° using the upper hitch bar.

  • Page 12: Unwinding The Wire Rope

    Fit the rope into the special groove and tighten the screw (Pos. 9). Now start spooling as described under pulling procedures. In order to avoid possible rope damages keep winding up for a while after complete spooling of the entire rope length, as described under section “Spooling of the wire rope”. 5.4.1 Unwinding the wire rope After you have correctly installed the winch, you can start unwinding the rope.

  • Page 13: Adjusting The Wire Extension Force

    5.4.3 Adjusting the wire extension force The wire extension force must set accurately, so that the drum stops at once when pulling no longer occurs. This will avoid dangerous drooping and sagging of the wire rope. To adjust the wire extension form: •...

  • Page 14: Clutch

    5.6.1 Clutch Before attempting any intervention, make sure to first switch the tractor engine off and remove the ignition key! Proper clutch settings will ensure optimum pull force. The clutch is set by the manufacturer during final testing of the product before shipment. However, possible wear of the lining may require some extent of adjustment as the time passes.

  • Page 15: Stretching Of The Drive Chains

    6. 7 Fig. 8 Fig. 9 5.6.4 Stretching of the drive chains After the first operation hours you possibly experience some extent of release of the drive chain that will then need to be restretched. Therefore you need to check the chain after the first 10 operation hours for the first time and then regularly every 60 operation hours.

  • Page 16: Checking The Hydraulic Oil Level

    Lubricate the drive chain every 40 operation hours. Use grease suitable for high temperature (it should not melt as common low-price lithium grease) in order to prevent grease contamination of the sliding clutch surfaces. Accurately clean the chain before greasing. Make sure to avoid contamination of the clutch lining with grease as this may lead to a significat loss of the pull force and to early wear of the clutch plates that will then need to be replaced!

  • Page 17: Troubleshooting

    Troubleshooting Trouble description Possible origins Remedies No winch response when • The winch drives are damaged • Check the winch drives (the driveline pressing the buttons or must be duly connected for the pump to engaging the plug of the operate) and ensure that there is enough control panel or the radio oil in the tank...

  • Page 18: Repairs And Maintenance

    Trouble description Possible origins Remedies Rope is hardly • Wrong setting of the pull force • Seilauszugskraft nachstellen spooling off • Damaged rope • Damaged brake band (collar) • Seil wechseln • Bremsband wechseln The rope reels in even • Wrong setting of the clutch •...

  • Page 19: Effects Of Overload And Misuse

    What to do? When to do? How to do? • Spool the rope out until 3-4 winds • Only for new winches visually are left on the drum and strongly • Always when the rope is loose pull with load on •...

  • Page 20: About Hydraulic Oil

    About hydraulic oil Periodically check the oil level inside the hydraulic oil tank. When doing so, accurately avoid contaminating the tank with dirt, wood chips, sow dust etc... Make sure that the winch never runs without oil or with a low oil level. When this hap- pens, air is likely to reach inside the hydraulic loop.

  • Page 21: Disposing Of An Obsolete Winch

    DISPOSING OF AN OBSOLETE WINCH When the winch is fully obsolete and cannot be of any longer use, it should be duly dismounted ahead of discarding. Certain components need deactivation and dismantling in order to assure that no further use is made by other parties and that no worn out parts are recycled for other applications.

  • Page 22: Hydraulic Diagram

    HYDRAULIC DIAGRAM Pos. Description Pos. Description Oil tank Non-return valve Control valve Throttle (2 mm) Drum hydraulic cylinder Directional control valve 4/3 Hydraulic brake cylinder Pressuregauge Hydraulic accumulator Filter Hydraulic pump Vent Pressure relief valve...

  • Page 23: Technical Specifications

    TECHNICAL SPECIFICATIONS Technical data Unit of mea- FSW 5,5 H surement Max. skidding capacity Cable winch speed at 300 RPM of the 0,60 PTO shaft Rope length (compacted) Rope diameter Rope tensile strength Max cable rewind length m/mm 130/9 ; 105/10 with compacted steel rope Tractor power requirements kW/PS...

  • Page 24: Wiring Diagram

    10. WIRING DIAGRAM...

  • Page 25: Other Areas Of Possible Dangers

    11. OTHER AREAS OF POSSIBLE DANGERS 11.1 Mechanical dangers Possible dangers related to machine moving parts are minimized by means of suitable safeties and protections that cannot be dismounted unless special tools and equipment is used. WARNING: skidding without due safety devices might result into seri- ous injures to the operator or the other person around the workplace.

  • Page 26: Legal Warranty

    12. LEGAL WARRANTY All BGU machines are covered with warranty terms in accordance with the law. Customers should promptly notify the manufacturer eventual material or production claims on their detection. While asking for war- ranty service, customer should show copy of their purchase invoice or receipt.
  • Page 27 14. FSW 5.5 H, EXPLODED VIEW...
  • Page 28 15. FSW 5.5 H, SPARE PART LIST Pos. Description Pos. Description WELDED STEEL CONSTRUCTION SMALL SHIELD MAIN AXLE SCREW M8X16 TO DIN 933 SPROCKET ASSEMBLY w. CLUTCH BOLT Ø25 W. COTTERS ROPE DRUM BOLT Ø28 W. COTTERS BRAKE COLLAR SAFETY SHIELD SPACER SLEEVE SCREW M12X30 TO DIN 933 PRESSURE SPRING...
  • Page 29 Pos. Description Pos. Description TANK PLUG LOCKING GROOVE M10 DIN 985 SCREW M10X30 TO DIN 933 LOCKING GROOVE M12 DIN 985 WASHER Ø10,5 TO DIN 125A WASHER Ø28/ Ø13 NUT M10 TO DIN 934 COMPRESSION SPRING HYDRAULIC ACCUMULATOR SOCKET ROLLER CHAIN 1“ 16B1 PLUG ADAPTER 1“...
  • Page 30 16. OPERATION TIPS FOR NEW WINCHES Before putting your new winch to work make sure to read the user's manual and get familiar with all operation and safety instructions con- tained in the manual. • Spool the rope off making sure to leave 3 to 4 coils on the drum •...
  • Page 31 DIN EN ISO 14492-1, DIN EN ISO 4254-1 Authorised Representative: Jörg Kernstock (Director) Südharzer Maschinenbau GmbH Helmestraße 94 ∙ 99734 Nordhausen/Harz Service-Tel. 03631/6297-104 ∙ Fax 03631/6297-111 Internet: www.bgu-maschinen.de e-mail: info@bgu-maschinen.de Nordhausen, Date 28.05.2011 Date Jörg Kernstock (Director) Official user language: English (User’s release)
  • Page 32 Südharzer Maschinenbau GmbH Subject to changes Helmestraße 94 ∙ 99734 Nordhausen/Harz Service-Tel. 03631/6297-104 ∙ Fax 03631/6297-111 Form: 2102.28.05.2011 - Rev. A Internet: www.bgu-maschinen.de e-mail: info@bgu-maschinen.de...
