WEARING THE WATCH
FOR THE FIRST TIME
Before being worn for the first time, or if it has
stopped, a Rolex watch must be wound manually
in order to function correctly and precisely.

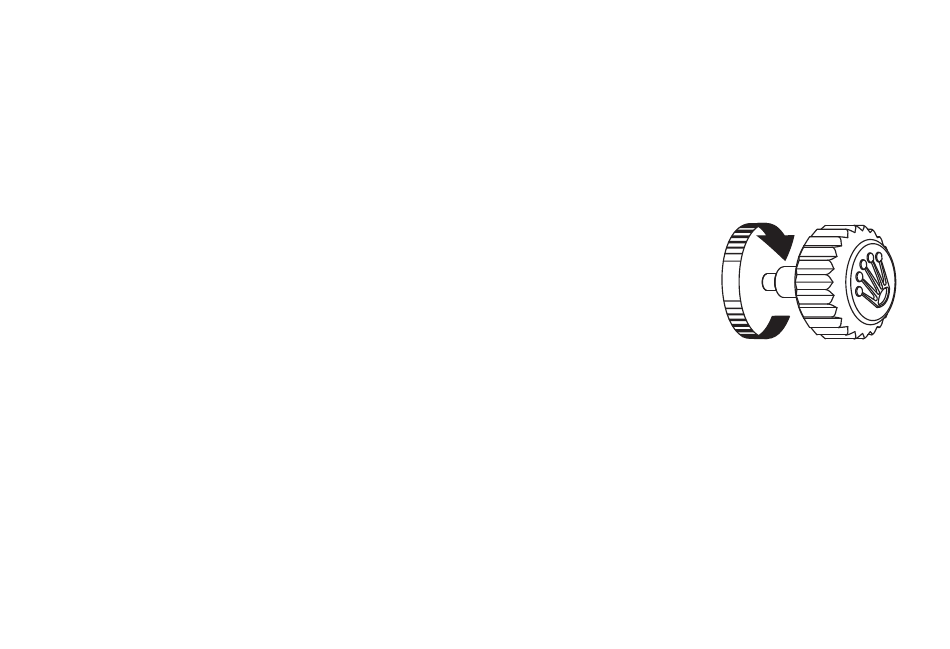

To wind the watch manually, unscrew the winding
crown completely, then turn it several times
clockwise. (Turning in the other direction has
no effect.) A minimum of 25 turns is required for
adequate partial winding. The watch will then
be wound automatically as long as it is worn on
the wrist. Carefully screw the crown back down
against the case to ensure waterproofness.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Oyster Perpetual EXPLORER II and is the answer not in the manual?

Questions and answers

Related Manuals for Rolex Oyster Perpetual EXPLORER II

Summary of Contents for Rolex Oyster Perpetual EXPLORER II

  • Page 1 WEARING THE WATCH FOR THE FIRST TIME Before being worn for the first time, or if it has stopped, a Rolex watch must be wound manually in order to function correctly and precisely. To wind the watch manually, unscrew the winding crown completely, then turn it several times clockwise.
  • Page 2 The green seal accompanying your Rolex watch is a symbol of its status as a Superlative Chronometer. This exclusive designation attests that it has successfully undergone a series of specific final controls by Rolex in its own laboratories in addition to the official COSC certification of its movement.
  • Page 3 THE HEART OF THE EXPLORER II MODEL OYSTER PERPETUAL EXPLORER II DISTINCTION BETWEEN DAY AND NIGHT OR SECOND TIME ZONE USING YOUR WATCH OVERVIEW SETTING THE WATCH 10-21 EASYLINK COMFORT EXTENSION LINK 22-23 ROLEX SERVICE CARING FOR YOUR ROLEX 24-25...
  • Page 5 YOUR WATCH SERVICE OYSTER PERPETUAL EXPLORER II The Oyster Perpetual Explorer II is the by a crown guard that is an integral watch of choice for explorers. Thanks part of the middle case. The sapphire to a 24-hour display by means of an crystal, with a Cyclops lens at 3 o’clock,...
  • Page 6 THE HEART OF THE USING ROLEX EXPLORER II MODEL YOUR WATCH SERVICE DISTINCTION BETWEEN DAY AND NIGHT OR SECOND TIME ZONE The Explorer II’s additional, 24-hour When the Explorer II shows the time in hand circles the dial once every...
  • Page 7 If the Explorer II displays the time in two time zones simultaneously, the reference time is indicated on the graduated bezel by the 24-hour hand. Local time is shown by the conventional hour and minute hands. In both cases, the minutes are always displayed by the conventional minute hand.
  • Page 8 THE HEART OF THE USING ROLEX EXPLORER II MODEL YOUR WATCH SERVICE OVERVIEW Hour hand Minute hand Seconds hand 24-hour hand Date window 24-hour graduated fixed bezel Twinlock winding crown with double waterproofness system...

  • Page 10: Setting The Watch

    THE HEART OF THE USING ROLEX EXPLORER II MODEL YOUR WATCH SERVICE SETTING THE WATCH Screwed-down position (position 0) Manual winding (position 1) The crown is completely screwed down The crown is unscrewed. To wind against the case. When the crown...
  • Page 11 Unscrew After every use, carefully screw the crown back down against the case to guarantee the waterproofness. Return the crown to position 1 and apply light pressure on it while screwing it down clockwise against the case. The crown should never be unscrewed underwater.
  • Page 12 THE HEART OF THE USING ROLEX EXPLORER II MODEL YOUR WATCH SERVICE TIME WITH DISTINCTION – Set the 24-hour hand (against the 24-hour graduated bezel) and BETWEEN DAY AND NIGHT the minute hand (against the dial) 1. Setting the 24-hour hand by turning the crown in either direction.
  • Page 13 Unscrew and then pull out After every use, carefully screw the crown back down against the case to guarantee the waterproofness. Return the crown to position 1 and apply light pressure on it while screwing * Time in 24-hour format (distinction it down clockwise against the case.
  • Page 14 THE HEART OF THE USING ROLEX EXPLORER II MODEL YOUR WATCH SERVICE 2. Setting the date and the hour hand – Set the hour hand by turning the crown in either direction. The hour (crown in position 2) To set the date and the hour hand, follow hand moves in increments of one hour.
  • Page 15 Push in, then screw down After every use, carefully screw the crown back down against the case to guarantee the waterproofness. Return the crown to position 1 * Time via conventional hands: 10.10 am and apply light pressure on it while screwing Time in 24-hour format (distinction it down clockwise against the case.
  • Page 16 THE HEART OF THE USING ROLEX EXPLORER II MODEL YOUR WATCH SERVICE DUAL TIME ZONE FUNCTION – Set the reference time using the 24-hour hand (against the graduations on the 1. Setting the reference time bezel) and the minute hand (against...
  • Page 17 Unscrew and then pull out After every use, carefully screw the crown back down against the case to guarantee the waterproofness. Return the crown to position 1 and apply light pressure on it while screwing it down clockwise against the case. The crown * Reference time (Geneva) in 24-hour format: 10:10 should never be unscrewed underwater.
  • Page 18 THE HEART OF THE USING ROLEX EXPLORER II MODEL YOUR WATCH SERVICE 2. Setting the date and the local time – Set the local time by turning the crown in either direction. The hour hand (crown in position 2) To set the date and the local time, follow moves in increments of one hour.
  • Page 19 Push in, then screw down After every use, carefully screw the crown back down against the case to guarantee the waterproofness. Return the crown to position 1 * Local time (Geneva) and apply light pressure on it while screwing via conventional hands: 10.10 am it down clockwise against the case.
  • Page 20 THE HEART OF THE USING ROLEX EXPLORER II MODEL YOUR WATCH SERVICE Adjusting the local time – Set the local time by turning the crown in either direction. The hour hand (crown in position 2) To adjust the local time only (without moves in increments of one hour.
  • Page 21 Unscrew and then pull out After every use, carefully screw the crown back down against the case to guarantee the waterproofness. Return the crown to position 1 * Local time (New York) and apply light pressure on it while screwing via conventional hands: 4.10 am it down clockwise against the case.
  • Page 22 SERVICE EASYLINK COMFORT EXTENSION LINK To ensure optimal comfort when wearing your watch, Rolex created the Easylink comfort extension link. Its exclusive design comprises a link that is pulled out or folded back on itself to adjust the length of the bracelet by approximately...
  • Page 23 Adjusting from the short position Adjusting from the long position to the long position to the short position...
  • Page 24 YOUR WATCH SERVICE CARING FOR YOUR ROLEX Thanks to Rolex expertise, your watch You can help preserve its lustre by will require very little day-to-day care. cleaning it occasionally with a microfibre cloth. You can also wash the case and bracelet from time to time using soapy water and a soft brush.
  • Page 25 Before cleaning your watch, always ensure that the crown is screwed down properly against the case to guarantee waterproofness.

  • Page 26: After Sales Service

    To guarantee continued Those that no longer meet Rolex accuracy and waterproofness, Rolex requirements are systematically replaced recommends that you periodically return by new components. The movement your watch to an Official Rolex Retailer or is lubricated on reassembly. The case...
  • Page 27 At the end of the process, your Rolex watch undergoes a series of tests to verify its functions, waterproofness and power reserve, as well as the precision of its movement.
  • Page 28 SERVICE WORLDWIDE SERVICE NETWORK The network of Official Rolex Retailers For a list of Official Rolex Retailers and and Service Centres covers more than Service Centres, please visit rolex.com. 100 countries around the world and draws on the expertise of highly skilled watchmakers, carefully selected and trained by Rolex.
  • Page 29 ROLEX.COM We invite you to visit rolex.com, a privileged place to learn more about the functions of your Rolex watch and about the quality, know-how and fundamental values of the brand. Welcome to the world of Rolex.
  • Page 30 Rolex reserves the right to modify the models illustrated in this publication at any time. © Rolex SA, 3-5-7, rue François-Dussaud, 1211 Geneva 26, Switzerland IMR-EXII-EN-21 - 4.2021 - Printed in Switzerland rolex.com...
