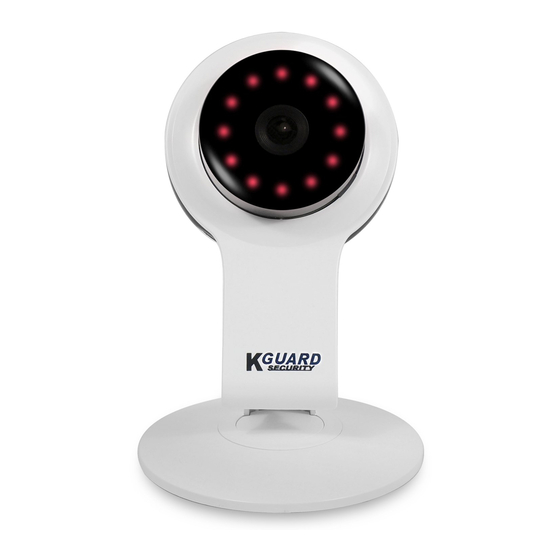

KGuard Security QRT-502 Manual

Ap connection mode

Table of Contents

Download this manual

When your QRT-502 is failed to connection via SMART LINK mode (default), we

conjecture that, there is an incompatibility issue with your wireless router and SMART

LINK, when this happens, we suggest you switch connection mode from SMART LINK

to AP.

Switch QRT-502 to AP Mode：

Before switching, please reset QRT-502 (see video guide for reset:

https://www.youtube.com/watch?v=FENJGdE-vIY&feature=youtu.be

Using a pin tool, insert and hold in the reset hole for 5-6 seconds, when the blue status LED starts

blinking with a second interval, it means QRT-502 is switched to AP mode and ready for connection

setup.

Connection Setup for Smartphone/Tablet：

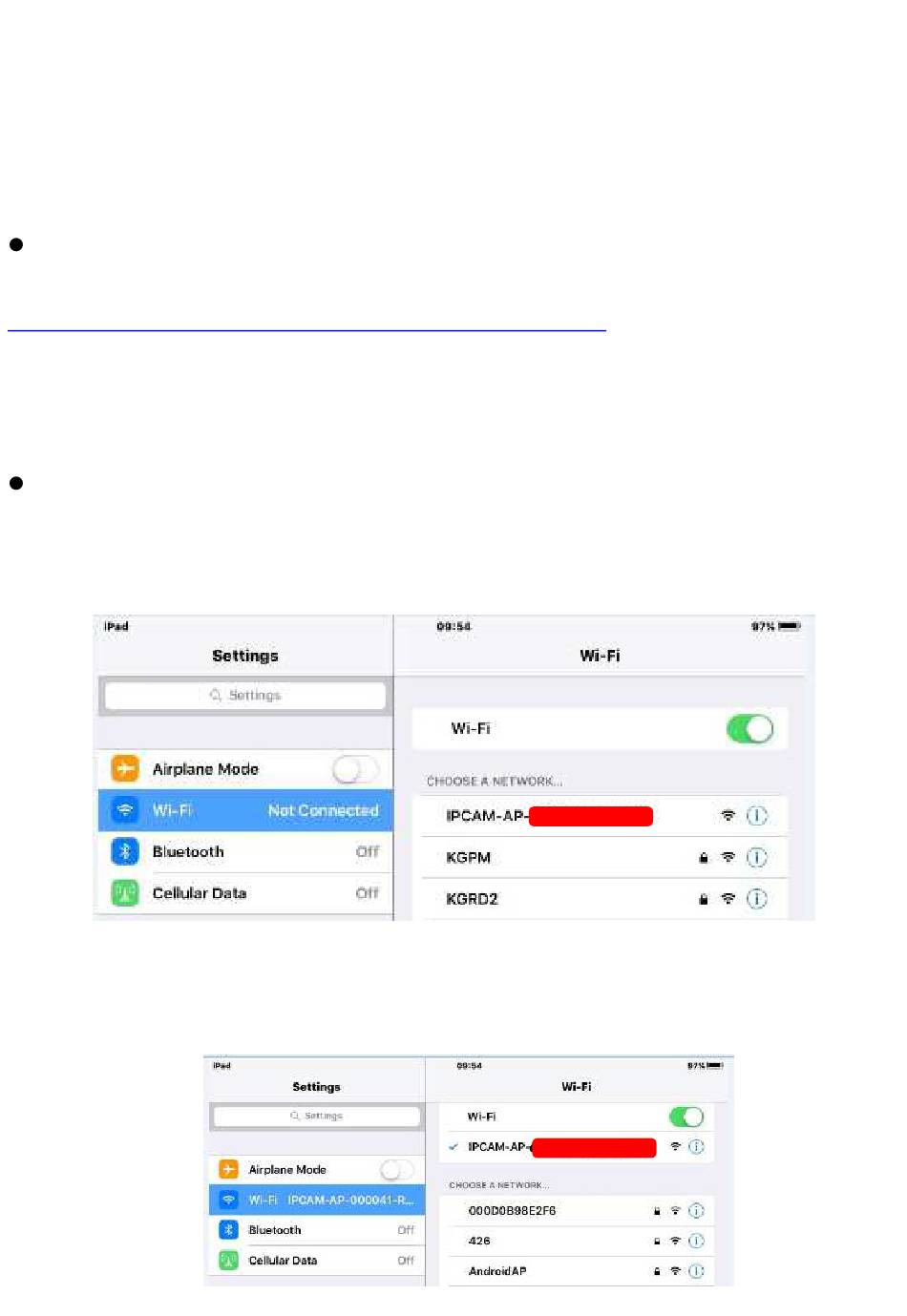

Step 1: Switch your smartphone/tablet to Wi-Fi mode, search Wi-Fi network, and the SSID of

QRT-502 (IPCAM-AP-00XXXX-XXXX) will show up on the list.

Step 2: Configure the SSID of QRT-502 (IPCAM-AP-00XXXX-XXXX) as your Wi-Fi network AP (no

password required).

QRT-502 AP connection Mode

Table of Contents

Do you have a question about the QRT-502 and is the answer not in the manual?

Page 1 Using a pin tool, insert and hold in the reset hole for 5-6 seconds, when the blue status LED starts blinking with a second interval, it means QRT-502 is switched to AP mode and ready for connection setup. Connection Setup for Smartphone/Tablet：...
Page 2 Step 3: Open “KViewCam” on your smartphone / tablet. Step 4: Click “Add camera”. Step 5: Click “LAN Search”. Step 6: Select QRT-502 (KGCG-XXXXXX-XXXXX).
Page 3 Step 7: Enter the default password: admin → Click “Done”. Step 8: Make sure your QRT-502 is online, Click “ ” Step 9: Click “WIFI Setting”.
Page 4 WiFi Setting is done, please wait for seconds until the camera in “Online”. Please wait for 10-15 seconds until you hear a “Ding-Dong- Ding-Dong” from QRT-502, it means the WiFi setting is successful; meanwhile, the blue status LED will stop blinking.
