OPERATION MANUAL
Carefully read these instructions
before starting and using your saw!

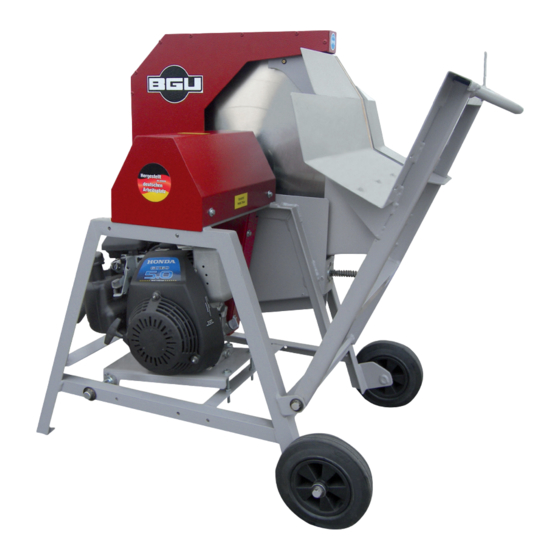

LOG SAW
WK 600 B CLASSIC
Südharzer Maschinenbau GmbH
Helmestraße 94 ∙ 99734 Nordhausen/Harz
Zentrale:
Internet: www.bgu-maschinen.de
e-mail: info@bgu-maschinen.de
03631/6297-0
6297-111
Advertisement
Table of Contents
Related Manuals for BGU WK 600 B CLASSIC
Summary of Contents for BGU WK 600 B CLASSIC
- Page 1 OPERATION MANUAL Carefully read these instructions before starting and using your saw! LOG SAW Set-up & instal- WK 600 B CLASSIC lation Maintenance Accessories Made in Ger- many Südharzer Maschinenbau GmbH Helmestraße 94 ∙ 99734 Nordhausen/Harz Zentrale: 03631/6297-0 6297-111 ...
-
Page 2: Table Of Contents
HANDLING AND Transport DISPOSAL Technical Data 9.1 Noise emissions 10. TROUBLE-SHOOTING CHART 11. OTHER AREAS OF POSSIBLE HAZARD 11.1 Mechanical dangers 11.2 Environmental dangers 12. WARRANTY 13. SPARE PARTS for WK 600 B classic 14. CE – STATEMENT OF COMPLIANCE... -
Page 3: General Information
GENERAL INFORMATION Dear customer,thank you very much for your trust and preference in choosing our equipment and joining the number of our best custo- mers in the world. We are confident that our equipment will be up to all your expectations and assure you a long lasting quality and perfor- mance. - Page 4 All transport damages including hidden ones must be notified within latest 2 days from delivery. Therefore delivery must be collected and inspected within this term. Later claims shall be disregarded. In case of assumed but not visually clear transport damages make su- re to mark the following sentence on the delivery bill: „Reserved de- livery due to assumed transportation damages.“...
-
Page 5: Product Overview
PRODUCT OVERVIEW 2.1 Log-saw with gasoline engine Upper hood Saw blade Rear grip-handle Log carriage Gasoline engine Wheels Stand... -
Page 6: Decal Listings
DECAL LISTINGS 1. Warning label „Do not operate the machine in- doors!“ Never run the machine inside a closed area. Exhaust fumes are toxic! 2. Aufkleber Safety pictogram „Wear ear plugs and goggles!“ Loud noise can cause impairment or loss of hearing, wear a suitable protective device such as ear plugs and safety goggles. - Page 7 Lock the tool and secure it against acciden-tal start.“ This safety label reminds users of a pinched hands danger. 9. “BGU-maschinen” Manufacturer’s logo 10. Identification label „Product identification“ This label shows the company details of the manufacturer and the main machine technical data.
-
Page 8: Safety Rules
SAFETY RULES Strictly perform installation, set-up, maintenance, cleaning and transportation with the motor switched off and the blade firmly secured against accidental operation. Immediately disconnect power off the machine in case of any eventual fault or trouble. Before operating the saw for the first time read and familiarize with the instructions of the engine manufacturer! The user shall strictly comply with these operation, set-up, mainte- nance, repair and trouble-shooting instructions in order to assure safe... -
Page 9: Safety Rules About Saw Blade
● Do not apply pressure (for instance by means of the wood stock) against the blade to make it come to a quicker stop. ● The machine is not designed for indoor use (dust release). ● NEVER leave the machine unattended with the running motor. ●... -
Page 10: Operation
OPERATION This log-cutting saw model WK 600 B Classic is ideally recommended for stationary use in your yard. A rugged all-steel construction assures longest machine life at any operative condition. This machine is equipped with inbuilt gasoline engine for independent power provision. -
Page 11: Repairs And Maintenance
REPAIRS AND MAINTENANCE Make sure that the machine is fully disconnected and all mo- ving parts are secured before performing any maintenance/re- pair work on the machine. In the event of any malfunctioning, switch the machine off before trouble-shooting. 6.1 First maintenance after initial start-up Check and tighten all fixation elements after 1 operation hour, in or- der to avoid damages to the motor. -
Page 12: Ordinary Maintenance
6.2 Ordinary maintenance The following tasks belong to ordinary maintenance works: ● Clean the machine from eventual residual wood, chips or dirt. ● Lubricate all moving parts. ● Grease all pivoting parts of the log carriage 6.3 Cleaning after use Remove wood chips and saw dust produced and left on the machine during work. -
Page 13: Tensioning And Replacing The V-Belt
6.5 Tensioning and replacing the V-belt If you are operating a WK 600 B model, proper maintenance requires re-tensioning of the belt after a certain number of operation hours. To perform stretching of the V-belt, you need adjusting the special regulation screw located underneath the gearbox cover. Release the engine mount fixation and adjust the V-belt so that you can still provoke an approx. -
Page 14: Handling And Transport
HANDLING AND TRANSPORT These log & timber cutting saws are light equipment that can be easily moved on short-distance by means of two caster wheels and an ergonomic, comfortable grip handle located on the chassis on the opposite side as the log carriage. In order to avoid infringement of the clearance area around the machine, the grip handle can be swivelled up and down on the model WK 600B. -
Page 15: Technical Data
TECHNICAL DATA Technical data Unit/Mea- WK 600 B Classic sure Max. timber diameter 195 (7.6 in) Saw blade diameter 600/30 Power of gasoline engine Engine speed 3600 Saw blade speed 1780 Length 900 (35.4 in) Width 680 (26.7 in) Height 1030 (40.5 in) -
Page 16: Trouble-Shooting Chart
10. TROUBLE-SHOOTING CHART The following section will detail procedures for checking your saw, should you encounter a malfunction. Before setting, operating, cleaning, maintaining or repairing the processor, read the manufacturer’s operating and mainte- nance instruction manual. Type of trouble Possible causes Remedies The machine does not - Faulty engine... -
Page 17: Warranty
12. WARRANTY All BGU machines are covered with warranty terms in accordance with the law. Customers should promptly notify the manufacturer eventual material or production claims on their detection. While asking for war- ranty service, customer should show copy of their purchase invoice or receipt. -
Page 18: Spare Parts For Wk 600 B Classic
13. SPARE PARTS FOR WK 600 B CLASSIC... - Page 19 Description Code Dimensions Pos. Steel stand assembly 24661 Log carriage assembly 20531 20977 Upper saw hood, assembly Saw arbor, complete assembly 24678 Cover for saw arbor assembly 24685 24688 Grip handle, assembly 24681 V-belt casing 1 V-belt casing 2 24682 Angle plate for V-belt casing 24683 24684...
- Page 20 Description Code Dimensions Pos. M10x80 Hex screw 54467 51478 M12x30 Hex screw M12x45 Hex screw 51481 End plate 10612 51987 M6 L=19 (3-5,5) D=9 Blind rivet nut Spring washer 51706 51552 7380 M8x25 Hexagon socket button head screws M8x45 Hex screw 52134 9021 Washer...
-
Page 23: Ce - Statement Of Compliance
This statement of compliance does not apply to customer modifications of the equipment without manufacturer‘s prior written approval. Log saw Machine type: WK 600 B Classic Models: Production No.: see Machine Identification Plate Applicable European Standards:... - Page 24 Subject to changes without notice Südharzer Maschinenbau GmbH Helmestraße 94 ∙ 99734 Nordhausen/Harz Service-Tel. 03631/6297-104 ∙ Fax 03631/6297-111 Internet: www.bgu-maschinen.de Form: 2044.10.01.2011 - Rev.D e-mail: info@bgu-maschinen.de...
