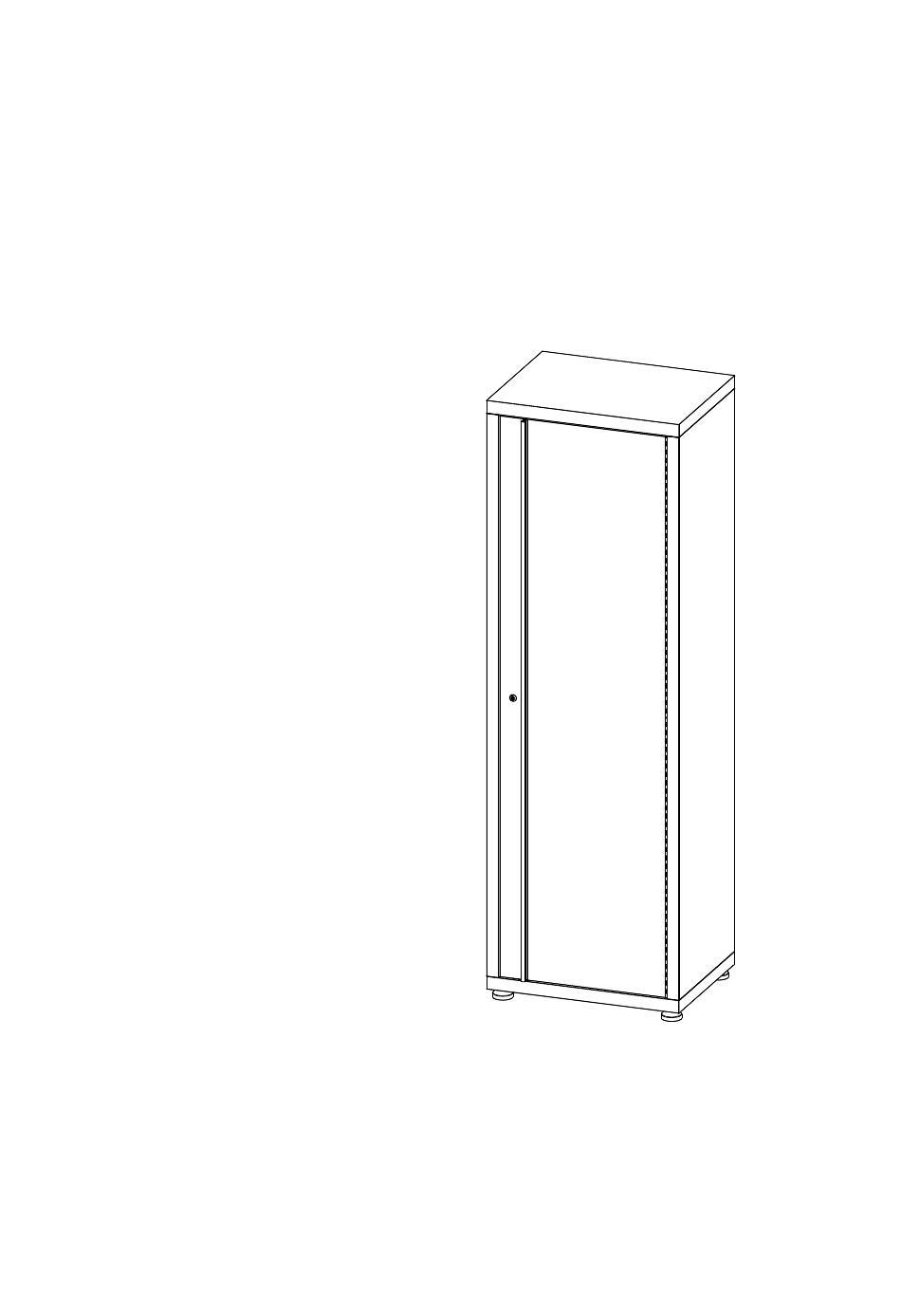

USE AND CARE GUIDE

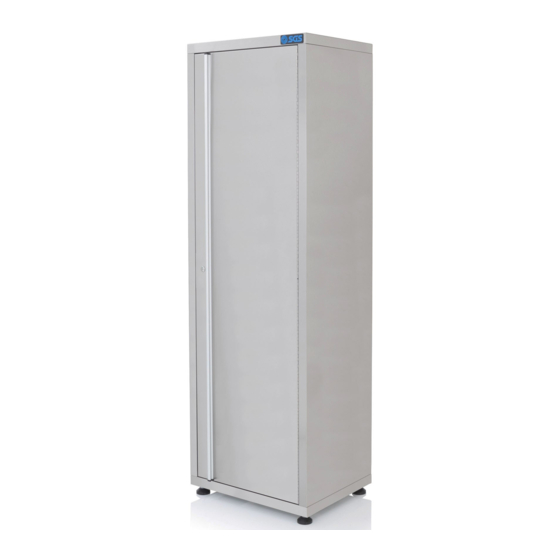

24 IN.STORAGE CABINET
Due to continuing improvements,
the actual product may differ slightly
from the product described herein.
WARNNING
Failure to follow these guidelines can result in property damage or personal injuries.
This product is not recommended for outdoor use.
Strongly recommend at least two adult people to assemble this unit.
Advertisement
Table of Contents
Related Manuals for SGS STC7200S
Summary of Contents for SGS STC7200S
- Page 1 USE AND CARE GUIDE 24 IN.STORAGE CABINET Due to continuing improvements, the actual product may differ slightly from the product described herein. WARNNING Failure to follow these guidelines can result in property damage or personal injuries. This product is not recommended for outdoor use. Strongly recommend at least two adult people to assemble this unit.
- Page 2 Explosive Drawing Part Description Part Description Quantity Quantity Bottom panel Shelf Left panel Adjustable feet Right panel Shelf bracket Top panel Left reinforcement Back bottom panel Right reinforcement Back middle panel Round Head Bolt 1/4" X 14mm Back top panel Flat head bolt 5/32"...
- Page 3 Assembly Instructions Note: Assemble on a flat surface. A piece of cardboard is recommended to keep the product from being scrashed during assembly. INSTALL THE ADJUSTABLE FEET Install the 4 pcs adjustable feet to the bottom panel,make sure that all the feet completely fit into the bottom panel. ATTACH THE LEFT PANEL AND LEFT REINFORCEMENT TO THE BOTTOM PANEL Attach the left panel and left reinforcement to the bottom panel with 8 pcs 1/4”X14 mm round head bolt.
- Page 4 Assembly Instructions ATTACH THE RIGHT PANEL AND RIGHT REINFORCEMENT TO THE BOTTOM PANEL Attach the right panel and right reinforcement to the bottom panel with 8 pcs 1/4”X14 mm round head bolt.
- Page 5 Assembly Instructions ATTACH THE BACK PANEL AND TOP PANEL Attach the back panels to the back of the cabinet from bottom up with 27 pcs 1/4”X14mm round head bolt. X 27 ATTACH THE TOP PANEL Attach the back panels to the side panels and top back panel with 11 pcs 1/4”X14mm round head bolt. X 11...
- Page 6 Assembly Instructions INSTALL THE SHELVES Isnsert 16 pcs shelf brackets into the slots on the side panels at the desired heights.make sure the 4 pcs brackets for each shelf are at the same height. Place the Shelves over the shelf brackets, and push them down onto the shelf brackets Make sure the shelves are properly and safely locked by the upright hooks on the shelf brackets...
- Page 7 The cabinet can be reach to 1860 mm ( 73.2 inch) height , you can adjust the adjustable feet counterclockwise to reach your desired height. 1850 mm-1860 mm 72.8-73.2 in Care and Maintenance 1. Use a soft,clean cloth that will not scratch the surface when dusting. 2.
