Dimensions:

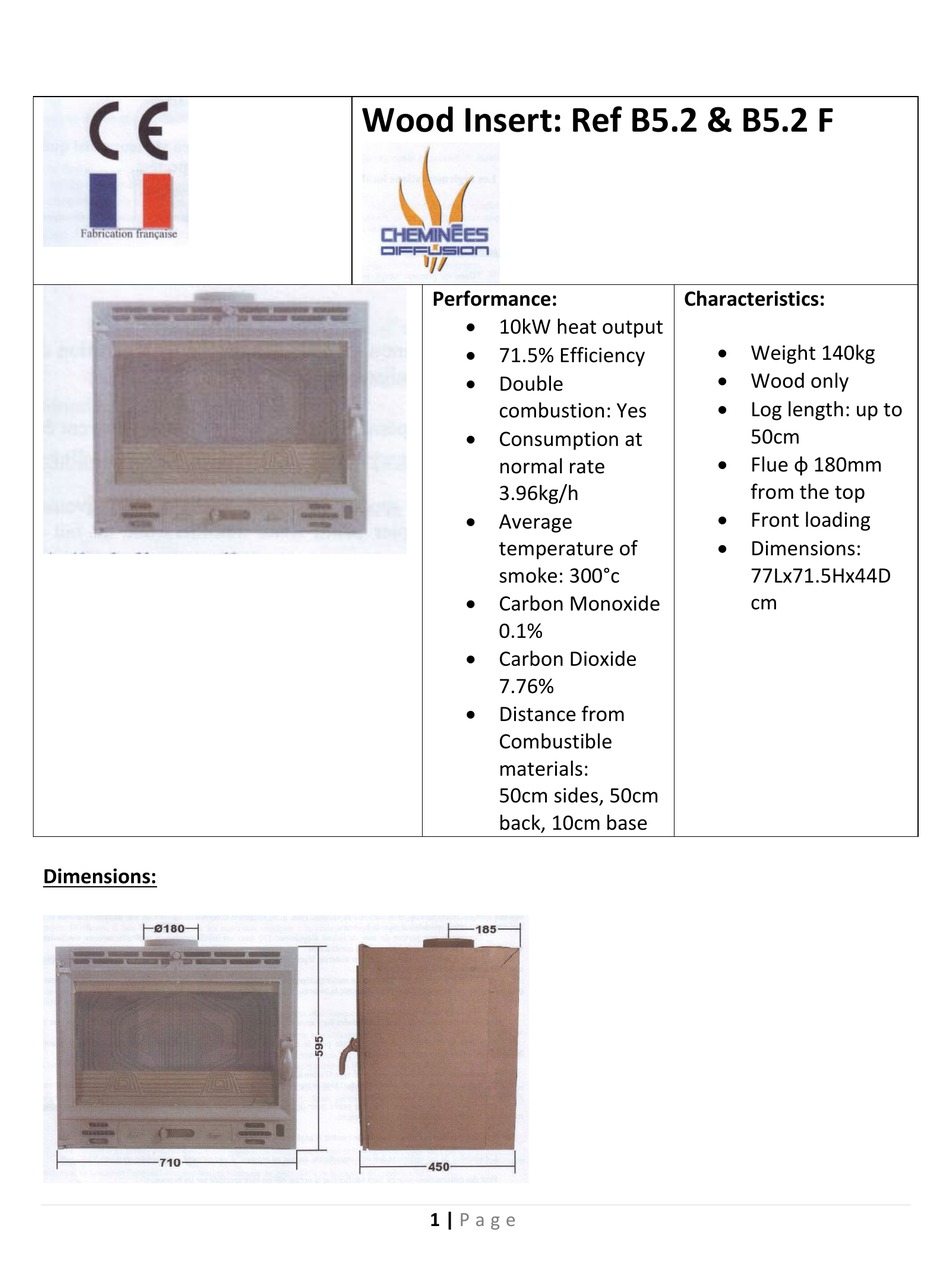

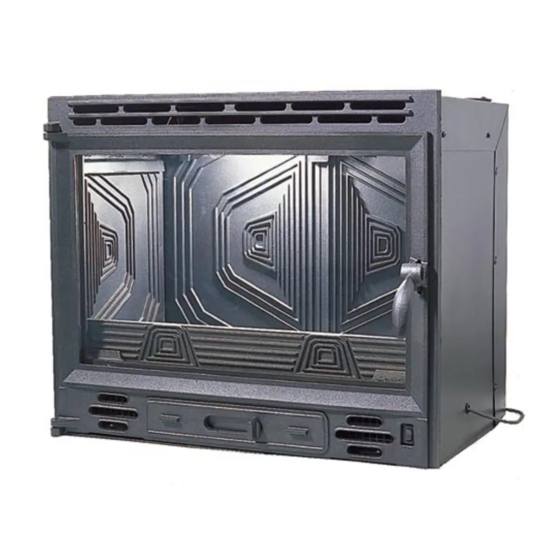

Wood Insert: Ref B5.2 & B5.2 F
Performance:
 10kW heat output
 71.5% Efficiency
 Double
combustion: Yes
 Consumption at
normal rate
3.96kg/h
 Average
temperature of
smoke: 300°c
 Carbon Monoxide
0.1%
 Carbon Dioxide
7.76%
 Distance from
Combustible
materials:
50cm sides, 50cm
back, 10cm base
1 |
P a g e
Characteristics:
 Weight 140kg
 Wood only
 Log length: up to
50cm
 Flue φ 180mm
from the top
 Front loading
 Dimensions:
77Lx71.5Hx44D
cm

Advertisement

loading
Need help?

Need help?

Do you have a question about the B5.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Godin B5.2

Summary of Contents for Godin B5.2

  • Page 1 Wood Insert: Ref B5.2 & B5.2 F Performance: Characteristics:  10kW heat output  Weight 140kg  71.5% Efficiency  Wood only  Double  Log length: up to combustion: Yes  Consumption at 50cm  Flue φ 180mm normal rate from the top 3.96kg/h...
  • Page 2 Thank you for purchasing a GODIN fireplace insert. This appliance was designed and thoroughly tested in order to ensure total satisfaction to our customers. Yet an appropriate installation will be necessary, and an appropriate flue outlet connected to a chimney, which will guarantee sufficient draught flow capacity. It is of course preferable that this appliance be installed by an installation professional, who knows of all relevant codes of practice and safety regulations and can guarantee flawless installation.
  • Page 3 3. Installation and connection: a. For security reasons and good functioning of the unit, it is imperative that any building norms are adhered to with regards to installation, insulation and connection of the flue. b. Recommended insulation material, which is readily available, is rockwool. A 30mm thickness with a density of 80kg/m3 is recommended.
  • Page 4 a. All material used must be non flammable or otherwise suitably insulated. b. The supporting beam should also be positioned using a suitably heat resistant mortar- mix. This supporting beam should be fixed to the rear wall, which will create stability for the whole convection box.
  • Page 5 Fresh air circulation in the room: The unit should be installed in a room where there is sufficient fresh air. If the house has been built to particular norms where it is essentially air tight (double glazing, etc) then it is imperative that an external arrival of air into the room is allowed for by means of a ventilation grid situated at the same height as the unit and with a cross sectional area of at least 200cm²...

  • Page 6: Operation

    Simplified circuit diagram: 7. Operation: The motors that are used are self-protecting. They cool themselves down with the air that they take in from the room. They are protected thermostatically: they come on automatically at high speed when the temperature below the fire chamber reaches 80°C. They may come on at any time as soon as this temperature is reached.

  • Page 7: Recommendations For Operation

    Motor characteristics: Current 230V Frequency 50Hz Power per motor Rotations speed 1 600rpm Rotations speed 2 1750rpm Circulation volume 83m³/hr RECOMMENDATIONS FOR OPERATION: Before using the unit, if there has been wet works/ building operations necessary for installing the unit, it is recommended to wait 4 weeks for the building work to dry. In light of this it is also recommended that the first fires lit are moderate in nature for the first 10 days of use.
  • Page 8 When loading the unit, the air intake must be opened and then the door can be unlatched. The door should be opened slowly and wait a few moments before opening it completely in order to avoid blowback (smoke coming back into the room). Never use water to put out the fire.
  • Page 9 In order to ensure the proper functioning of your unit, it is recommended that your entire chimney and flue installation is swept by a professional annually. Operation of the B5.2 This unit must be used with the door closed. One must always pay attention to the burning of your unit, in order to get the best results from it.
  • Page 10 A note about the electrical fan connection: If the unit has fans, it is important that the electrical supply to the unit is always on. This is imperative as the fans will automatically come on as a protective measure when they get hot – even if the two way switch on the unit is in the off position.
  • Page 11 211013151 180mm spigot 243123152 Damper 141663258 Top panel 114133258 Bolt TH M8 x20 ZN black 00001301145 Air damper shaft 157243258 Parts list for B5.2 Part description Body 22507315897 Fire chamber support panel 303673151 211013151 Raised top panel 114133152 Deflector 201313151...
  • Page 12 Decorative fire box panel rear RHS B55284 Decorative fire box panel rear LHS B55283 Fire box panel RHS B55285 Fire box panel LHS B55296 Log retainer B55295 Handle 5155 Air control 5156 Air control knob 5157 180mm spigot 243123152 Damper 241663258 Bolt TH M8x20 ZN black 1301145...

  • Page 13: Warranty Conditions

    WARRANTY CONDITIONS Any warranty is subject to: correct installation, use and maintenance of the unit. Parts that are in direct contact with high temperatures and that could undergo distortions caused by wear and tear are guaranteed for 1 year. This includes: 1.
  • Page 14 2. Guide plates, air channels and fire-bricks. 3. Door hinges and handles. 4. Fans and thermostats. Wood-burning Inserts and closed fireboxes have a 5 year warranty excluding all the parts (as described above) that are in direct contact with high temperatures, where it is 1 year.

This manual is also suitable for:

B5.2 f
