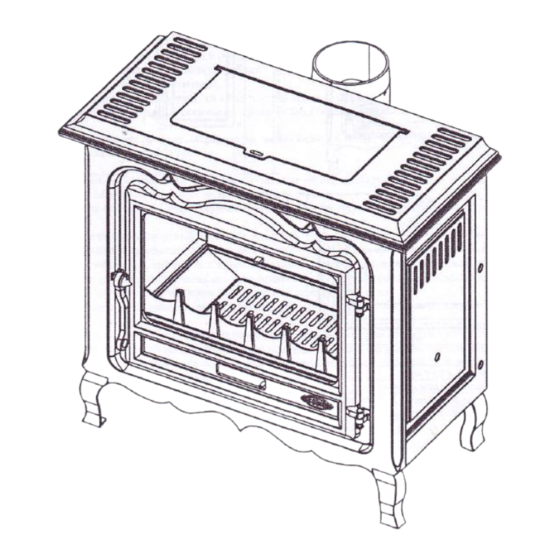

REGENCE REF: 3145
COMMON SPECIFICATIONS
INSTRUCTIONS OF INSTALLATION
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3145 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Godin 3145

Summary of Contents for Godin 3145

  • Page 1 REGENCE REF: 3145 COMMON SPECIFICATIONS INSTRUCTIONS OF INSTALLATION...

  • Page 2: Technical Characteristics

    LINE DRAWING FOR REGENCE REF: 3145 TECHNICAL CHARACTERISTICS REF: 3145 Dimensions (W/D/H) 78.6cm x 37cm x 71.1cm Foyer Dimensions 53cm x 28cm x 24cm Diameter of Outlet 153 diameter Fuel type Wood Loading from the front Logs of 50cm Nominal kW Output 9.5kW...

  • Page 3: Chimney & Connection

    Figure 1 GENERAL PRINCIPLES OF CONNECTION FOR REAR AND TOP FLUE OUTLETS (WHERE POSSIBLE) CHIMNEY & CONNECTION The condition of the chimney flue is of prime importance. It will determine the final result: to ensure constant supply of primary air to the heater and extraction of the burned gasses. Most problems experienced are due to a defect of the chimney.
  • Page 4  The height must not be lower than 5 meters, with a reasonable upper clearance in fresh air of 0.40m, minimum above the pitch of the roof or from any other obstacle at a distance of less than 8 meters from the conduit. ...

  • Page 5: Lighting And Operation

    IMPORTANCE OF FUEL  The Godin heater has a thermal output of about 73.5%, therefore they should give full satisfaction. The said value corresponds to the best performances.  Remember that any heater can only give off the amount of energy contained in the fuel used.

  • Page 6: Maintenance

    Keep even after guarantee period has expired. The installer will be able to supply all necessary parts and proceed with repairs, Never use spare parts that do not originate from the GODIN factory. Never try and modify the heater without authorisation.

  • Page 8: Warranty Conditions

    In cases the repair or replacement reveals to be too expensive compared to the price of the appliance, the decision to replace or to repair the appliance is to be taken by Godin after sales service only.
  • Page 9 Godin SA will not be responsible for any installation, assembly, dismantling costs and consequential removal of the appliance. Consequently Godin SA, cannot be held responsible for any materials loss or human accidents, being a result of incorrect installation non – observing the legal provisions and regulations (for example, lack of ground connection, incorrect draft of the chimney etc...)
