User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-X924-Q221V1
dedicated KVM switch and rackmount screen technology

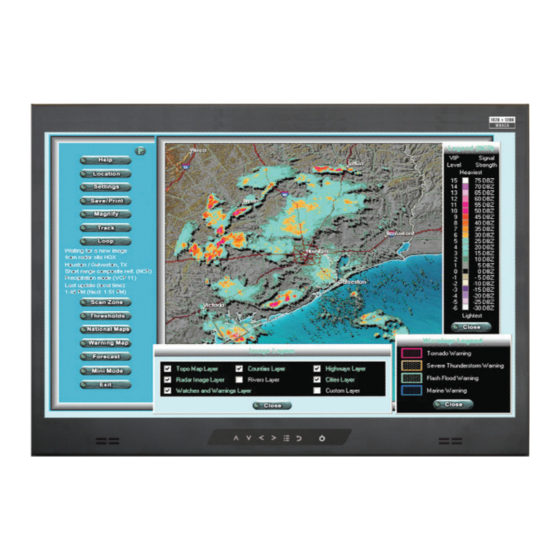

24" WUXGA 1920 x 1200 LCD
RP-X924
9U Rackmount Display Panel
Options :
- SDI / MCS
- Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CyberView RP-X924
Summary of Contents for CyberView RP-X924
- Page 1 KVM switch and rackmount screen technology User Manual 24” WUXGA 1920 x 1200 LCD RP-X924 9U Rackmount Display Panel Options : - SDI / MCS - Audio - Touchscreen / DC power - MIL-type or lockable connector Designed and manufactured by Austin Hughes UM-CV-751-RP-X924-Q221V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-X924-Q221V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-X924 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 < Part. 2 > Specifications / OSD / Remote Controller Product Specifications P.5 - 6 On-screen Display Operation ( OSD ) P.7 - 8... - Page 4 Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your microfiber cloth first, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-X924-Q221V1 www.austin-hughes.com...
-
Page 5: Part. 1 > Rp-X924
< Part 1 > < 1.1 > Package Content RP-X924 RP-X924 RP-X924 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram... - Page 6 (W x D x H) Weight 553 x 70 x 385 mm 583 x 124 x 529 mm 11.4 kg 12.7 kg RP-X924 21.8 x 2.8 x 15.2 inch 23 x 4.9 x 20.8 inch 25.1 lb 28 lb UM-CV-751-RP-X924-Q221V1...
-
Page 7: Installation
< 1.3 > VESA mount Installation RP-X924 M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-CV-751-RP-X924-Q221V1 www.austin-hughes.com... - Page 8 Mount the rear bracket with M6 screw set. ■ 8 x M6 screw set are required. M6 screw sets are not provided. Step ■ Insert the RP-X924 display panel into the rear bracket. Step ■ Fix the unit to the bracket with the top latch. Step...
-
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications RP-X924 Panel Size ( diagonal ) 24.1-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) - Page 10 * In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue. UM-CV-751-RP-X924-Q221V1 www.austin-hughes.com...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) RP-X924 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control... - Page 12 Adjust picture in picture setting PIP position : Enter into PIP position PIP source : Enter into the Sub source and sound source System reset : Return the adjustment back to factory setting Information : Select for Help UM-CV-751-RP-X924-Q221V1 www.austin-hughes.com...
-
Page 13: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / RP-X924 Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF... - Page 14 To select an input signal for PIP / PBP Sub screen. OSD Menu → MISC → PIP Source → VGA / DVI / HDMI / SDI The PIP / PBP is operable in the following table : DVI-D HDMI Main HDMI P.10 UM-CV-751-RP-X924-Q221V1 www.austin-hughes.com...
- Page 15 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
-
Page 16: Part. 3 > Options
LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty. -
Page 17: Audio
< 3.3 > Options : Audio RP-X924 - Audio ( Built-in Dual Stereo Speakers, 10W x 2 ) ( 3.5mm audio jacks for audio in & out Audio DVI-D Power HDMI out - in - in Video PC P.13 UM-CV-751-RP-X924-Q221V1... - Page 18 USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc ■ For detailed information, please refer to the attached CD disc ■ As the touchscreen unit is not made of toughened glass, please handle it carefully USB Touchscreen DVI-D Power HDMI P.14 UM-CV-751-RP-X924-Q221V1 www.austin-hughes.com...
- Page 19 < 3.4 > Options : Touchscreen & driver RP-X924 TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/rackmount-display Step 2. Double click the Setup.exe Step 3.
- Page 20 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. P.16 UM-CV-751-RP-X924-Q221V1 www.austin-hughes.com...
