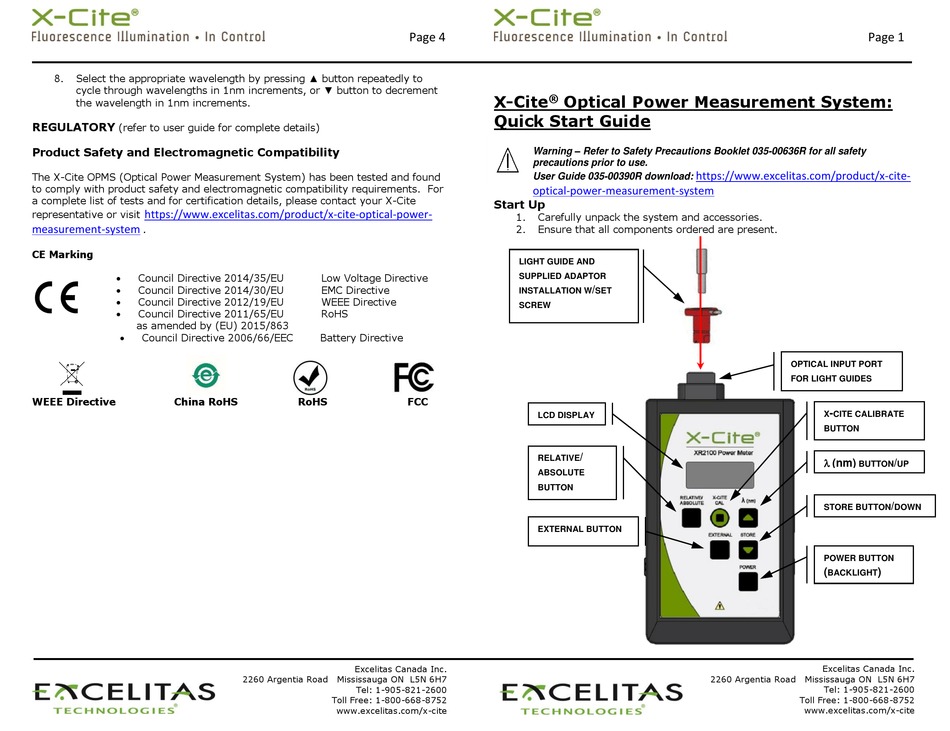

X-Cite XR2100 Quick Start Manual

8. Select the appropriate wavelength by pressing ▲ button repeatedly to
cycle through wavelengths in 1nm increments, or ▼ button to decrement
the wavelength in 1nm increments.
REGULATORY
(refer to user guide for complete details)
Product Safety and Electromagnetic Compatibility
The X-Cite OPMS (Optical Power Measurement System) has been tested and found
to comply with product safety and electromagnetic compatibility requirements. For
a complete list of tests and for certification details, please contact your X-Cite
representative or visit
https://www.excelitas.com/product/x-cite-optical-power-
measurement-system .
CE Marking
 Council Directive 2014/35/EU
 Council Directive 2014/30/EU
 Council Directive 2012/19/EU
 Council Directive 2011/65/EU
as amended by (EU) 2015/863
 Council Directive 2006/66/EEC
WEEE Directive China RoHS
Page 4
Low Voltage Directive
EMC Directive
WEEE Directive
RoHS
Battery Directive
RoHS FCC
Excelitas Canada Inc.
2260 Argentia Road Mississauga ON L5N 6H7
Tel: 1-905-821-2600
Toll Free: 1-800-668-8752
www.excelitas.com/x-cite
X-Cite ® Optical Power Measurement System:
Quick Start Guide
Warning – Refer to Safety Precautions Booklet 035-00636R for all safety
precautions prior to use.
User Guide 035-00390R download:
optical-power-measurement-system
Start Up
1. Carefully unpack the system and accessories.
2. Ensure that all components ordered are present.
LIGHT GUIDE AND
SUPPLIED ADAPTOR
/
INSTALLATION W SET
SCREW
LCD DISPLAY
/
RELATIVE
ABSOLUTE
BUTTON
EXTERNAL BUTTON
Page 1
https://www.excelitas.com/product/x-cite-
OPTICAL INPUT PORT
FOR LIGHT GUIDES
-
X CITE CALIBRATE
BUTTON
 (nm)
BUTTON
STORE BUTTON
POWER BUTTON
(
BACKLIGHT
Excelitas Canada Inc.
2260 Argentia Road Mississauga ON L5N 6H7
Tel: 1-905-821-2600
Toll Free: 1-800-668-8752
www.excelitas.com/x-cite
/
UP
/
DOWN
)
