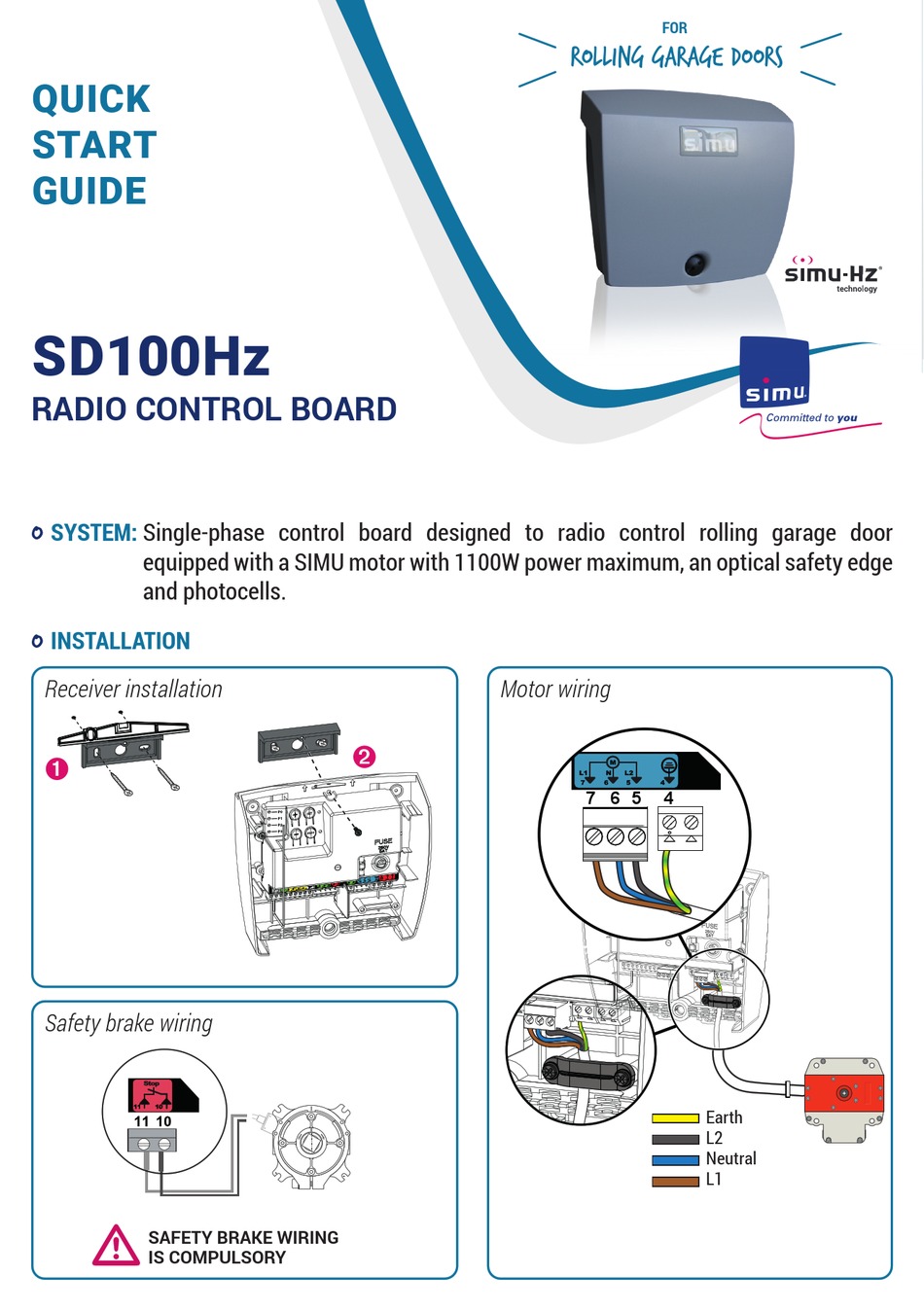

QUICK
START
GUIDE
SD100Hz
RADIO CONTROL BOARD
SYSTEM:
Single-phase control board designed to radio control rolling garage door
O
equipped with a SIMU motor with 1100W power maximum, an optical safety edge
and photocells.
INSTALLATION
O
Receiver installation
➊
Safety brake wiring
SAFETY BRAKE WIRING
IS COMPULSORY
Motor wiring
➋
FOR
ROLLING GARAGE DOORS
7 6 5
4
Earth
L2
Neutral
L1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simu SD100Hz
Summary of Contents for Simu SD100Hz
- Page 1 QUICK START GUIDE SD100Hz RADIO CONTROL BOARD SYSTEM: Single-phase control board designed to radio control rolling garage door equipped with a SIMU motor with 1100W power maximum, an optical safety edge and photocells. INSTALLATION Receiver installation Motor wiring ➋ ➊...
- Page 2 REFLEX PHOTOCELL wiring PHOTOCELL BARRIER wiring ➊ ➊ REMOVE REMOVE THE BRIDGE THE BRIDGE BEFORE BEFORE 19 18 17 16 19 18 17 SETTING SETTING 6 5 4 3 2 6 5 4 3 2 ➋ ➋ 20 19 17 16 15 19 18 17 16 6 5 4 3 2 1-2 = Mute input...
- Page 3 SETTINGS To enter setting mode, push SET during 0,5 s. P0 flashes once Push on « + » or « - » to change the parameter value. Push SET to move to the next parameter. To get out the setting mode, push SET during 2 s. Setting leds switch off.
- Page 4 Realization SIMU - 12/20 - SIMU SAS, capital 5 000 000 euros, RCS Vesoul 425 650 090. This document is not legally binding. We reserve ourselves the right to make any useful modification order to constantly develop and improve our tender. SIMU shall not be held responsible for misuse by non-professionals.
