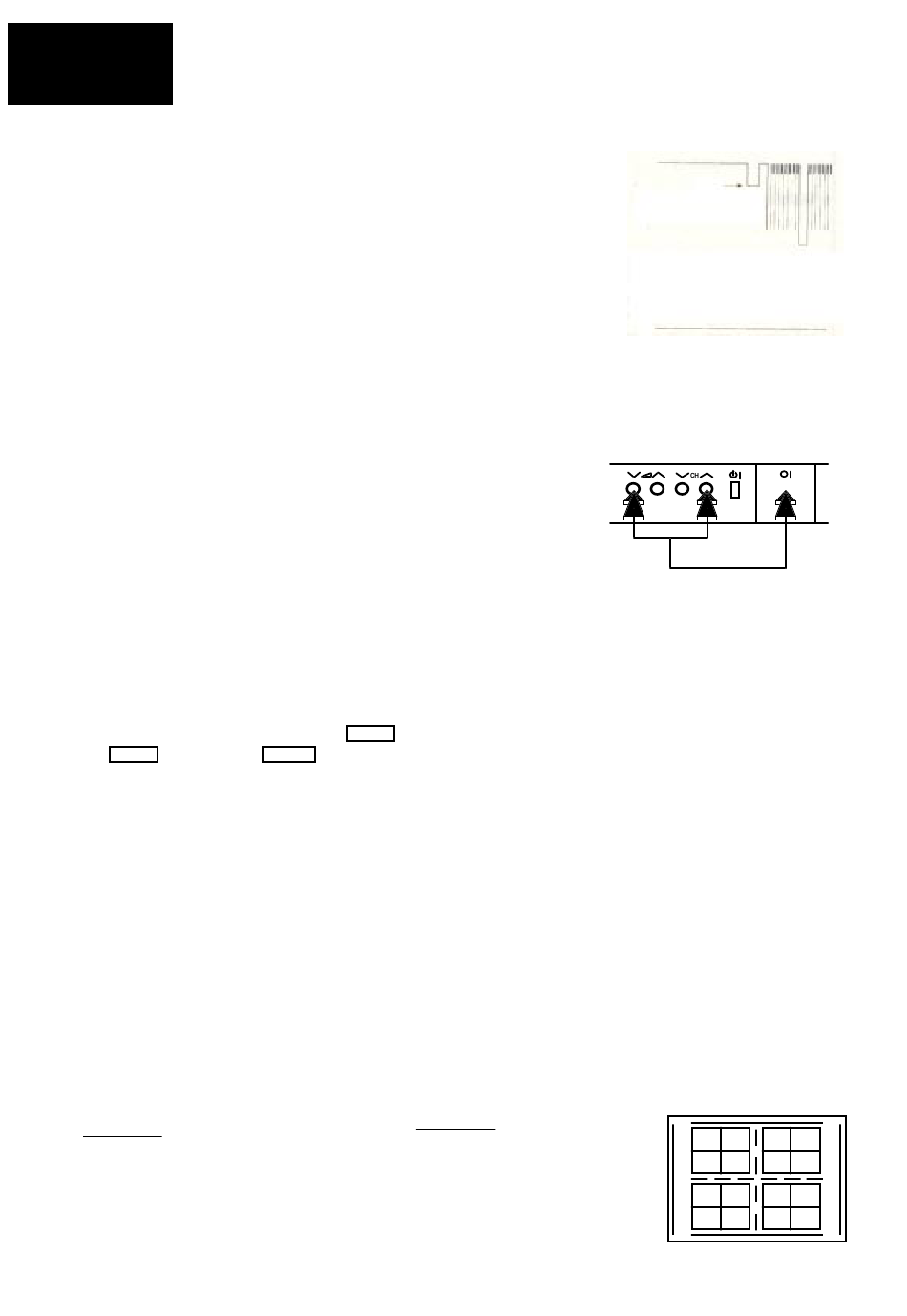

Sharp 60FW-53E Service Adjustments

60FW-53E
70FW-53E
81FW-53E
All the adjustments required for this chassis will be done in Service Mode, except G2 and Focus.
• • • • • G2 ADJUSTMENT
1.Receive cross hatch pattern signal.
2. Set contrast to 80/100 and brightness to 40/100.
3. Connect the oscilloscope to the red cathode and adjsust G2 to read
145V on the sensor pulse as in the drawing:
NOTE:
Oscilloscope should be adjusted for vertical TV field trigger and synchronized
with wideo signal.
• • • • • SERVICE MODE FUNCTION
This mode function is provided to assist with the settings of those adjustments that may vary from one
Picture Tube to another, or between models.
In order to use the Service Mode:
1. Connect Test Pattern signal to antenna terminal.
2. Press main switch to «OFF».
3. Press volume-down and channel-up buttons and
main switch to «ON» simultaneously.
The required adjustments can then be made from the Remote Control Unit.
The only buttons required are the following:
Up/Down-channel for movement in adjustment options menu; Up/Down-volume are used to carry out an
adjustment in said menu; ON/OFF is used to memorize a new adjustment.
Adjustment menu is as follows:
-SERVICE SOFTWARE AND HEXADECIMAL
COUNTER DISPLAY: «SW ON XXXX SW OFF
XXXX HOURS ON XXXX
-HORIZONTAL SHIFT.
-EAST WEST WIDTH.
-PIN PHASE.
-PIN AMP.
-UPPER CORNER CORRECTION.
-LOWER CORNER CORRECTION.
-VERTICAL LINEARITY.
-VERTICAL AMPLITUDE.
-S CORRECTION.
-VERTICAL SHIFT.
-RED GAIN.
To exit service mode, press main switch ot OFF.
Adjustment menu is as follows:
All adjustments for Geometries are based on internal pattern (fig.1)
The procedure for making adjustments is as follows:
Horizontal:
-Adjust HORIZONTAL SHIFT.
-Adjust E-W WIDTH.
-Adjust PIN PHASE.
-Adjust PIN AMPLITUDE.
-Adjust UPPER CORNER CORRECTION.
-Adjust LOWER CORNER CORRECTION.
SERVICE ADJUSTMENTS
Horizontal:
-Adjust VERTICAL AMPLITUDE.
-Adjust S-CORRECTION.
-Adjust VERTICAL SHIFT.
-Adjust VERTICAL LINEARITY.
4
0V
-GREEN GAIN.
-GREEN CUT OFF.
-BLUE CUT OFF.
-ALTER NVM PAGE / ALTER NVM POSITION /
ALTER NVM VALUE.
-TELETEXT MIX MODE CONTRAST.
-TELETEXT CONTRAST.
-OSD CONTRAST.
-DVCO ADJUSTMENT (Only PAL).
-DVCO ADJUSTMENT (Only NTSC).
-AGC ADJUSTMENT.
-AFT ADJUSTMENT.
-OPC VALUE (Not Available in this model).
AUTOINSTALLATION ON/OFF.
145V
1
2
Fig.1
