Carton Inventory

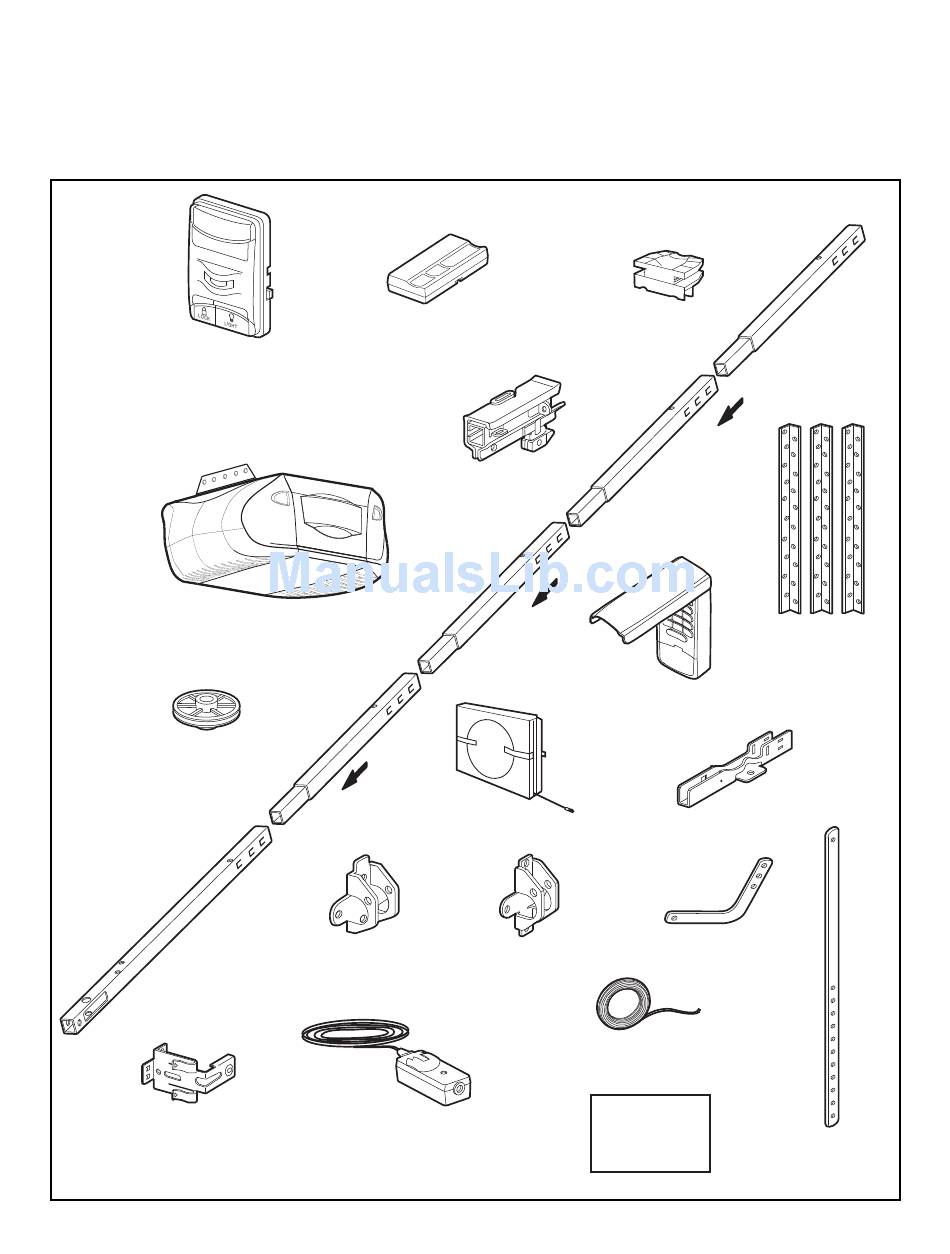

Your garage door opener is packaged in one carton
which contains the motor unit and all parts illustrated
below. Accessories will depend on the model
purchased. If anything is missing, carefully check the
packing material. PARTS MAY BE STUCK IN THE
Motion Detecting
Control Panel
Motor Unit with 2 Light Lenses
Idler Pulley
Rail
Front (header)
Section
Safety Sensor
Bracket (2)
®
SECURITY✚
3-Button Remote Control (2)
Chain and Cable
Header Bracket
The Protector System
®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
6
FOAM. Hardware for assembly and installation is
shown on the next page. Save the carton and
packing material until installation and adjustment is
complete.
Chain Spreader
T rolle y
SECURITY✚
Keyless Entry
PD758KD Only
Door Bracket
2-Conductor Bell Wire
White & White/Red
Safety Labels
and
Literature
Rail
Center/Back
Sections
Hanging Brackets
®
"U" Bracket
Curved Door
Arm Section
Straight Door
Arm Section
