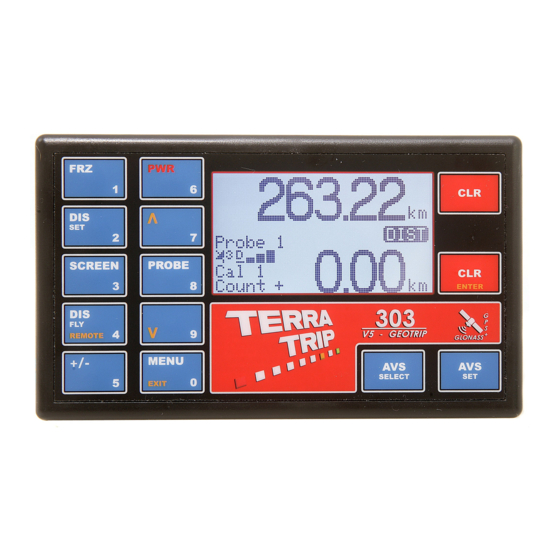

User Manual
for Terratrip GeoTrip
Version V1.1, 06/02/13
www.terratrip.com/manuals.htm
EN FR
DE
IT
ES
PT
Page :
Page 1 of 20
Advertisement
Table of Contents
Related Manuals for Terratrip GeoTrip
Summary of Contents for Terratrip GeoTrip
-
Page 1: Table Of Contents
2.1 Remote display. Part No. T016G: ................ 4 2.2 Remote Zeroing unit. Part No. T008 (foot RZU), T011G (Hand operated): ..4 2.3 Bracket. Part No. T009G: ..................4 3.0 Fitting GeoTrip® to vehicle..................4 3.1 Mounting GeoTrip®: ................... 4 3.2 Power lead: ......................4 4.0 Probe &... - Page 2 10.0 Time / Date: ......................11 10.1 Time: ........................ 11 10.2 Date: ......................... 11 10.3 Time Zone: ....................... 12 10.4 Set from GPS (UTC): ..................12 10.5 Time format: ....................12 11.0 Performance: ......................12 11.1 Maximum Speed: ..................... 12 11.2 0-60 times: .......................
-
Page 3: Features
F + H 1.0 Probe Selection: 1.1 GPS receiver: The Terratrip GeoTrip® has a removable cover on the rear case, this holds the GPS. GPS can be fitted to the GeoTrip® after purchase. 1.2 Wheel Probe, Part Number T005: Compatible with all cars. 1.5mm Gap sensor fits to either your wheel assembly or a prop shaft on a 4x4 vehicle. -
Page 4: Gear Box Probe, Probe No. T007
Connect the power lead to the vehicles 12 volt power using the supplied 2 Ampere fuse. When connecting RZU (remote zeroing unit) or probes you will need to connect the cables to the back of the GeoTrip® using the 12 way connector, follow the wiring diagrams at the back of this manual. -
Page 5: Probe & Rzu Installation
4.0 Probe & RZU Installation: 4.1 Wheel/ Drive Shaft Probe T005 & T005A: Also see Figure 1 & 2 for wiring and fitting diagrams. Make a bracket to mount the probe and position the probe so that it ‘looks’ at the steel heads of the bolts which secure the brake disc to the wheel hub of a non-driven wheel –... -
Page 6: Electronic Probe (Dsi) - T014
4.4 Electronic Probe (DSI) - T014: Connect as per the instructions that come with the DSI. Also see figure 5 for wiring diagram for connections to the GeoTrip®. Note the connections to the GeoTrip® are not the same as the 202PLUS/ 303PLUS. -
Page 7: Select Cal
6.1 Select Cal: The display shows the current calibration by placing a solid dot next to the selected calibration figure. Select Cal : ●-CAL 1 ○-CAL 2 *(CAL 1 is selected) Press ENTER to switch between calibration figures, and MENU to exit. -
Page 8: Gps Cal
6.4 GPS Cal: GPS calibration lets you calibrate a wheel probe, gearbox probe, speedo cable or electronics probe (DSI) via the GPS. It is important that the correct units for calibration i.e. kilometres or miles are selected, as if they are not correct the calibration will not be correct. -
Page 9: Remote Brightness
The Remote Brightness also sets the intensity of the AVS indicator LED’s when connected to a 303 GeoTrip®. 7.3 Contrast: Use the up and down keys (/\ and \/) to set the screen contrast. Higher the contrast value, the darker the screen and text are and it can make the screen easier to view from above. -
Page 10: Set Avs Times
9.0 GPS Options: The GPS menu will not be accessible unless the GPS module is fitted. Please refer to ‘Fitting GPS module’ if you are fitting a module to an existing GeoTrip®. 9.1 Start Threshold: Start threshold is the speed at which the GPS probe will start recording distance. -
Page 11: Standby Probe
In most cases, the factory setting is best, however if the GPS signal is poor, or being affected by terrain, then the setting can be changed to make the unit less sensitive to such interference. To set the threshold in an environment where the GPS signal is causing the unit to count without moving, raise the start threshold in 0.1 increments and check the distance display. -
Page 12: Time Zone
The GeoTrip® will record 8 results into memory for 0-60, 0-100 and 0-custom speed. All results are given in time to reach target speed, and time to reach zero speed from target speed. -
Page 13: Times
NOTE: If you are performing performance testing, and wish to record an accurate maximum speed it is best to clear the memory before the testing takes place. 11.2 0-60 times: 11.3 0-100 times: 11.4 0-(custom) times: 0-60, 0-100 or 0-custom (kph or mph depending on units set) is recorded in all modes of operation. -
Page 14: Key Functions
If you do not press a key within 5 seconds the unit will return to the previous screen, and the total distance will not be adjusted. 12.3 SCREEN: 202 GeoTrip® Classic – There is only one screen showing Total and Interval distance. 202 GeoTrip® – SCREEN button cycles between DIST screen, and SPEED screen. -
Page 15: Dis Fly
12.4 DIS FLY: Press DIS FLY and the ‘on the fly’ distance adjustment indicators will be shown over the 1/10ths of the Total distance display. Pressing DIS FLY again will move the fly adjustment to the 1/100ths of the Total display. Press /\ or \/ to adjust the distance. DIS FLY is pressed and no adjustments are made, then after 3 seconds the fly adjustment will move back 1/100ths on the Total display. -
Page 16: Menu / Exit
12.9 \/: Pressing ‘down’ in distance mode will ‘nudge’ the hundredths down. In menu items, ‘down’ is used to navigate or set various items. 13.0 MENU / EXIT: Press MENU to enter the main menu. In most menu items pressing MENU a second time will exit the menu. -
Page 17: Avs Set
Note: 303 GeoTrip® with External Display Fitted, used for regularity target speed rallies. 10 regularity target speeds can be pre programmed into the unit, and can be selected with a single button press or the target speed can be entered on the fly without pre- programming. -
Page 18: Factory Reset
Use Up and Down to select the language you require, and press ENTER. 14.2 Factory Reset: Press and hold upper whilst turning the unit on. Wait until you hear a long bleep, and the unit will return to factory settings. 14.3 Road Survey / high precision mode: Press and hold DIS SET... -
Page 19: Fig 2. Mounting T005 & T005A
15.2 Fig 2. Mounting T005 & T005A: 15.3 Fig 3. T006 & T007. Gearbox / Speedo cable connections: Page 19 of 20... -
Page 20: Fig 4. T014 Electronic Probe (Dsi) Connections
15.4 Fig 4. T014 Electronic Probe (DSI) Connections: 15.5 Fig 5. T011G Hand held RZU & T008 Foot operated RZU: Page 20 of 20...
