User Manual available for download at www.terratrip.com/manuals.htm

Installation

We recommend you download and follow our detailed installation manual from
www.terratrip.com/manuals.htm
Connect the power lead to the vehicles 12 volt power, use the supplied 2 Ampere fuse. When
connecting RZU (remote zeroing unit) and probes you will need to connect the cables to the back of the
GeoTrip® using the 12 way connector.
RZU
– For foot and hand remote, connect wires to as per diagram below.
Fitting Probes to Vehicle.
Setting up your GeoTrip®.
1. Language Select
With the unit OFF. Press and hold MENU, Press and release POWER, release MENU key once
languages are shown. Now select language using /\ \/ on the keypad and press
2. Set Units, km/m
Press MENU, use /\ \/ keys to select SETTINGS. Use arrow keys to select 'Set Units'. Press ENTER to
change units (km or Miles). Press MENU to exit.
3. Calibration of Probes
You must set units (km or miles) as above.
a. No Calibration required if using GPS without any other probes fitted.
b. Calibrating probes with GPS fitted.
1. Select probe 1 or 2 using the
2. Press MENU, select CALIBRATION and select 'CAL by GPS'.
3. Press ENTER.
4. Now follow the on-screen instructions. Exit at any time using MENU.
c. Calibrating probes without GPS fitted.
1. Select probe 1 or 2 using the
2. Press MENU, select CALIBRATION and select 'AUTO CAL'.
3. Press ENTER.
4. Now follow the on-screen instructions. Exit at any time using MENU.

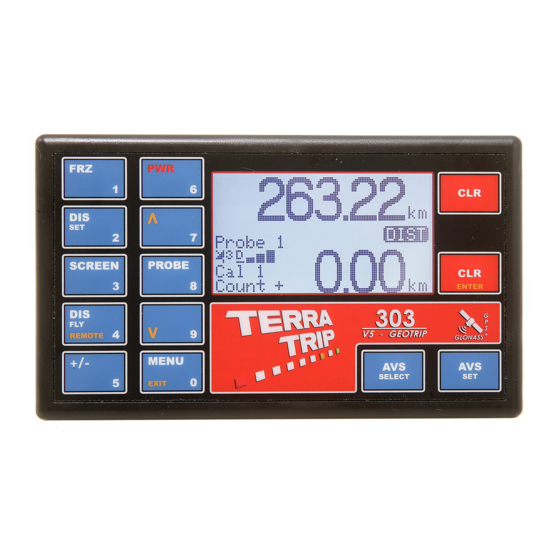

4. Using your GeoTrip®
PROBE - selects probe 1, 2 or GPS (press for 2 seconds for GPS probe). Probe Off indicates
that all probes are OFF.
SCREEN – There are 3 screens showing various data. The screen in use is indicated by an
Icon in the middle of the screen. Pressing SCREEN cycles through the different displays.
– shows Total & Interval
Distance.
screens, /\ \/ cycle through TSD1 to TSD4.
REMOTE – Changes the displayed screen on the optional remote display. Press and hold
REMOTE
to alternate between Interval Distance, Speed & Average Speed.
FRZ (Split freeze) – Press FRZ, display zeroes and freezes distance in TSD/ DIST mode.
Press
FRZ
again, display re-joins.
DIS SET – Enables adjustment of Total Distance. Press
Press
ENTER
DIS FLY – Enables rapid adjustment of the total distance display. Press \/ /\ to adjust 100th's
digit. Press
DIS FLY
+/-
– Switches between count up and count down (Count - is displayed if counting down).
T006/ T007
Fig 1.

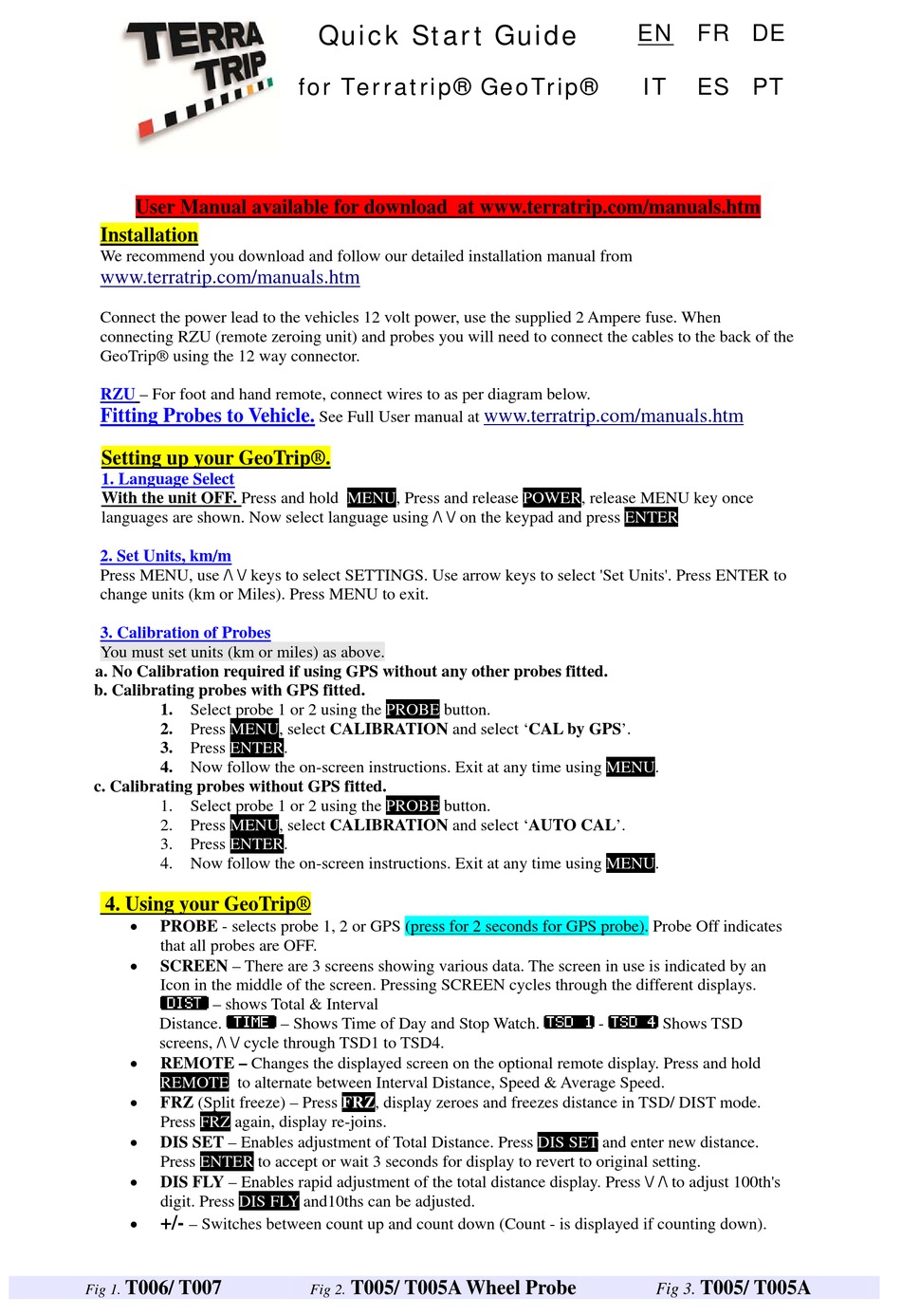

Quick Start Guide
for Terratrip® GeoTrip®
See Full User manual at
PROBE
PROBE
– Shows Time of Day and Stop Watch.
to accept or wait 3 seconds for display to revert to original setting.
and10ths can be adjusted.
T005/ T005A Wheel Probe
Fig 2.
www.terratrip.com/manuals.htm
button.
button.
-
DIS SET
and enter new distance.
EN FR DE
IT
ES PT
ENTER
Shows TSD
T005/ T005A
Fig 3.
