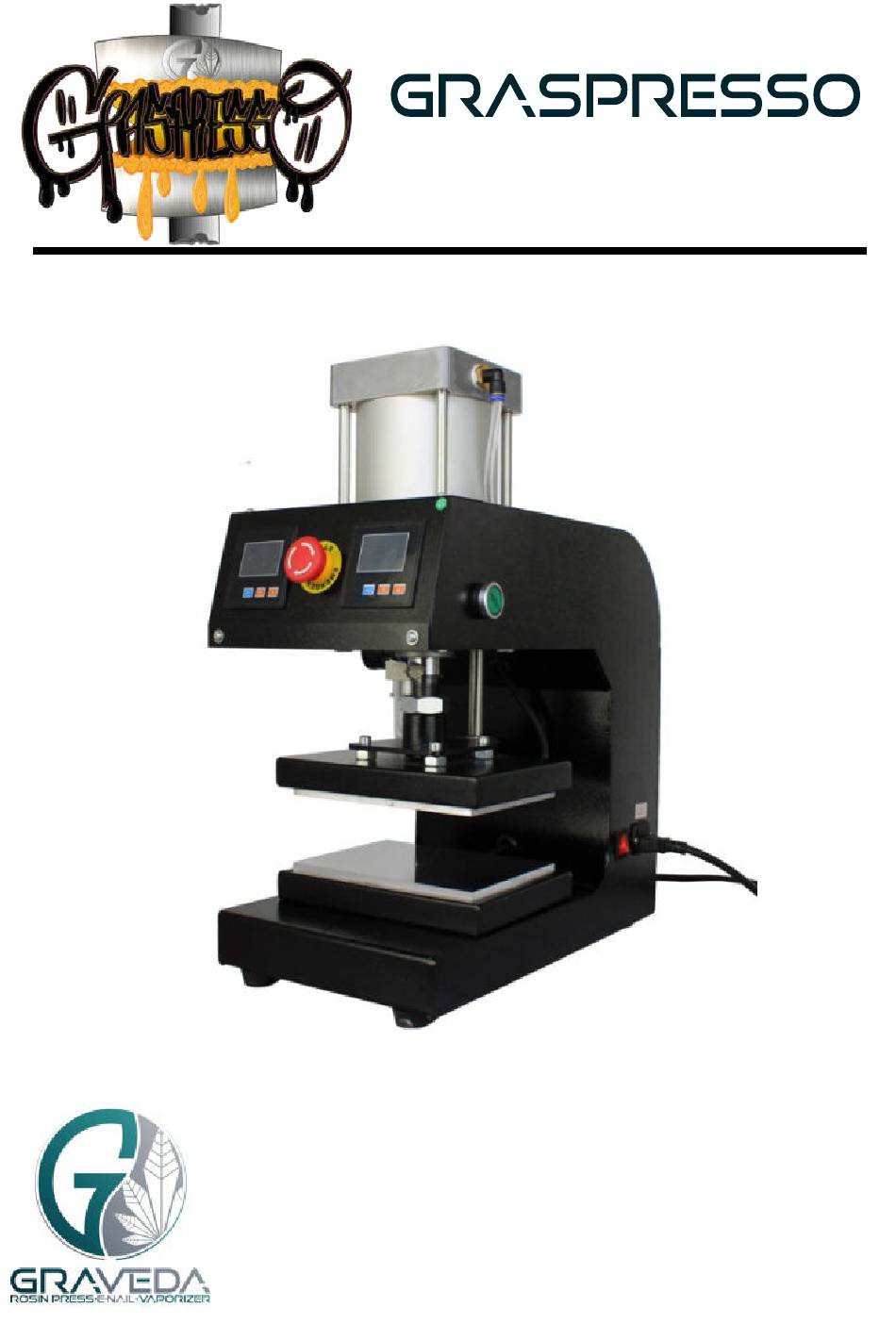

- Page 1 ® GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark © all rights reserved GRAVEDA® GRASPRESSO® - 5T Rosin Press Automatic pneumatic press with 5 Tons pressure Colophony press Model Number: GP40-5...
-
Page 2: Table Of Contents
Table of contents GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark Page 2 Contact & Warranty Page 3 Introduction Page 4 Precautions Page 5 Safety Instructions Page 6 Unpacking and assembly Page 7 Functions and components Page 8 Commissioning Page 9 Technical data sheet... -
Page 3: Contact & Warranty
The warranty does not apply if the damage to the article is due to forcible use/maintenance. Spare parts are available at cost price from GRAVEDA® support at info@graveda.de. Please pack the device well when sending it in for repair. -
Page 4: Introduction
® © Copyright by GRAVEDA The published contents, brand names, images and information provided are subject to German copyright and ancillary copyright law. Any kind of... -
Page 5: Precautions
Please ensure that you read, understand and follow these precautions thoroughly before using the product. If the product appears to be damaged or there is obvious damage or malfunction, please contact GRAVEDA® Customer Service immediately at info@graveda.de Never touch the hot plates or put your finger ●... -
Page 6: Safety Instructions
Safety Instructions GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark Use this product only as described in this manual. ● Always keep the product out of the reach of children. ● Always turn the appliance off and let it cool down completely before cleaning, ●... -
Page 7: Unpacking And Assembly
5. After unpacking the device, check it for damage. If there is any damage, contact the GRAVEDA® customer service immediately info@graveda.de 6. Make sure that all accessories are present ✗ 1 x GRAVEDA® GRASPRESSO®Rosin Press 5 tons GP40-5 ✗ 1 x power cord ✗ 1 x air regulator ✗... -
Page 8: Functions And Components

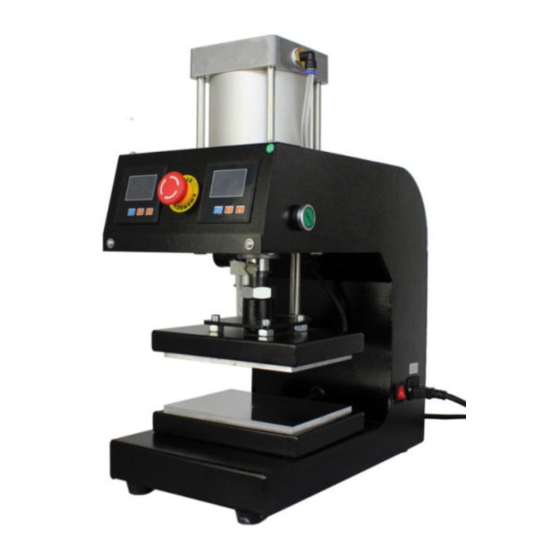

Functions and components GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark Cylinder Cap of air regulator Emergency button Air gauge LCD Controller Start Button Heating plates Air regulator Page 7... -
Page 9: Commissioning
Commissioning GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark This model is an pneumatic automatic model, high pressure, high efficiency and good return rate. Check the voltage before using the device. The correct voltage is 220-240V/50Hz. Do not set the temperature higher than 235°C. The operating temperature ranges between 0°C and 235°C. - Page 10 Commissioning GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark 1. Press the setting button to access the temperature setting for the two heating plates. On the control panel, the temperature setting display page flashes. 2. Now press the "up" or "down" button to set the desired temperature.
- Page 11 Commissioning GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark Place the prepared material in the middle of the lower plate. Use the lever (depending on the model) to push the cylinder upwards until the desired pressure is reached. Wait until the countdown has expired and the press starts beeping.
-
Page 12: Technical Data Sheet
Technical data sheet GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark Model Typ GP40-5 Pressure 5 tons Cylinder Automatic Pneumatic Current output 1200 W Amperage 5,5 A Frequency 50 Hz Voltage 220-240 V Plate size 15 x 20 cm Temperature range 0 –...
