Exploded View - Master Masterflow AH-301 Instruction Manual

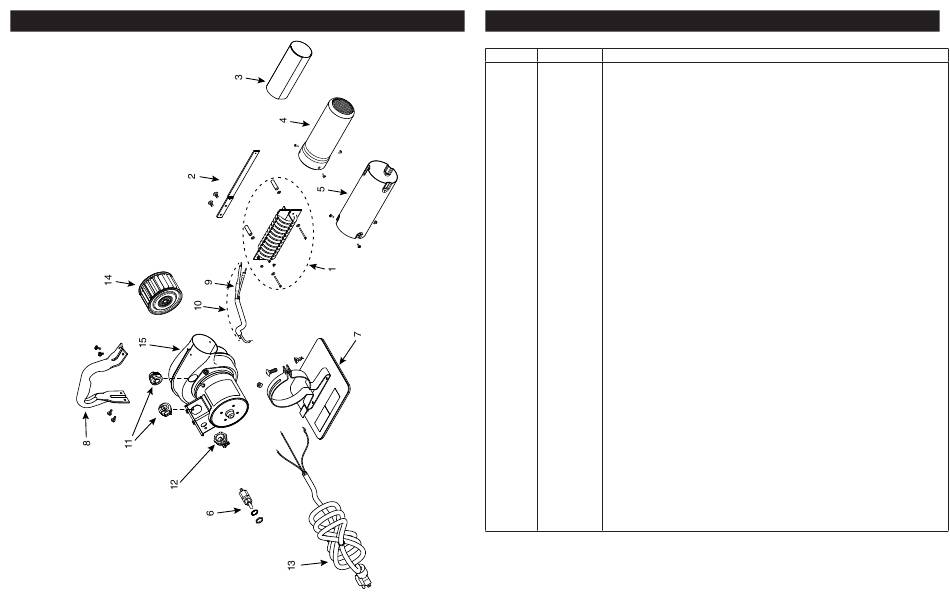

Exploded View

8
Masterflow Parts List - All Models
®
(When ordering, please specify part number and description.)
Item No. Part No.
1 35485 Element Kit, AH-301, with Mica, 120V
35486 * Element Kit, AH-302, with Mica, 220/240V
30310 Element Kit, AH-501, with Mica, 120V
30311 * Element Kit, AH-502, with Mica, 220/240V
30312 Element Kit, AH-751, with Mica, 120V
30313 * Element Kit, AH-752, with Mica, 220/240V
2 825 Bracket Bar Kit
3 827 Mica Insulation
4 837 Nozzle Kit
5 839 Shield Kit
6 845 Toggle Switch Kit
7 20108 Stand Kit
8 50737 Handle Kit
9 50927 Thermal Fuse with Terminals and Shrink Sleeve
10 805 Lead Wire with Thermal Fuse, Switch to Element
11 GRT-023 Strain Relief, Switch/Blower Housing
12 35238 Strain Relief, Power Cordset
13 842 Cordset, 120V, 15A, with Strain Relief
50924 Cordset, 120V, 20A, with Strain Relief
843 * Cordset, 220/240V, USA, with Strain Relief
35229 * Cordset, 220/240V, European, with Strain Relief
35258 * Cordset, 220/240V, British, with Strain Relief
14 50989 Blower Wheel, Metal
15 51008 Motor Blower Assembly, 120V, with Strain Reliefs
51009 * Motor Blower Assembly, 220/240V, with Strain Reliefs
* 230 Volt Models Only
Note: Kits include hardware (see exploded view)
Masterflow Heat Blower replacement parts and accessories are engineered and manufactured to precise Master
®
Appliance specifications. Replacement parts and accessories from other manufacturers are not produced to these
precise specifications and, therefore, may cause difficulties with—or actual damage to—a Masterflow
Master Appliance cannot assume any responsibility or liability for difficulties resulting from the use of any other
brand of replacement parts or accessories with a Masterflow
Description
Heat Blower.
®
Heat Blower.
®
9
