Chamberlain ASOLORADP32 Install Manual

INSTALL POWER ADAPTER

Open control box cover and disconnect ALL electrical power to the operator. Locate the 24Vac input on the
control board. Attach the yellow and black wires to the 24Vac input terminal (polarity is not important). Attach
black wire from the battery box output cable to the black wire on the power adapter connector. Attach the
white wire from the battery box output cable to the red wire on the power adapter connector. Place power
adapter inside of the control box.
NOTE: Image is for reference only, your operator and control box may appear different.
Power Adapter
24 VAC/
SOLAR
INPUT
J4
Yellow

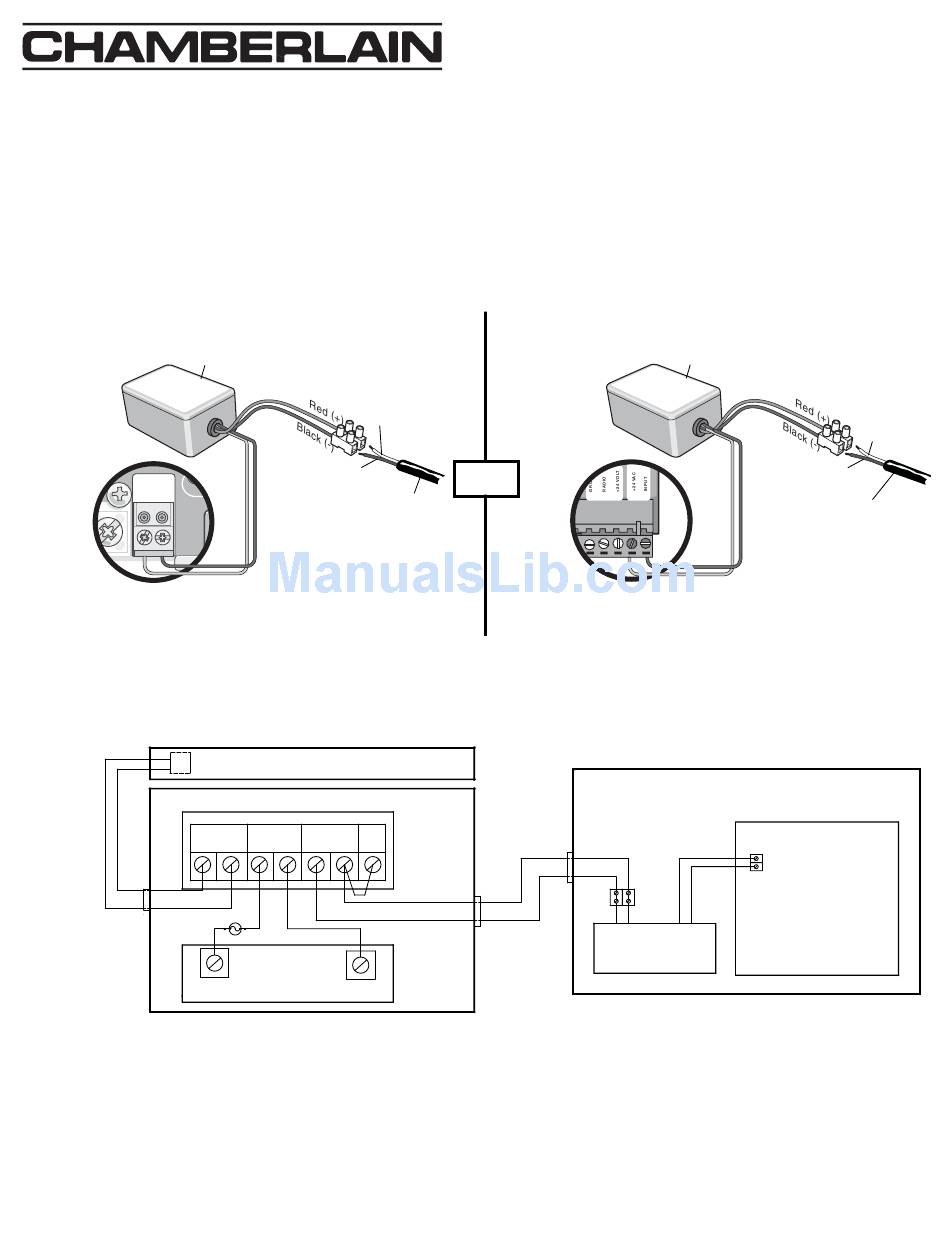

WIRING DIAGRAM

MorningStar SS-6-12V
4
+
RED
BLK
01-33611
White
Control
Black
Board
Battery Box
Output Cable
Black
(To Control Box)
LA400
SOLAR PANEL
BATTERY BOX
SOLAR BATTERY LOAD
SEALED
3 1 6 5
2
OR
FLOODED
+
- - -
+
F1
5A ATC
12VDC
DEEP CYCLE
POS
BATTERY
NEG
(RED)
(BLK)
© 2006, The Chamberlain Group, Inc.
®
OR
REMOVE JUMPER
FOR FLOODED
BATTERY
All Rights Reserved
DC Power Adapter
ASOLORADP32
Power Adapter
Control
Board
23 24 25 26 27
Black
Yellow
Miracle One
GATE OPERATOR
BLK YELLOW
WHITE
BLK
RED
BLK
POWER
ADAPTER
White
Black
Battery Box
Output Cable
(To Control Box)
CONTROL BOARD
24Vac
Input
