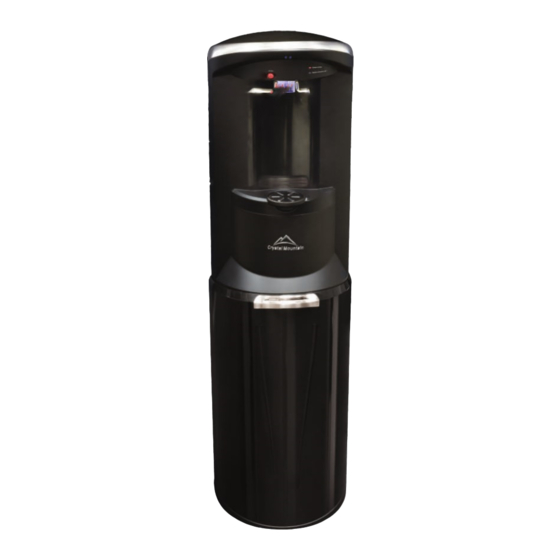

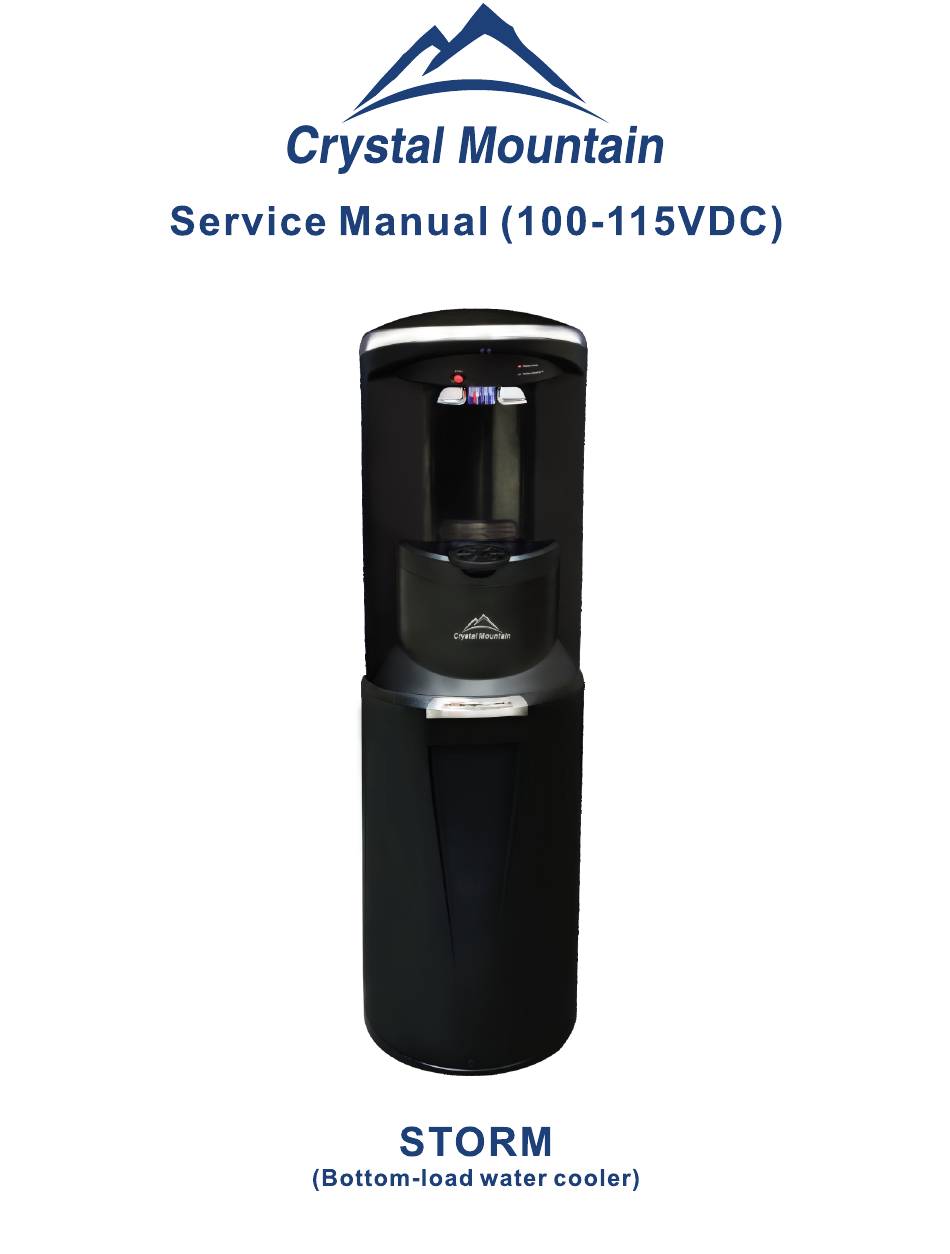

Crystal Mountain Storm Service Manual

Bottled water cooler
Hide thumbs Also See for Storm:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Storm and is the answer not in the manual?

Questions and answers

Related Manuals for Crystal Mountain Storm

Summary of Contents for Crystal Mountain Storm

  • Page 2: Table Of Contents

    Table of Contents SECTION1:Product Specification ......................... 1-1 SECTION2:Parts Listing and Exploded Views....................2-1 Storm Parts Listing ..........................2-1 Exploded Views ............................. 2-2 Product Dimensions ..........................2-5 Description of Product Model Number ...................... 2-6 SECTION3: Replacement of SmartFlo Water Cartridge ......................3-1 SECTION4: Water Bottle Install &...

  • Page 3: Section1:Product Specification

    The Storm features an easy to remove reservoir system, that takes less than a minute to change. The LED indicator tells you when it needs to be replaced.
  • Page 4 115V Storm Bottled Water Cooler Parts Listing MODEL--STFM2KHK1C DESCRIPTION DESCRIPTION PART CODE PART CODE BACK PANEL, BLACK PLC-C150002 C9 DOOR RAIL CAP PLC-C150033 115V POWER CORD, BLACK 45 ELE-C100197 FAS-C100113 C10 L SHAPE HINGE PIN, 3MM X 34MM TRANSFORMER, 115VAC TO 15VDC...

  • Page 7: Product Dimensions

    Product Dimensions Storm (Bottom-Load) 2 - 5...

  • Page 8: Description Of Product Model Number

    Type of Lid No. of Faucets Body Color Temp. Option Insert Color Voltage Option ST – Storm M –Manifold K – Black H – Hot & Cold K – Black 1 – 110~115V C – Made in China F– SmartFlo SF-1 Water Cartridge You can find your serial and model number at the back of your cooler.

  • Page 9: Section3: Replacement Of Smartflo Water Cartridge

    Replacement of SmartFlo™ Water Cartridge Notice: The information and/or procedures presented in the following demonstration(s) should be performed by a trained Water Cooler Service Technician only. Prior to any service or repair of the water cooler, ensure that the water has been completely drained from the system. For the best tasting and highest quality water, it is recommended to change the SmartFlo™...
  • Page 10 5. Insert the access key into the 2 holes located at the underside of the top edge of the cooler (above water levers) and push inwards (Figure 3-5 and Figure 3-6)(once unlocked, the front of the top cov- er opens upwards). Figure 3-5 Figure 3-6 6.
  • Page 11 10. Insert water line of replacement SmartFlo™ Water Cartridge through the guide tube, and push through to bottle installation area (Figure 3-10). Figure 3-10 11. Ensure gasket/seal is properly installed on the outlet tube of the SmartFlo™ Water Cartridge as- sembly (may have shifted during shipment or un-packaging) (Figure 3-11).
  • Page 12 16. Place fresh bottle outside of the cabinet. 17. Clean the outside of new bottle with a cloth (Figure 3-17). Remove security label/seal from the bottle cap (if applicable). Figure 3-17 18. Remove bottle adaptor assembly from the empty bottle, and set aside (Figure 3-18) .Carefully un-package the Bottle Adaptor assembly (located in the bottle storage area), avoiding touching the tube.
  • Page 13 21. Remove red protective cap from the blue tube of the Smartflo™ Water Cartridge and install onto the bottle adaptor assembly (Figure 3-22). Figure 3-22 22. Slide bottle into cabinet and close the door (Figure 3-23 to Figure 3-24) (slide door downwards to close) Figure 3-23 Figure 3-24...
  • Page 14 Install and Change Water Bottle Install Water Bottle 1. Open Dispenser door (Figure 4-1). (slide door upwards to allow access to bottle area). Figure 4-1 2. Place fresh bottle outside of the cabinet. 3. Clean the outside of new bottle with a cloth (Figure 4-2). Figure 4-2 4.
  • Page 15 6. Remove the red protective cap from the blue tube of SmartFlo™ Water Cartridge and install onto the bottle adaptor assembly (Figure 4-7). Figure 4-7 7. Slide bottle into cabinet (Figure 4-8) and close the door (slide door downwards to close). Figure 4-8 Bottle Change A flashing red light above the cold water lever will alert you when your water bottle is getting low.
  • Page 16 2. Slide empty bottle out of cabinet (Figure 4-10). Figure 4-10 3. Place fresh bottle outside of the cabinet. 4. Clean the outside of new bottle with a cloth (Figure 4-11). Remove security label/seal from the bottle cap (if applicable). Figure 4-11 5.
  • Page 17 7. Insert the Bottle adaptor assembly through Spike cap until tube hits bottom of the bottle (Figure 4-16 and Figure 4-17). Figure 4-16 Figure 4-17 8. Slide bottle into cabinet and close the door (Figure 4-18 to Figure 4-20) (slide door downwards to close).

  • Page 18: Section5: Electrical Component Diagnosis And Replacement

    SECTION 5 Electrical Component Diagnosis and Replacement Wiring and Schematics Models: Storm Hot & Cold water cooler Limiter Hot Thermostat Limiter Hot Thermostat...

  • Page 19: Cold Thermostat Remove And Installation

    Cold Thermostat Removal and Installation Notice: The information and/or procedures presented in the following demonstration(s) should be performed by a trained Water Cooler Service Technician only. Never attempt to service or repair a water cooler while it is plugged into any power supply. Prior to any service or repair of the water cooler, ensure that the water has been completely drained from the system.
  • Page 20 6. Cut the small plastic tie strap (holding cold thermostat sensor to evaporator insulation)(Figure 5-2-8). Figure 5-2-8 7. Pull the sensor tube out from the Evaporator Insulation to remove (Figure 5-2-9). Note: If required, install the Sensor tube cover onto the replacement cold thermostat. Figure 5-2-9 8.

  • Page 21: Cold Thermostat Adjustment

    Cold Thermostat Adjustment Note: The cold thermostat can be adjusted without removal of any panel. Adjustment screw is on the back top side (when viewed from the back of the cooler, see Figure 5-3-1). Factory Setting: 6:00 Note: To identify the 6:00 setting position, rotate the set screw clockwise until it has stopped (screw should turn with light pressure, do not force).

  • Page 22: Hot Tank Auto Cutout/Manual Reset Replacement

    Hot Tank Auto Cutout/Manual Reset Replacement Notice: The information and/or procedures presented in the following demonstration(s) should be performed by a trained Water Cooler Service Technician only. Never attempt to service or repair a water cooler while it is plugged into any power supply. Prior to any service or repair of the water cooler, ensure that the water has been completely drained from the system.

  • Page 23: Hot Tank Removal And Replacement

    Hot Tank Removal and Replacement Notice: The information and/or procedures presented in the following demonstration(s) should be performed by a trained Water Cooler Service Technician only. Never attempt to service or repair a water cooler while it is plugged into any power supply. Prior to any service or repair of the water cooler, ensure that the water has been completely drained from the system.
  • Page 24 4. Relax and remove the spring clip by using a plier (Figure 5-5-10). Remove the drain hose from hot tank , if necessary. Note: Hose may be difficult to remove. If necessary, use a flathead screwdriver to slide up between the tube and pipe to release the hoses.
  • Page 25 9. Plug the cooler back into power outlet. Push hot safety button and press the hot water faucet lever until water comes out (Figure 5-5-15). CAUTION: TO PREVENT DAMAGE TO THE HOT TANK, DO NOT SWITCH ON IF THE HOT TANK IS EMPTY.

  • Page 26: Compressor Relay / Overload Protector Replacement

    Compressor Relay / Overload Protector Replacement Notice: The information and/or procedures presented in the following demonstration(s) should be performed by a trained Water Cooler Service Technician only. Never attempt to service or repair a water cooler while it is plugged into any power supply. Prior to any service or repair of the water cooler, ensure that the water has been completely drained from the system.
  • Page 27 4. Reinstall the cover (Figure 5-6-12) and secure with the metal clip (Figure 5-6-13). Note: use cau- tion not to damage wires. Figure 5-6-12 Figure 5-6-13 5 - 10...

  • Page 28: Section6:Trouble Shooting

    Trouble Shooting Notice: The information and/or procedures presented in the following demonstration(s) should be performed by a trained Water Cooler Service Technician only. Never attempt to service or repair a water cooler while it is plugged into any power supply. Prior to any service or repair of the water cooler, ensure that the water has been completely drained from the system.
  • Page 29 Cleaning and Sanitization Notice: The information and/or procedures presented in the following demonstration(s) should be performed by a trained Water Cooler Service Technician only. Never attempt to service or repair a water cooler while it is plugged into any power supply. Prior to any service or repair of the water cooler, ensure that the water has been completely drained from the system.
  • Page 30 5. Use top cover key (an accessory of cooler, Figure 7-6), insert into the two holes (on the front top, at approx 2 inch above and to the right of hot water safety button) towards the cooler, push key to open top cover (Figure 7-7 and Figure 7-8).
  • Page 31 8. It is recommended that the hot tank be descaled periodically (frequency varies by mineral content). Only the use of descaling agents that are compatible with 304 grade stainless steel are recommended. The use of the descaling agents must be in accordance with the manufacturer’s safety instructions and recommendations and performed by properly trained personnel.
  • Page 32 15. Lift the door to open properly. Turn the hot tank power switch ON. Slide downwards to close the door. CAUTION: TO PREVENT DAMAGE TO THE HOT TANK, DO NOT SWITCH ON IF HOT TANK IS EMPTY. Crystal Mountain has a policy of continuous development and reserves the right to change specifications without notification. 7 - 4...
  • Page 33 Room 610, Winfield Commercial Building 6-8a Prat Avenue, Tsimshatsui Kowloon, Hong Kong Tel: (852) 2368 1989 Fax: (852) 3017 6727 E-mail: cmasia@crystalcoolers.com Website: www.crystalcoolers.com Crystal Mountain has a policy of continuous development and reserves the right to change specifications without notification. STOSM REV0420...
