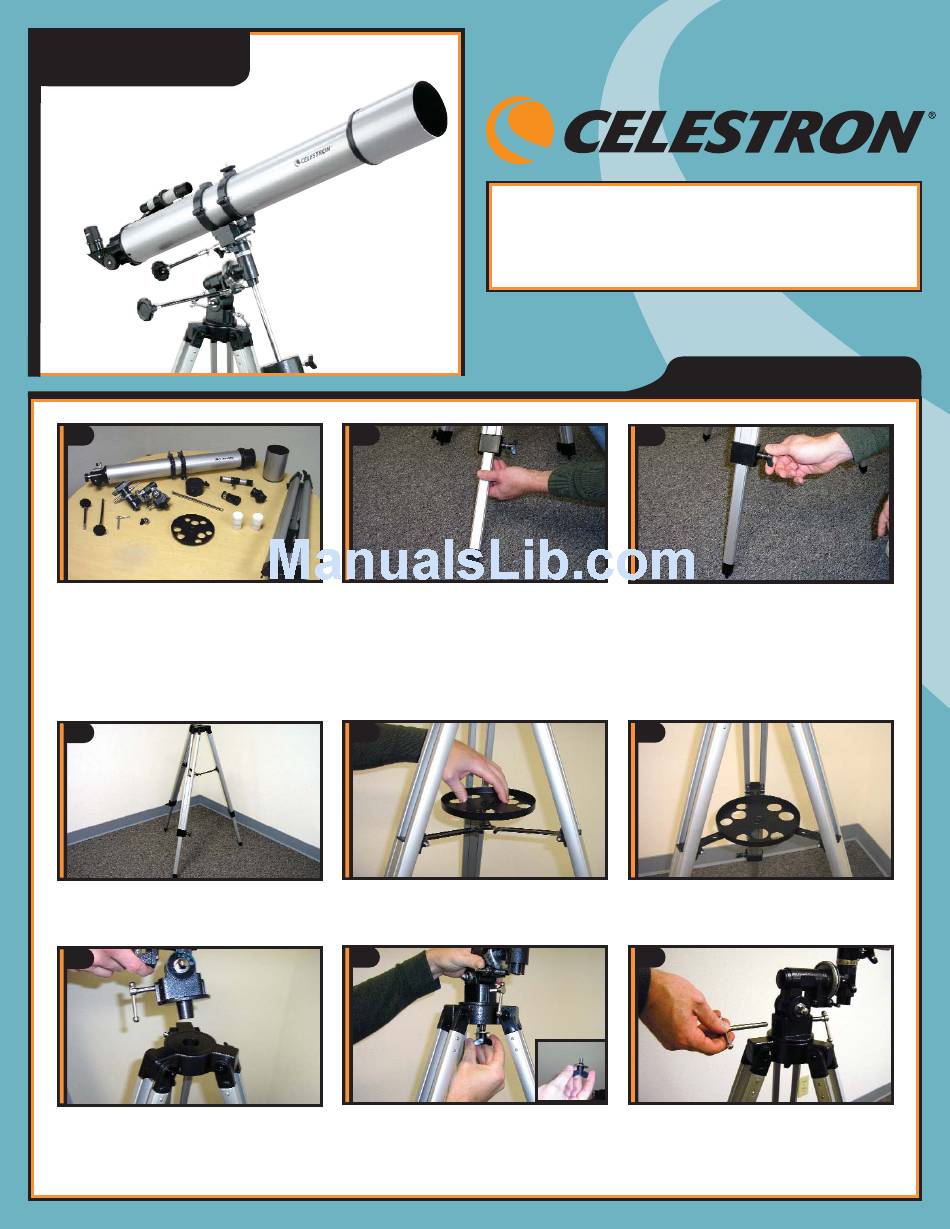

Celestron PowerSeeker 80 Quick Setup Manual

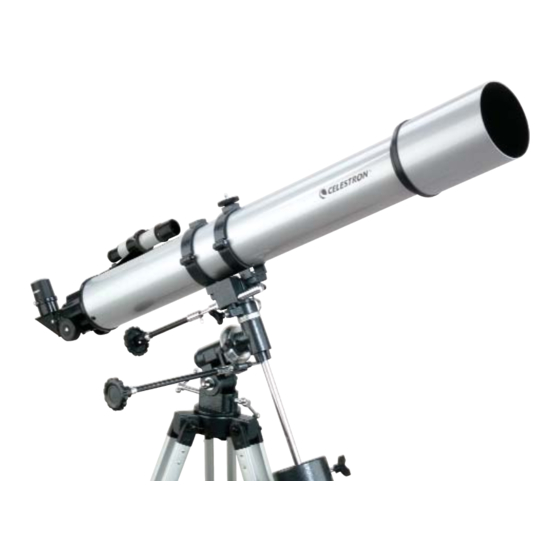

PowerSeeker 80
Item# 21048
1
Your PowerSeeker 80 includes: optical tube w/ tube
rings & lens shade attached; tripod with center
support bracket; equatorial mount; two eyepieces; a
3x barlow lens, finderscope; 5 lb. counterweight;
counterweight bar; star diagonal; two slow motion
cables; eyepiece accessory tray;The Sky™ CD
software; documentation including owner's manual.
4
All three legs should be the same length to
provide a level platform for the telescope.
7
Locate the equatorial mount and place the
base of the mount through the hole in the
center of the tripod mounting platform.
Item #31132
Celestron Technical Support: 310
2
To set up the tripod, spread the legs outward
until they are fully extended. Extend the center
portion of each of the three tripod legs down 6-
8".
5
Place the accessory tray on top of the tripod's
center leg brace. Thread the tray into the
threaded hole in the center of the leg brace.
8
From underneath the tripod mounting platform,
thread the mounting bolt with washer into the
threaded hole on the bottom of the equatorial
mount.
Questions or Problems with Set-up?
CONTACT:
Quick Set-up Guide
3
Use the three tightening screws located at the
bottom of each leg to secure the extended legs
in place.
6
Properly assembled, the accessory tray should
appear as pictured above.
9
Thread the latitude adjustment screw into the
equatorial mount until it is touching the inside
of the mount.
. .
803 5955
