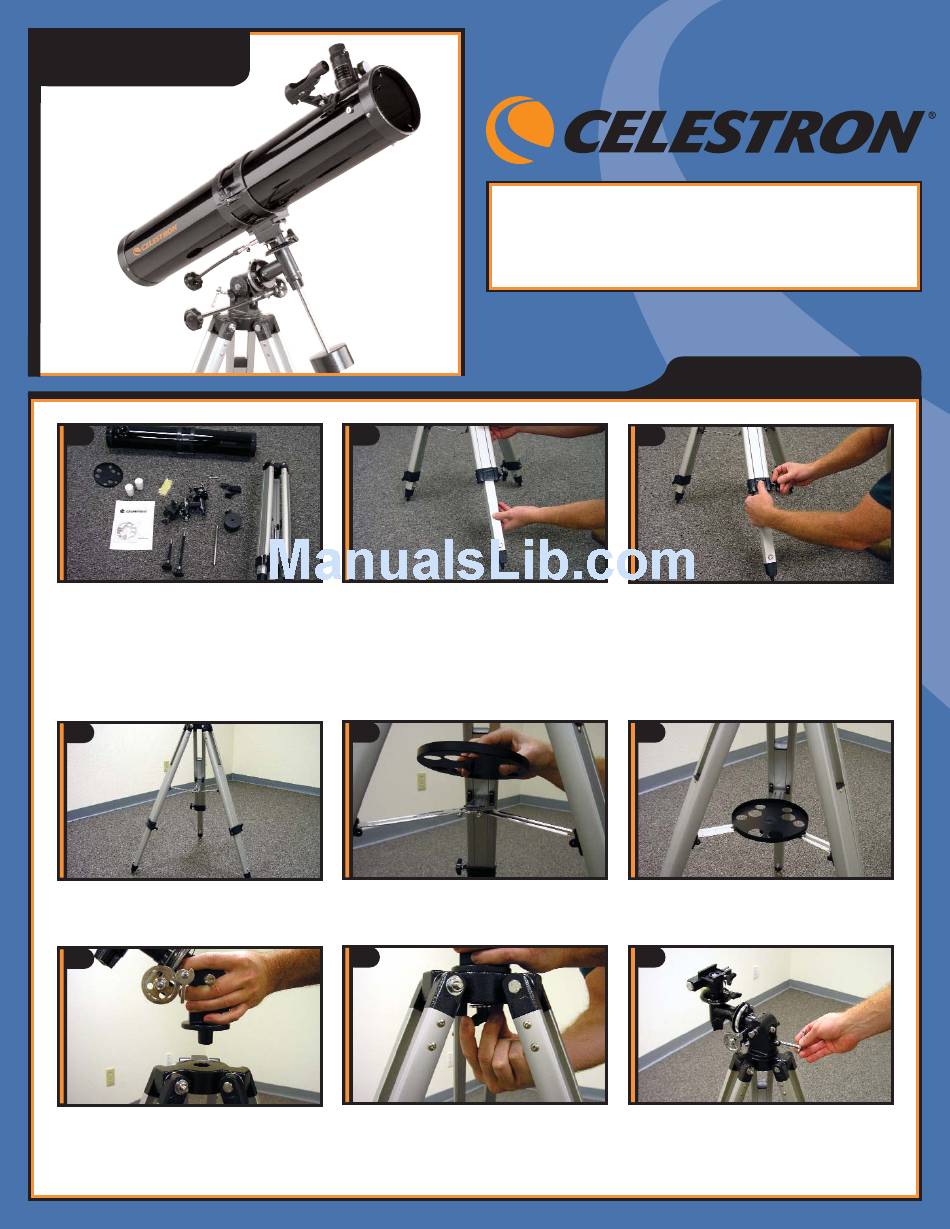

Celestron FirstScope 114 Quick Setup Manual

FirstScope 114
Item# 31044
1
Your FirstScope 114 includes: optical tube w/ tube
ring attached; tripod with center support bracket;
equatorial mount; two eyepieces; StarPointer
finderscope; 5 lb. counterweight; counterweight bar;
two slow motion cables; eyepiece accessory tray;
documentation including an owner's manual and
The Sky™ CD Software.
4
All three legs should be the same length to
provide a level platform for the telescope.
7
Locate the equatorial mount and place the
base of the mount through the hole in the
center of the tripod mounting platform.
Item #31132
Celestron Technical Support: 310
2
To set up the tripod, spread the legs outward
until they are fully extended. Extend the center
portion of each of the three tripod legs down 6-
8".
5
Place the accessory tray on top of tripod's
center leg brace. Thread the tray into the
threaded hole in the center of the leg brace.
8
From underneath the tripod mounting platform,
thread the mounting bolt with washer into the
threaded hole on the bottom of the equatorial
mount.
Questions or Problems with Set-up?
CONTACT:
Quick Set-up Guide
3
Use the three tightening screws located at the
bottom of each leg to secure the extended legs
in place.
6
Properly assembled, the accessory tray should
appear as pictured above.
9
Thread the latitude adjustment screw into the
equatorial mount until it is touching the inside
of the mount.
. .
803 5955
