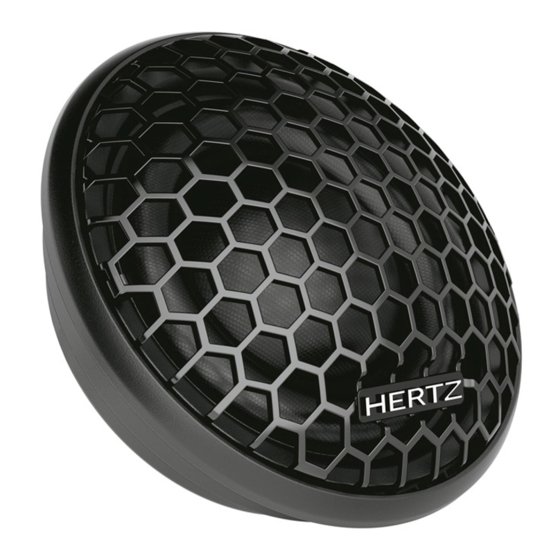

Summary of Contents for Hertz Cento C 26
- Page 1 hertzaudiovideo.com OWNER’S MANUAL Comp - System - Coax...
-
Page 2: Safe Sound
14. Do not run the wires outside of the vehicle. 15. Use top quality cables, connectors and accessories such as found in the Connection catalogue. 16. Warranty certificate: For more information visit the Hertz website. SAFE SOUND USE COMMON SENSE AND PRACTICE SAFE SOUND. PLEASE REMEMBER THAT LONG EXPOSURE TO EXCESSIVELY HIGH SOUND PRESSURE LEVELS MAY DAMAGE YOUR HEARING. - Page 3 Owner’s Manual Hertz Warranty The Hertz products are warranted, under normal functioning conditions, for the period of time as set by the laws in force, against defects concerning materials or their manufacturing. The warranty is valid from the date of purchase, certified by receipt.
- Page 4 Съдържание на опаковката / 包裝內容 / 内装物 内装物 / Sadržaj pakiranja 包裝內容 Pakkens indhold / Obsah balení / Pakket inhoud / Packaging contents / Pakendi sisu / Verpackungsinhalt / Pakkauksen sisältö / Contenu de l’emballage / Περιεχόμενα συσκευασίας A csomag tartalma / Isi kemasan / Contenuto dell’imballo / パッケージ内容...
- Page 5 Owner’s Manual CK 130 CK 165 CG 130 CG 165 C 130 C 165 C 26 CCX 2 C 26 CCX 2 FGG107_C 26_REV.A_Viste FGG107_C 26_REV.A_Viste CK 165 L CK 165 F CG 165 CG 165 C 165 L C 165 F C 26 CCX 2 T C 26...
- Page 6 沖洗安裝 / 嵌入装置 Razinska ugradnja Скрит монтаж / 沖洗安裝 嵌入装置 / Flush montering / Flush mounting / Montáž pod omítku / Inbouwmontage / Asennus pinnan tasoon / Einbau / Süvispaigaldus / Montage encastré / Χωνευτή Pemasangan di dinding langit-langit τοποθέτηση / Szintbe szerelés / フラッシュマウント...
- Page 7 Owner’s Manual Предложени дължина и ъгъл / 建議長度和角度 建議長度和角度 / 建议长度及 建议长度及 Preporučena duljina i kut nagiba / Foreslået længde og 角度 角度 / Požadovaná délka a úhel / vinkel / Suggested Length and Angle / Voorgestelde lengte en hoek / Soovitatav pikkus Suositeltu pituus ja kulma / Empfohlene...
- Page 8 尺寸 / 规格 Veličina / Størrelse / Size / Размер / 尺寸 规格 / Velikost / Afmetingen / Größe / Ukuran / Koko / Suurus / Dimensions / Méretek / Διαστάσεις サイズ / 크기 Izmērs / Størrelse / Wielkość / Ingombro / サイズ...
- Page 9 Owner’s Manual CX 570...
- Page 10 CX 690 221 139,5 182 126,5 65,5 10 mm CX 570 5.49 7.17 4.98 2.95 2.58 0.19 0.39 in. 78,5 268 8,5 mm CX 690 9.37 6.42 8.82 3.74 3.09 10.55 7.56 1.14 0.22 0.33 in.
- Page 11 Owner’s Manual Montaža / Montering / Mounting Монтаж / 安裝 安裝 / 安装 安装 / Montáž / Montage / Kiinnitys / Montage / Paigaldamine / Montage / Τοποθέτηση / / Beszerelés / Pemasangan / Uzstādīšana / Montering Montaggio / マウント マウント...
- Page 12 尺寸 / 规格 Veličina / Størrelse / Size / Размер / 尺寸 规格 / Velikost / Afmetingen / Koko / Größe / Ukuran / Suurus / Dimensions / Méretek / Διαστάσεις サイズ / 크기 Izmērs / Størrelse / Wielkość / Ingombro / サイズ...
- Page 13 Owner’s Manual CCX 2 T CCX 2 W 45,5 CCX 2T CCX 2W 2.83 CCX 26 400 mm 15.75 in. 800 mm 31.5 in.
- Page 14 B - IN CAR C 26 C 26 FGG107_C 26_REV.A_Viste C 130 12～15 cm C 130 DISPLAY Suggested distance X=Y Suggested crossover set-up CCX 2 Tw Level In car Tw Level Display +3dB +3dB HERTZ C 26 FGG107_ C 130...
- Page 15 B - IN CAR C 26 C 26 FGG107_C 26_REV.A_Viste C 165 F 12～15 cm C 165 DISPLAY Suggested distance X=Y Suggested crossover set-up CCX 2 Tw Level In car Tw Level Display +3dB +3dB HERTZ C 26 FGG107_ C 165...
- Page 16 CK 165 L A - DISPLAY B - IN CAR C 26 C 26 FGG107_C 26_REV.A_Viste C 165 L 12～15 cm C 165 L DISPLAY Suggested distance X=Y Suggested crossover set-up CCX 2 T CCX 2 W +3dB 0dB In car Display Tw Level CCX 2 W...
- Page 17 B - IN CAR C 26 C 26 FGG107_C 26_REV.A_Viste C 165 F 12～15 cm C 165 F DISPLAY Suggested distance X=Y Suggested crossover set-up CCX 2 Tw Level In car Tw Level Display +3dB +3dB HERTZ C 26 FGG107_ C 165 F...
- Page 18 Spajanje / Forbindelser / Свързвания / 連接 連接 / 连接 连接 / Připojení / Connections / Kytkennät / Verbindungen Verbindingen / Ühendused / Connexions / Sambungan / Συνδέσεις / Csatlakozók / Connessioni / 接続 接続 / 연결 연결 / Savienojumi / Tilkoblinger / Połączenia / Conectarea...
- Page 19 Owner’s Manual Elektro- Електро-акустични параметри / 電聲參數 電聲參數 / 电声参数 电声参数 / akustički parametri / Elektroakustické parametry / Electro-Acoustic parametre / Elektro- akoestische parameters / Electro-Acoustic parameters / Elektroakustilised parameetrid / Sähköakustiset parametrit / Paramètres électro-acoustiques / Elektro-akustische Parameter Elektro-akusztikus Ηλεκτρο-ακουστικές...
- Page 20 Tehnički podaci / Технически спецификации /技術規格 技術規格/ 技术规格 技术规格 / Technické údaje / Tekniske specifikationer / Technische specificaties / Technical specifications Tehnilised andmed / Tekniset tiedot / Caractéristiques techniques / Technische daten / Műszaki adatok / Spesifikasi teknis / Specifiche Τεχνικά...
- Page 21 Owner’s Manual Magnet size Voice Magnet Cone Weight of coil ∅ component mm (in.) mm (in.) Kg (lb.) 19 x 3 (0.75 x 0.12) 20 (0.8) Neodymium Tetolon 0,037 (0.08) Hight Density Semi-Pressed paper 85 x 32 x 15 (3.35 x 1.26 x 0.59) 25 (1) 0,96 (2.12) flux Ferrite...
- Page 22 Component Specific component Size Crossover weight mm (in.) Kg (lb.) 102 x 76,5 x 32,5 CCX 2 CK 130 / CK 165 / CK 165 F Crossover 0,185 (0.41) (4.02 x 3.01 x 1.28) CCX 2 T C 26 (CK 165 L) 72 x 45,5 x 23 mm Crossover 0,07 (0.15)
- Page 23 Owner’s Manual Type Crossover Point Adjustment 2 Way 2.5 kHz Tweeter Level: 0 / +3 dB HP 12 dB Oct. HP 12 dB Oct. 3,8 kHz Tweeter Level: 0 / +3 dB LP 6 dB Oct. 3,8 kHz HP 6 dB Oct 5,5 kHz...
