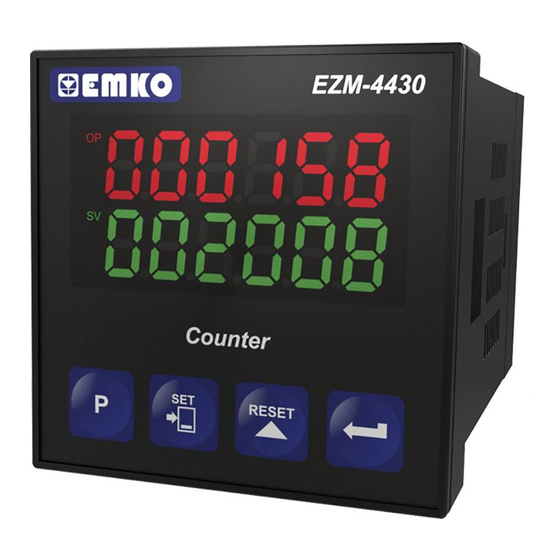

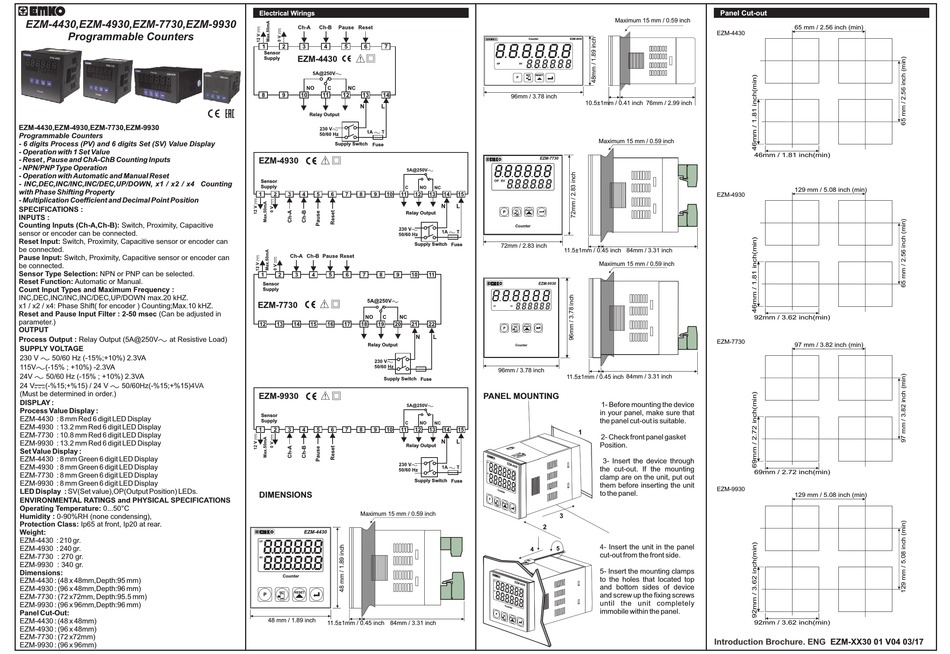

EMKO EZM-4430 Manual

EZM-4430,EZM-4930,EZM-7730,EZM-9930

Programmable Counters

EZM-4430,EZM-4930,EZM-7730,EZM-9930
Programmable Counters
- 6 digits Process (PV) and 6 digits Set (SV) Value Display
- Operation with 1 Set Value
- Reset , Pause and ChA-ChB Counting Inputs
- NPN/PNP Type Operation
- Operation with Automatic and Manual Reset
- INC,DEC,INC/INC,INC/DEC,UP/DOWN, x1 / x2 / x4 Counting
with Phase Shifting Property
- Multiplication Coefficient and Decimal Point Position

SPECIFICATIONS :

INPUTS :

Counting Inputs (Ch-A,Ch-B): Switch, Proximity, Capacitive
sensor or encoder can be connected.
Reset Input: Switch, Proximity, Capacitive sensor or encoder can
be connected.
Switch, Proximity, Capacitive sensor or encoder can
Pause Input:
be connected.
Sensor Type Selection: NPN or PNP can be selected.
Reset Function: Automatic or Manual.
Count Input Types and Maximum Frequency :
INC,DEC,INC/INC,INC/DEC,UP/DOWN max.20 kHZ.
x1 / x2 / x4: Phase Shift( for encoder ) Counting;Max.10 kHZ.
Reset and Pause Input Filter : 2-50 msec (Can be adjusted in
parameter.)

OUTPUT

V
Process Output : Relay Output (5A@250V at Resistive Load)
SUPPLY VOLTAGE
V
230 V 50/60 Hz (-15%;+10%) 2.3VA
V
115V (-15% ; +10%) -2.3VA
V
24V 50/60 Hz (-15% ; +10%) 2.3VA
Z V
24 V (-%15;+%15) / 24 V 50/60Hz(-%15;+%15) 4VA
(Must be determined in order.)

DISPLAY :

Process Value Display :
EZM-4430 : 8 mm Red 6 digit LED Display
EZM-4930 : 13.2 mm Red 6 digit LED Display
EZM-7730 : 10.8 mm Red 6 digit LED Display
EZM-9930 : 13.2 mm Red 6 digit LED Display
Set Value Display :
EZM-4430 : 8 mm Green 6 digit LED Display
EZM-4930 : 8 mm Green 6 digit LED Display
EZM-7730 : 8 mm Green 6 digit LED Display
EZM-9930 : 8 mm Green 6 digit LED Display
LED Display : SV(Set value),OP(Output Position) LEDs.

ENVIRONMENTAL RATINGS and PHYSICAL SPECIFICATIONS

Operating Temperature : 0...50°C
Humidity : 0-90%RH ( none condensing),
Protection Class : Ip65 at front, Ip20 at rear.
Weight :
EZM-4430 : 10 gr. 2
EZM-4930 : 40 gr. 2
EZM-7730 : 27 0 gr.
EZM-9930 : 34 0 gr.
Dimensions :
EZM-4430 : (48 x 48mm, Depth :95 mm)
EZM-4930 : (96 x 48mm, Depth :96 mm)
EZM-7730 : (72 x72mm, Depth :95.5 mm)
EZM-9930 : (96 x 96mm, Depth :96 mm)
Panel Cut-Out:
EZM-4430 : (48 x 48mm)
EZM-4930 : (96 x 48mm)
EZM-7730 : (72 x72mm)
EZM-9930 : (96 x 96mm)
Electrical Wirings
Sensor
Supply
Relay Output
Supply Switch Fuse
Sensor
Supply
Relay Output
Supply Switch Fuse
Sensor
Supply
Relay Output
Supply Switch Fuse
Sensor
Supply
Relay Output
Supply Switch Fuse
DIMENSIONS
Maximum 15 mm / 0.59 inch
48 mm / 1.89 inch
11.5 ±1 mm / 0.45 inch 84mm / 3.31 inch
Maximum 15 mm / 0.59 inch
Counter EZM-4930
OP SV
OP SV
SET RESET
P
96mm / 3.78 inch
10.5 ±1 mm / 0.41 inch 76mm / 2.99 inch
Maximum 15 mm / 0.59 inch
72mm / 2.83 inch
11.5 ±1 mm / 0.45 inch 84mm / 3.31 inch
Maximum 15 mm / 0.59 inch
96mm / 3.78 inch
11.5 ±1 mm / 0.45 inch 84mm / 3.31 inch

PANEL MOUNTING

1- Before mounting the device
in your panel, make sure that
the panel cut-out is suitable.
2- Check front panel gasket
Position.
3- Insert the device through
the cut-out. If the mounting
clamp are on the unit, put out
them before inserting the unit
to the panel.
4- Insert the unit in the panel
5
4
cut-out from the front side.
5- Insert the mounting clamps
to the holes that located top
and bottom sides of device
and screw up the fixing screws
until the unit completely
immobile within the panel.
Panel Cut-out
65 mm / 2.56 inch (min)
EZM-4430
46mm / 1.81 inch(min)
129 mm / 5.08 inch (min)
EZM-4930
92mm / 3.62 inch(min)
EZM-7730
97 mm / 3.82 inch (min)
69mm / 2.72 inch(min)
EZM-9930
129 mm / 5.08 inch (min)
92mm / 3.62 inch(min)
Introduction Brochure. ENG EZM-XX30 01 V04 03/17
