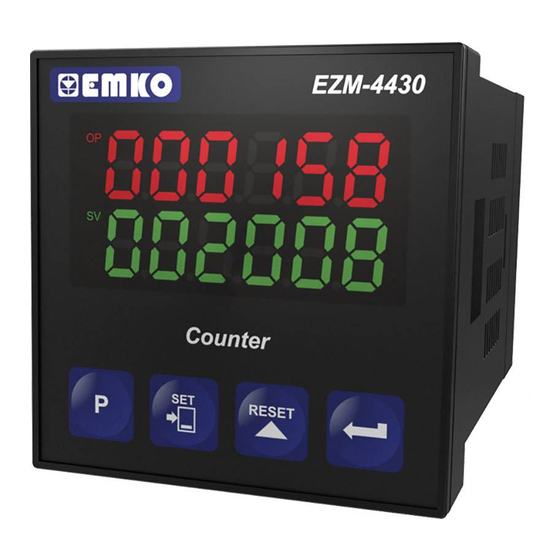

EZM-4430 48 x 48 DIN 1/16
Universal Input Programmable Counter
-
6 digits Process (PV) and 6 digits Set (SV) Value Display
- Operation with 1 Set Value
- Reset , Pause and ChA-ChB Counting Inputs
-
Operation with Automatic and Manual Reset
-
NPN/PNP Type Operation
- INC , DEC , INC / INC , INC / DEC , UP / DOWN , x1 / x2 / x4
Counting with Phase Shifting Property in Counter Function
- Multiplication Coefficient and Decimal Point Position

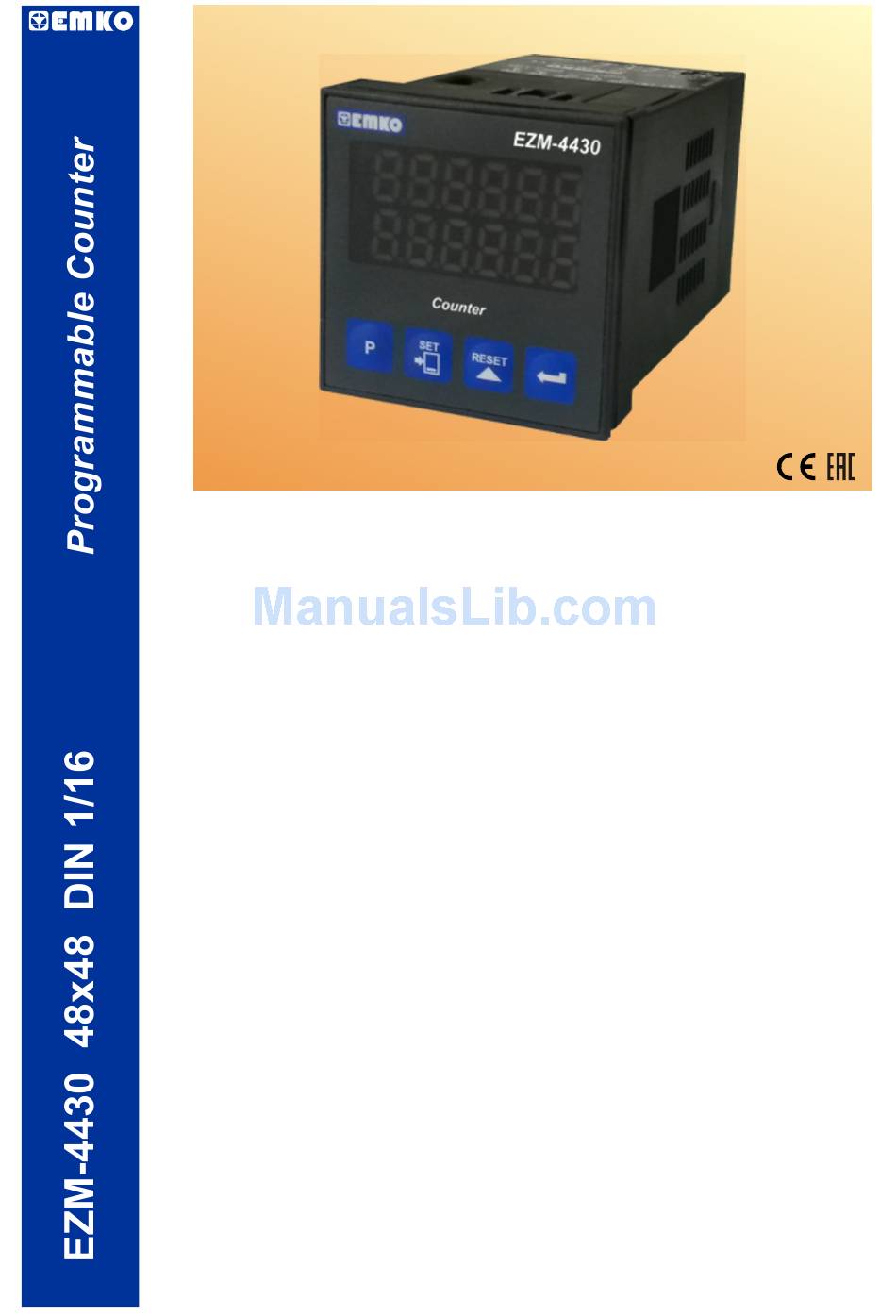

Introduction Manual. ENG EZM-4430 02 V03 08/14
Advertisement
Table of Contents
Related Manuals for EMKO EZM-4430
Summary of Contents for EMKO EZM-4430
- Page 1 - INC , DEC , INC / INC , INC / DEC , UP / DOWN , x1 / x2 / x4 Counting with Phase Shifting Property in Counter Function - Multiplication Coefficient and Decimal Point Position Introduction Manual. ENG EZM-4430 02 V03 08/14...
- Page 2 ABOUT INSTRUCTION MANUAL Instruction manual of EZM-4430 Programmable Counter consists of two main sections. Explanation of these sections are below. Also, there are other sections which include order information and technical specifications of the device. All titles and page numbers in instruction manual are in “CONTENTS”...
-
Page 3: Table Of Contents
3.5.1 PROXIMITY & SWITCH CONNECTION 3.5.2 INCREMENTAL ENCODER & SWITCH CONNECTION 3.5.3 SWITCH CONNECTION 3.6 RELAY OUTPUT WIRING DIAGRAM 3.7 GALVANIC ISOLATION TEST VALUES OF EZM-4430 PROGRAMMABLE COUNTER 4.DEFINITION OF FRONT PANEL AND ACCESSING TO THE SET PARAMETERS......................Page 20 4.1 DEFINITION OF FRONT PANEL... - Page 4 EU DECLARATION OF CONFORMITY Manufacturer’s Name : EMKO ELEKTRONIK A.S. Manufacturer’s Address : DOSAB, Karanfil Sk., No:6, 16369 Bursa, TURKEY The manufacturer hereby declares that the product: Product Name : Programmable Counter Type Number : EZM-4430 Product Category : Electrical equipment for measurement, control and...
-
Page 5: Preface
Filling Systems, Tool Benchs, Measuring Dimension and Control Automation, In Cutting and Processing machine of glass, plastic, marble, sheet, iron and fabric Building Automation. Production bands 1.1 General Specifications EZM-4430 Standart 230 V 50/60Hz Supply Voltage Input Optional Supply Input... -
Page 6: Ordering Information
1.3 Warranty EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely. -
Page 7: Installation
2.Installation Before beginning installation of this product, please read the instruction manual and warnings below carefully. In package , - One piece unit - Two pieces mounting clamps - One piece instruction manual A visual inspection of this product for possible damage occured during shipment is recommended before installation. -
Page 8: General Description
Front Panel IP65 protection Panel surface (maximum thickness 15 mm / 0.59 inch) 2.2 Dimensions Maximum 5 mm / 0.2 inch EZM-4430 Counter RESET 48 mm / 1.89 inch 11.1 ± 1 mm / 0.43 inch 84 mm / 3.31 inch... -
Page 9: Panel Cut-Out
2.3 Panel Cut-out 65 mm / 2.56 inch (min) 46 mm / 1.81 inch (min) -
Page 10: Environmental Ratings
2.4 Environmental Ratings Operating Conditions Operating Temperature : 0 to 50 °C Max. Operating Humidity : 90% Rh (non-condensing) Altitude : Up to 2000m. Forbidden Conditions: Corrosive atmosphere Explosive atmosphere Home applications (The unit is only for industrial applications) 2.5 Panel Mounting 1-Before mounting the device in your panel, make sure that the cut-out is the right size. -
Page 11: Installation Fixing Clamp
2.6 Installation Fixing Clamp The unit is designed for panel mounting. 1-Insert the unit in the panel cut-out from the front side. 2- Insert the mounting clamps to the holes that located top and bottom sides of device and screw up the fixing screws until the unit completely immobile within the panel... -
Page 12: Electrical Wirings
3.Electrical Wirings You must ensure that the device is correctly configured for your application. Incorrect configuration could result in damage to the process being controlled, and/or personal injury. It is your responsibility, as the installer, to ensure that the configuration is correct. Parameters of the device has factory default values. -
Page 13: Electrical Wiring Diagram
Electrical wiring of the device must be the same as ‘Electrical Wiring Diagram’ below to prevent damage to the process being controlled and personnel injury. Sensor Count Inputs Supply Voltage 3 4 5 P/N : EZM-4430 5A@250V 10 11 12 13 14 Supply Voltage Output Relay Output 230V (-%15;+%10) 50/60Hz - 2.3VA... -
Page 14: View Of Device Label
3.3 View of Device Label 230V -%15;+%10 5A@250V 50/60Hz -1.5VA P/N : EZM-4430... -
Page 15: Connection Of Device Supply Voltage Input
3.4 Connection of Device Supply Voltage Input Connection of Supply Connection of Supply Voltage Input Voltage Input Note-2 External External Fuse Fuse (1 A (1 A Power Power Supply Supply Switch Switch Supply Voltage Supply Voltage 115V , 230 V (-%15;+%10) 50/60Hz (-%15;+%10) 50/60 Hz or 24V... -
Page 16: Counting Input Connection
3.5 Counting Input Connection 3.5.1 Proximity & Switch Connection PNP type operation PROX. PROX. NOTE-1 NPN type operation PROX. PROX. NOTE-1 NOTE-1 : Sensor supply voltage: 12V ± 40%, 50 mA maximum with short circuit protection... -
Page 17: Incremental Encoder & Switch Connection
3.5.2 Incremental Encoder & Switch Connection PNP type operation INCREMENTAL ENCODER 10 to 30V NOTE-1 NPN type operation INCREMENTAL ENCODER 10 to 30V NOTE-1 NOTE-1 : Sensor supply voltage: 12V ± 40%, 50 mA maximum with short circuit protection... -
Page 18: Switch Connection
3.5.3 Switch Connection PNP type operation NOTE-1 NPN type operation NOTE-1 NOTE-1 : Sensor supply voltage: 12V ± 40%, 50 mA maximum with short circuit protection... -
Page 19: Relay Output Wiring Diagram
3.6 Relay Output Wiring Diagram T Fuse Last Control Element (Contactor) Fuse Load Fuses must be selected according to the applications. 3.7 Galvanic Isolation Test Results of EZM-4430 Programmable Counter 500V ( for EZM-4430.3 ) 2000V ( for EZM-4430.5 ) Supply Voltage 2000V 2000V... -
Page 20: Counter
4.Definition of Front Panel and Accessing to the Set Parameters 4.1 Definition of Front Panel EZM-4430 Displays Actual Value and Name of Program Parameter Led indication of output Displays SET and is active Parameter Value Counter Led indication of SET... -
Page 21: Power On Observation Of Ezm - 4430 Programmable
When power is applied to the device, software revision number of the controller is momentarily illuminated on actual value display. Then operation screen is observed. When power on, view of the screen is shown below: EZM-4430 Counter Revision number “ rEu” Revision... - Page 22 4.3 Adjustment of SET Value Changing SET Value SET Screen Operation Screen Counter Counter RESET RESET Press Shift button again. When shift button is pressed, 6th digit of SET value starts to flash. SET Screen SET Screen 4th digit of SET value starts to flash.
- Page 23 4.4 Resetting the Count Value Operation Operation Screen Screen Counter Counter RESET RESET When RESET button is pressed, Actual Value becomes the Reset-Offset Value. RESET operation can be realized by Reset button or applying signal to the RESET input. These two operations are named MANUAL RESET in parameters section.
-
Page 24: Accessing To The Program Parameters
4.5 Accessing to the Program Parameters In this section Accessing to the Program parameters process is shown. For details on parameters refer to PROGRAM PARAMETERS section. Operation Password Screen Screen The most significant digit of the parameter (4th digit for this parameter) Counter Counter... - Page 25 Filter time for Reset and The most significant digit of Pause Input the parameter (2nd digit for this parameter) flashes. You can change the p a r a m e t e r w i t h INCREMENT button, save it to the memory and Counter p a s s t o t h e n e x t Press PROG button to exit...
- Page 26 Output Run Type The most significant digit of the parameter (1st digit for this parameter) flashes. You can change the p a r a m e t e r w i t h INCREMENT button, Counter save it to the memory and p a s s t o t h e n e x t Press PROG button to exit parameter with ENTER...
- Page 27 Reset and Set Protection The most significant digit of the parameter (1st digit for this parameter) flashes. You can change the p a r a m e t e r w i t h INCREMENT button, Counter save it to the memory and p a s s t o t h e n e x t Press PROG button to exit parameter with ENTER...
- Page 28 Counter Counter RESET RESET Operation Screen Input types and functions Continue to press ENTER button for scanning all parameters.
-
Page 29: Program Parameters
8. PARAMETRELER 5. Program Parameters Input types and Functions Upcount on rising edge of Ch-A input Ch-A Pause Start Value on Value = 0 the Screen Downcount on rising edge of Ch-A input. Ch-A Pause Start Value on Value = 8 the Screen Upcount on rising edge of Ch-A input. - Page 30 Upcount on rising edge of Ch-A input Upcount on rising edge of Ch-B input Ch-A Ch-B Start Counting to Value on Value = 0 upwards the Screen Start Counting to Value on Value = 8 downwards the Screen Upcount on rising edge of Ch-A input when Ch-B is at 0 Downcount on rising edge of Ch-A when Ch-B is at 1 Ch-A DOWN...
- Page 31 x2 Phase Shifting (for incremental encoders) Upcount on rising edge of Ch-A when Ch-B is at 0 Downcount on rising edge of Ch-A when Ch-B is at 1 Upcount on falling edge of Ch-A when Ch-B is at 1 Downcount on falling edge of Ch-A when Ch-B is at 0 Encoder is travelling Ch-A in the Reverse Direction...
- Page 32 Filter time for Ch-A and Ch-B Inputs It is used to protect against the electrical contact debounce or the signal that is less than the determined pulse time. It can be adjusted from milisecond. If Input types and Functions parameter; is entered then, pulse time for Ch-A and Ch-B Input parameter can not be accessed Filter time for Reset and Pause Inputs...
- Page 33 Output Functions Manual Reset-1. Device continues to count till manual reset is applied. (Output PulseTime is not considered) Count direction : 0 --> P (Upcounting) Reset Reset Offset Output When count value reaches the Set Value, Output Position is changed. Counting process continues over the SET value.
- Page 34 Manual Reset-2. (Output pulse Time is not considered) Counting direction : 0 --> P (Upcounting) Reset Reset Offset Output When count value reaches the Set Value, Output Position is changed. Counting process is not continue over the SET value. Output Pulse Time is not considered.
- Page 35 Manual Reset-3. Device continues to count till manual reset is applied. (Output Pulse Time is considered.) Counting direction : 0 --> P (Upcounting) Reset Reset Offset Output Output When count value reaches the Set Value, Output Position is changed. If Output Pulse time is not 0, then Output Position is changed at the end of the Pulse time.
- Page 36 Automatic Reset-1 Counting direction : 0 --> P (Upcounting) Reset Reset Offset Output Output When count value reaches the Set Value, Output Position is changed. Actual value is reset automatically. Counting starts upcounting from 0 value. If Output Pulse time is not 0, then Output Position is changed at the end of the Pulse time.
- Page 37 Automatic Reset-2 Counting direction : 0 --> P (Upcounting) Reset Reset Offset Output Reset Reset Offset Output When count value reaches the Set Value, Output Position is changed. If Output Pulse time is not 0, then Output Position is changed the old position at the end of the Pulse time.
- Page 38 Counting direction : P --> 0 (Downcounting) Reset Reset Offset Output Reset Reset Offset Output When count value reaches the 0 Value, Output Position is changed. If Output Pulse time is not 0, then Output Position is changed the old position at the end of the Pulse time. Actual value is reset and counting starts from SET value at the end of the Output Pulse time.
- Page 39 Automatic Reset-3 Counting direction : 0 --> P (Upcounting) Reset Reset Offset Output Reset Reset Offset Output When count value reaches the SET Value, Output Position is changed. If Output Pulse time is not 0, then Output Position is changed the old position at the end of the Pulse time.
- Page 40 Counting direction : P --> 0 (Downcounting) Reset Reset Offset Output Reset Reset Offset Output When count value reaches the 0 Value, Output Position is changed. If Output Pulse time is not 0, then Output Position is changed the old position at the end of the Pulse time. Count value starts counting from SET value.
- Page 41 Automatic Reset-4 Counting direction : 0 --> P (Upcounting) Reset Reset Offset Output Reset Reset Offset Output When count value reaches the SET Value, Output Position is changed. If Output Pulse time is not 0, then Output Position is changed at the end of the Pulse time.
- Page 42 Counting direction : P --> 0 (Downcounting) Reset Reset Offset Output Reset Reset Offset Output When count value reaches the 0 Value, Output Position is changed. If Output Pulse time is not 0, then Output Position is changed at the end of the Pulse time. Counting continue under 0 value. Counting value becomes SET and output position becomes old position.
- Page 43 Automatic Reset-5 is not considered. Counting direction : 0 --> P (Upcounting) Reset Reset Offset Output If count value equal or greater than SET value, then output becomes active. If count value less than SET value, then output becomes inactive. is not considered.
- Page 44 Output Run Type Output Normally non-energised Output Normally energised Output Pulse Time It determines how long Output will be active. It can be adjusted from 00.00 to 99.99 seconds. If it is 00.00 second, then it operates indefinitely. For details, refer to the section where output functions defined Point Position for Display No point...
- Page 45 Multiplication Coefficient It can be adjusted from . Changes in this parameter is evaluated when counting starts. If it is multiplication is not performed. So number of pulses are displayed without having any changes. Reset Offset It can be adjusted from For details, refer to the Output Functions section.
-
Page 46: Failure Messages In Ezm-4430 Programmable Counter
6. Failure Messages in EZM-4430 Programmable Counter 1-If the password is not 0, user can access to the parameters without entering the password and by pressing ENTER button. User can see all parameters except for programming password parameter but user can not do any change in the program parameters. -
Page 47: Specifications
Counter Counter RESET RESET Operation Screen Input Types and Functions 2-If Actual Value is flashing and counting is stopped ; It appears if any of the count value is greater than the maximum count value. To remove this warning and reset the count value press RESET button. -
Page 48: Other Informations
Fax : +90 224 261 1912 Repair and Maintenance Service Information: Emko Elektronik Sanayi ve Ticaret A.Þ. Demirtaþ Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA/TURKEY Thank you very much for your preference to use Emko Elektronik Products. Your Technology Partner www.emkoelektronik.com.tr...
Need help?
Do you have a question about the EZM-4430 and is the answer not in the manual?
Questions and answers

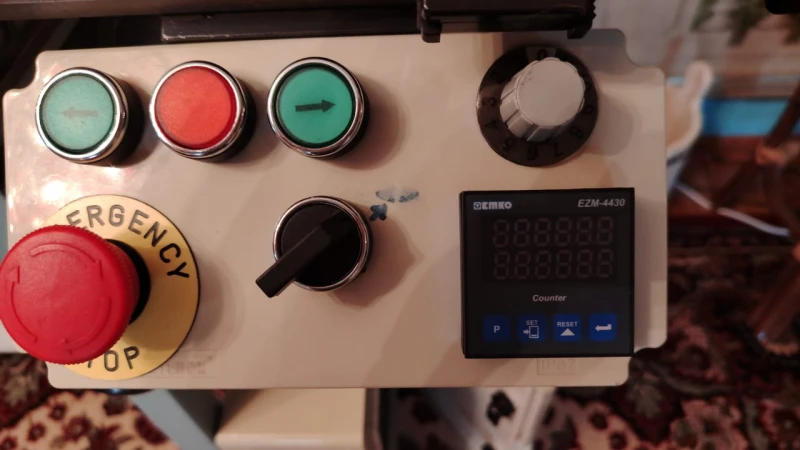

Доброго дня у меня электронная вязальная машина Дюбиед, на ней установлен EZM-4430 для счёта рядов. Вопрос в том, что я не могу установить параметры так чтобы считались ряды, мне нужна помощь, готова оплатить за беспокойство помогите установить параметры чтобы на машине считались ряды.
