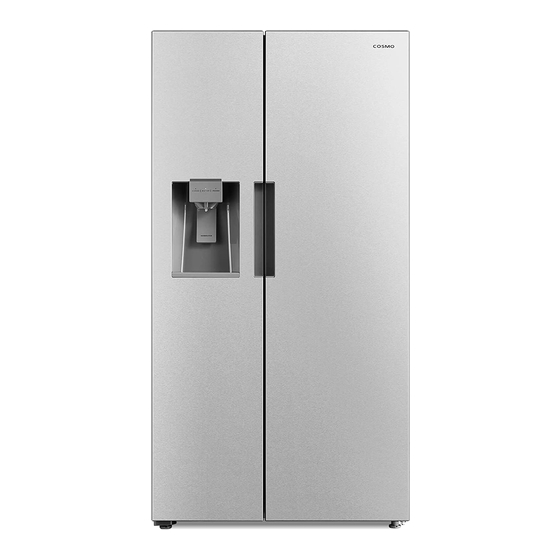

- Page 1 Refrigerator COS-SBSR263RHSS 26.3 cu. ft. Side-by-Side Refrigerator with Ice Maker & Water Dispenser Users Manual IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference...
- Page 2 COSMO Appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY & WARNINGS ............4-7 Electrical Warnings ..............5 Operation Warnings ..............6 Placement Warnings .............6-7 Energy Warnings ...............7 Disposal Warnings ..............7 Correct Disposal of this Appliance ..........7 INSTALLATION ..............8-11 Refrigerator Placement ............8 Adjust Leveling Feet ..............9 Adjust Leveling Door ..............10 Changing the Light ..............11 OPERATION ...............11-16 Energy-Saving Tips ..............11... -
Page 4: Safety & Warnings
SAFETY & WARNINGS WARNING: Risk of fire / flammable materials This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments;... -
Page 5: Electrical Warnings
SAFETY & WARNINGS This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. PROHIBITION This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol, otherwise damage to the product or personal injury may be caused. -
Page 6: Operation Warnings
SAFETY & WARNINGS OPERATION WARNINGS ∙ Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist. ∙ Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger. -
Page 7: Energy Warnings
SAFETY & WARNINGS PLACEMENT WARNINGS (CONTINUED) ∙ Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; the bottles or enclosed containers may crack due to freezing and cause damage to the appliance and/or a safety hazard. -
Page 8: Installation
INSTALLATION REFRIGERATOR PLACEMENT ∙ Before use, remove all packing materials, including bottom cushions, foam pads and tape inside of the refrigerator; remove the protective film on the doors and the refrigerator body. ∙ Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or damp areas, to prevent rust and reduced insulation. -
Page 9: Adjust Leveling Feet
INSTALLATION ADJUST LEVELING FEET Before adjustment, ensure the refrigerator is disconnected from power. Use extreme caution to prevent injury. DIAGRAM: LEVELING FEET To adjust the leveling feet: a. Turn the feet clockwise to raise the refrigerator b. Turn the feet counter-clockwise to lower the refrigerator c. -
Page 10: Adjust Leveling Door
INSTALLATION ADJUST LEVELING DOOR Before adjustment, ensure the refrigerator is disconnected from power. Use extreme caution to prevent injury. DIAGRAM: LEVELING THE DOOR To adjust the top refrigerator door: 1.) Turn the locking nut clockwise and loose 2.) Turn the adjusting nut counter-clockwise to adjust 3.) Lock the locking nut after adjusting To adjust the bottom refrigerator door: 1.) Turn the adjusting nut clockwise to adjust... -
Page 11: Changing The Light
INSTALLATION CHANGING THE LIGHT Replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. OPERATION ∙ Before first use, keep the refrigerator still for 30 minutes before connecting it to power supply. ∙... -
Page 12: Structure (Key Components)
STRUCTURE AND FUNCTIONS... -
Page 13: Buttons / Functions
OPERATION FUNCTIONS DISPLAY Cubed Ice Refrigerating/freezing temperature diagram Ice machine ON/OFF Water Quick freezing ENERGY SAVING mode Crushed Ice Quick refrigerating Lock / Unlock Filter time reset BUTTON OPERATION A. Refrigerating temperature adjustment F. Lock / Unlock B. Freezing temperature adjustment G. - Page 14 OPERATION 1.) Display Door display control A.) When the refrigerator is powered on for the first time, full display will last for 3 seconds, the start-up tone will sound and then enter into the normal operation display. When the power is on for the first time, the set temperature for the refrigerating chamber and freezing chamber is 39 Fahrenheit degrees and 0 Fahrenheit degrees respectively, ice maker opens by default, and the default temperature unit is Fahrenheit.
- Page 15 OPERATION 5.) Freezing chamber temperature setting Press the freezing temperature adjustment button to select the freezing temperature zone, and then press the freezing temperature adjustment button to adjust the freezing chamber temperature. Each time the freezing chamber button is pressed, the temperature shall drop 1°C / 1°F; after the temperature reaches -22°C / -7°F, press the freezing button again, the freezing chamber temperature setting will be -14°C / 7°F.
- Page 16 OPERATION Dispensing Water and Ice ∙ Various sounds are produced when the appliance performs the following actions: ∙ Making ice cubes ∙ Crushing ice with the grinding machine ∙ Water flowing into the ice vessel ∙ Ice cubes falling into the ice container ∙...
-
Page 17: Care & Maintenance
CARE & MAINTENANCE CLEANING ∙ Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. ∙ Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. -
Page 18: Cleaning The Door Tray
CARE & MAINTENANCE CLEANING THE DOOR TRAY ∙ Use both hands to squeeze the door tray inward from the left and right sides, and push it upward to remove (See below diagram). ∙ Place the door tray back into the door to your preferred position. -
Page 19: Cleaning The Glass Shelves
CARE & MAINTENANCE CLEANING THE GLASS SHELVES As the innermost part of the refrigerator liner where contacting the shelves has a backstop, raise the shelves upward, then remove. Adjust the position of the shelves according to your preferences. DEFROSTING The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. -
Page 20: Troubleshooting
TROUBLESHOOTING Please use the following chart to troubleshoot your appliance. For further assistance, please contact customer service (See Page 23). ∙ Check if the appliance is connected to power Refrigerator ∙ Check if the plug is fully plugged into the outlet not working ∙... -
Page 21: Warranty & Service
WARRANTY AND SERVICE For full warranty details on this product please visit: http://www.cosmoappliances.com/warranty TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED. TO REGISTER, VISIT: WWW.COSMOAPPLIANCES.COM/WARRANTY SCAN TO REGISTER... - Page 22 REQUIRED FOR WARRANTY SERVICE IMPORTANT Ne pas Réexpédier ce Produit au Magasin Pour tout problème concernant ce produit, veuillez contacter le service des consommateurs Cosmo Customer Support au +1(888) 784-3108 UNE PREUVE D’ A CHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
- Page 23 NOTE:...
- Page 24 Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...
