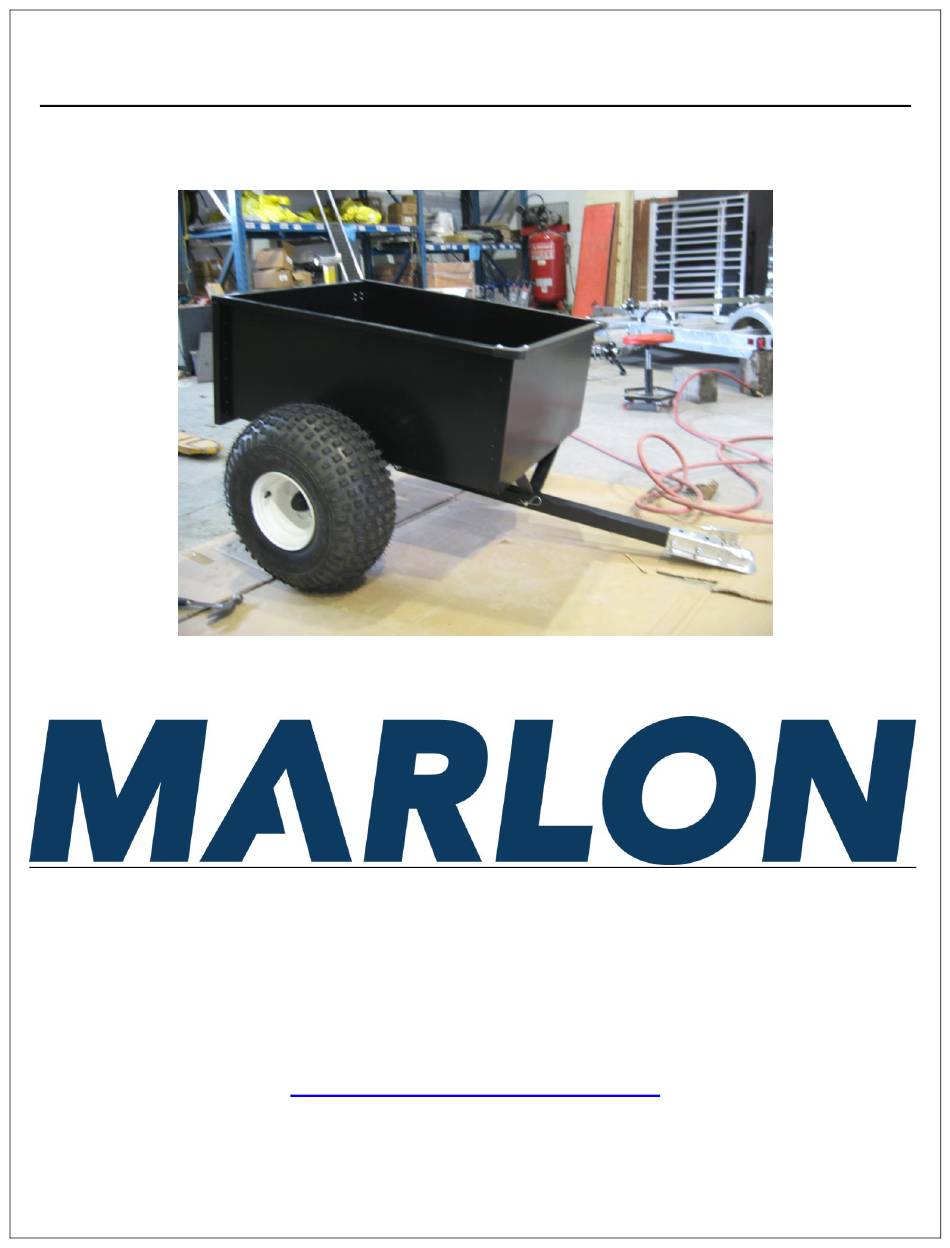

- Page 1 OWNER’S MANUAL MODEL MAR ATV 700 TRAILER Read the manual completely before you use the trailer. Owner & Assembly Manual www.marlonproducts.com...
-
Page 2: Safety Rules
Safety Rules Remember, any piece of equipment like an ATV trailer can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using your tow vehicle and tow trailer. LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. - Page 3 DO NOT ABUSE THE TRAILER. The Marlon trailer performance is best if you follow the guidelines set forth in this manual. Do not force the Marlon trailer to do a job it is not designed for. Know your Marlon trailer; learn its limitations and applications.
- Page 4 WARNING : An overloaded trailer or improper distribution of load weight or shifting cargo can result in the loss of control of trailer, leading to death or serious injury. Do not exceed the trailer Gross Vehicle Weight Rating (GVWR) Tie down all loads with proper sized fasteners, ropes straps, etc. Be sure to: Distribute the load front-to-rear and provide proper tongue weight;...
- Page 5 Assembly instructions for the Marlon ATV 700 Trailer 1. Cut open box be careful not to cut through box and damage the enclosed trailer finish. 2. Unpack your ATV Trailer. Keep cardboard for step 4. 3. Remove tailgate and with two people flip ATV trailer body upside down.
- Page 6 4. Place axel plate on body and use the flat part of the bolt for the inside of the trailer when bolting down. Then place tongue support at the front of the trailer and use two bolts to bolt it down. 5.
- Page 7 7. Attach coupler to the end of the tongue using two bolts. 8. Remove caps from center of the hub lightly grease the zirks on the back of the hub untill you see grease in the front of the hub...
- Page 8 9. Inflate tires to the correct PSI & install on hubs, tighten with lug nuts. Then place water around the rim to check the bead for air leaks. 10. If you notice air bubbles you may have a slow leak. Take the tire and bounce it on even ground and test the rim once again with water to make sure the bead has sealed around the rim properly.
- Page 9 11. Place wheels over hubs and tighten lug nuts torque to 80 ft.lbs. Then with two people flip trailer over. 12. Then put your tailgate back in your trailer and your Marlon ATV 700 trailer is done ready to roll.
