OWNER'S MANUAL

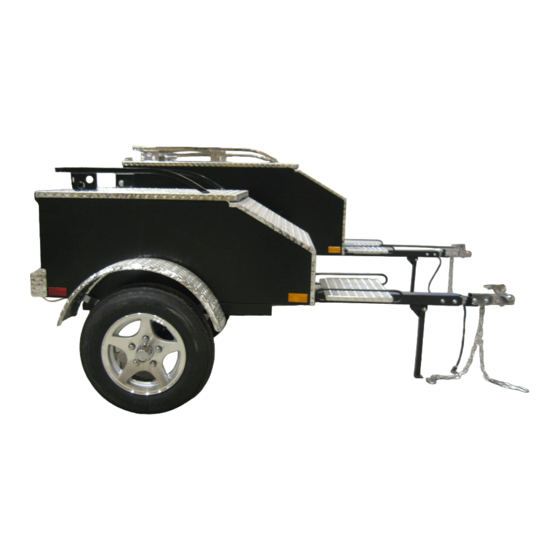

MODEL MAR AMT TRAILER
Read the manual completely before you use the trailer.
Owner & Assembly Manual
www.marlonproducts.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAR AMT TRAILER and is the answer not in the manual?

Questions and answers

Summary of Contents for Marlon MAR AMT TRAILER

  • Page 1 OWNER’S MANUAL MODEL MAR AMT TRAILER Read the manual completely before you use the trailer. Owner & Assembly Manual www.marlonproducts.com...
  • Page 2: Safety Rules

    Safety Rules Remember, any piece of equipment like a motorcycle trailer can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using your tow vehicle and tow trailer. LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS.
  • Page 3 DO NOT ABUSE THE TRAILER. The Marlon trailer performance is best if you follow the guidelines set forth in this manual. Do not force the Marlon trailer to do a job it is not designed for. Know your Marlon trailer; learn its limitations and applications.
  • Page 4 WARNING : Improper electrical connection between the tow vehicle and the trailer will result in inoperable lights and electric brakes, and can lead to collision. Before each use: Check tail/brake light functions properly Check electric brakes (if applicable) function properly WARNING : An overloaded trailer or improper distribution of load weight or shifting cargo can result in the loss of control of trailer, leading to death or serious injury.
  • Page 5 WARNING : An improper coupled trailer can result in death or serious injury. Do not tow trailer until: The coupler is secured and locked to hitch; The coupler is adjusted properly to fit the towing vehicle ball; Tires and wheels are checked; The trailer brakes (if applicable) are checked;...
  • Page 6 Assembly instructions for the Marlon AMT Trailer 1. Cut open box be careful not to cut through box and damage the enclosed trailer finish. 2. Unpack your AMT Trailer. Keep cardboard for step 4.
  • Page 7 3. Carefully cut bubble wrap off of axel’s, tongue, fenders, tie down bar, and trailer body. 4. With the help of 2 people, turn trailer body on its back for assembly. Use cardboard from packaging to protect trailer body. Mount axle in front mounting holes.
  • Page 8 6. Attach tongue to tongue slot in the front of the trailer, and plug wire from the tongue in with the wire from trailer body together. 7. Remove hub dust cap with flat head screw driver. Pump grease into hub threw grease nipple on outer rim of hub;...
  • Page 9 8. Attach both fenders to trailer body using four bolts per fender. Put tire on and tighten lug nuts to torque 80 ft. lbs. Then with the help of two people role trailer over into the upright position. Make sure tires are fully inflated to the proper tire pressure see side of tire.
  • Page 10 Attach cargo platform/cooler rack to tongue using two bolts. 11. Attach tie down bar to lid (top of trailer) using 8 bolts. Place rubber grommets between the lid and the tie down bar.
  • Page 11 Sauder wire together and use heat shirt over sauder to protect wires. Screw two self-taping #10- 16X3/4” (Not supplied) threw the license plate holder into the frame of the trailer body. **Make sure to read all of owner’s manual before using your Marlon AMT Trailer.
  • Page 12 Optional tool box for your Marlon AMT Trailer. Replaces your cargo/cooler rack platform. Optional swivel hitch for your Marlon AMT Trailer. Mount the existing coupler on the end of the swivel hitch and then insert the swivel hitch in the tongue tube. Use the coupler bolts for tightening to tongue and short bolts to fasten the coupler to the swivel hitch.
