Summary of Contents for Storex MediaZapper HD 2

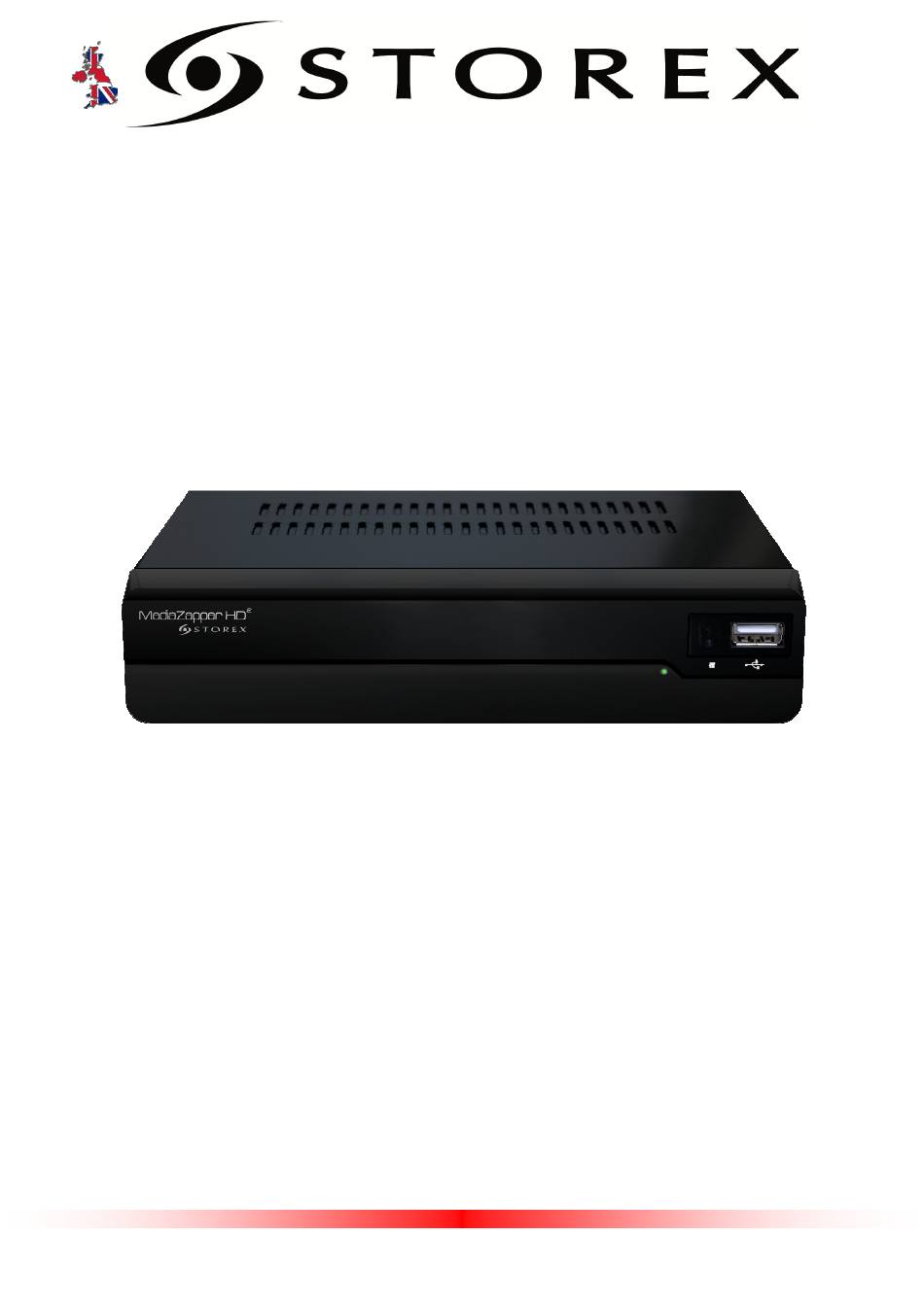

- Page 1 QUICK INSTALLATION GUIDE MediaZapper HD 2 MediaZapper HD 2 Page 1/20...
- Page 2 MediaZapper HD 2 Page 2/20...
-
Page 3: Table Of Contents
FRONT PANEL .................... 5 REAR PANEL ....................5 REMOTE CONTROL BUTTONS ............... 6 CONNECTING THE MEDIAZAPPER HD 2 TO THETV .......... 8 PLAYING A FILE ..................9 INSTALLING THE TNT CHANNELS ............... 11 FIRST USAGE OF THE TNT FUNCTION ............11 VIEWING AND RECORDING DVB-T CHANNELS ............ -
Page 4: Introduction
Your "Medi a Zapper HD 2" is a TNT/HD TNT receiver integrating a live or delayed recording function. The"MediaZapper HD 2" also works as a multimedia gateway allowing you to look at photos and watch videos on High Definition TV, or to listen to music. -
Page 5: Product Details
1. ANT IN: To connect to a wall antenna outlet. ANT OUT: To connect the "MediaZapper HD 2" antenna cable to your TV. 2. HDMI: To connectthe HDMI cable to the "MediaZapper HD 2" and your TV. 3. COAXIAL: Audio output (coaxial). -
Page 6: Remote Control Buttons
EMOTE ONTROL BUTTONS Remote control 1: Refers to the actual remote. Remote control 2: Refers to the numbering of the buttons on the remote. MediaZapper HD 2 Page 6/20... - Page 7 BUTTON FUNCTION STANDBY Turn On/Off (Standby) the MediaZapper HD 2. VIDEO OUT Enables switching between different video display modes MUTE Enables/Disables the sound (Mute). NUMBERED BUTTONS GOTO Goes to a specific point (Time) INFO Displays the information from the selected file...
-
Page 8: Connecting The Mediazapper Hd 2 To Thetv
Rear TV panel Antena cable HDMI cable AV cable Connect your MediaZapper HD 2 to the wall antenna socket to receive TNT and TNT HD channels. Connect the MediaZapper HD 2 to the television with the AV cable (depending upon your configuration). -
Page 9: Playing A File
"ENTER".To use the remote control, please refer to the section on the remote control. Home page 2. Select the folders and files with the arrow buttons and confirm the selection by pressing “ENTER”. MediaZapper HD 2 Page 9/20... - Page 10 Photo page Music page Movie page File page MediaZapper HD 2 Page 10/20...
-
Page 11: Installing The Tnt Channels
Select the "Auto Search" menu by pressing the "ENTER" button. FIRST USAGE OF THE TNT FUNCTION 1. Select the menu language. 2. Select your location (country). 3. To start the automatic channel scan, select "Scan for channels" and press "ENTER” on your remote control. MediaZapper HD 2 Page 11/20... -
Page 12: Viewing And Recording Dvb-T Channels
LIVE RECORDING To record TNT channels, you must have previously connected a USB device to the MediaZapper HD 2. Note: Recordings are stored directly at the root of the connected device (USB key, external hard drive) in the "HBPVR" folder. -
Page 13: Mediazapper Hd 2 Parameters
1. Press the “SETUP” button of the remote control to enter the “SETUP” menu. 2. Use the arrow buttons to select the setting and press “ENTER”. On this page you can change the language. On this page you can change the display resolution of MediaZapper HD 2. MediaZapper HD 2 Page 13/20... -
Page 14: Storex Web Site
TOREX On the STOREX web site you will find a section dedicated to each STOREX product. Visit http://www.storex.eu, select "DVB-T Recorder" then "MediaZapper HD 2". You can download the latest full version of the manual and software updates. ECHNICAL UPPORT If repairs are necessary, please contact your distributor to repair your "MediaZapper HD... -
Page 15: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS STOREX provides a warranty of 1 year for the "MediaZapper HD 2" and 3 months for accessories (remote, AV cables, power adapter, etc.). STOREX guarantees your product against any defects in manufacturing or assembly. This guarantee applies only to a first purchase of the "MediaZapper HD 2"by the end user, and is not transferable if the unit is resold. -
Page 16: Safety Information
Install the appliance far away from any equipment with a strong attraction such as microwave ovens, large speakers and so forth. Place your product in a location with adequate ventilation and on a flat and rigid surface to disperse the heat emitted by the device. MediaZapper HD 2 Page 16/20... -
Page 17: Cleaning
YourSTOREX product has been laboratory tested and is in compliance with European directives related to EC marking in force at the time of its sale. Traceability of the components of your STOREX product was performed, which demonstrated that the product complies with the environmental directive (RoHS) in force at the time of its sale. - Page 18 MediaZapper HD 2 Page 18/20...
- Page 19 MediaZapper HD 2 Page 19/20...
- Page 20 Is a product line of www.storex.eu © STOREX –2011 All trademarks cited are trademarks of their respective owners MediaZapper HD 2 Page 20/20...
