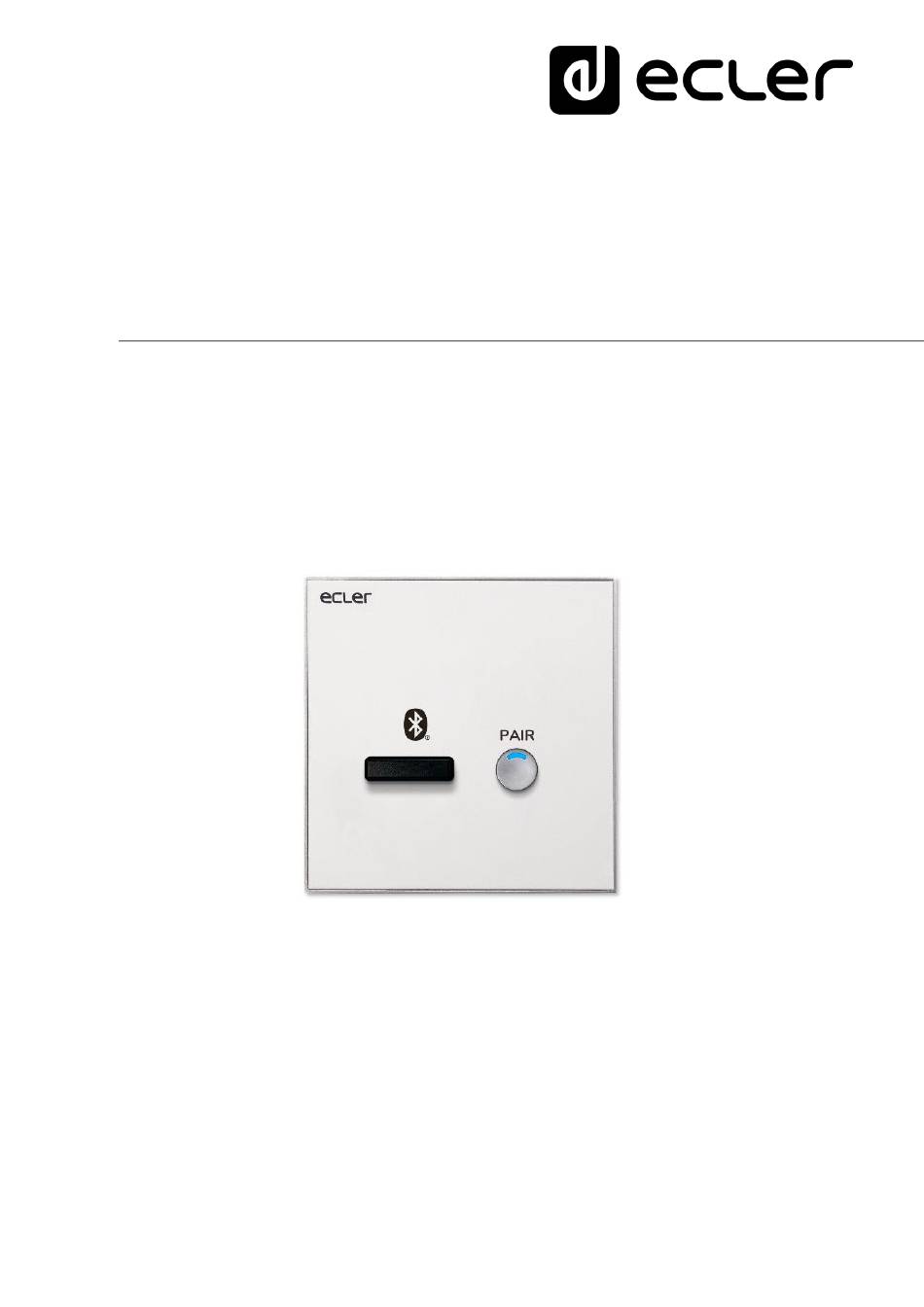

- Page 1 WPaBT REMOTE CONTROLS AND INTERFACES Bluetooth® Receiver Wall Panel USER MANUAL v.20200623...
-
Page 2: Table Of Contents
INSTALLATION ........................9 6.1. Installation of a single unit, on the surface or flush: ............9 6.2. Installation of a WPaBT unit, together with an eMCONTROL1 control panel, on the surface or flush: ..........................9 CONNECTION TO PC ......................10 CONFIGURATION ......................... -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note
Technical Services. Ecler WPaBT comes with a 3-year warranty. INTRODUCTION WPaBT is a Class 1 Bluetooth® receiver with balanced stereo Euroblock output. Surface installation box included. The main features of the WPaBT Bluetooth® Receiver Wall Panel are: •... -
Page 6: Connections
WPaBT requires an external power supply, 24VDC (connected to the DC IN terminals). It is recommended to use the Ecler WP24-PSU power supply, which can power up to 10 WPaBT units (depending on voltage lost as a result of the length and cross-section of the cables) -
Page 7: Remote Control Gpo Ports
5.4. eMCONTROL1 connection WPaBT can provide a remote audio input for a HUB device, using it in combination with eMCONTROL1. Additionally, an external power supply is not required, as power is supplied by the HUB device via eMCONTROL1. - Page 8 If the cable is too long, eMCONTROL1 may work correctly, but noise may appear on top of the signal that is input to WPaBT. The solution to this problem is to use an external 24VDC power supply to power the eMCONTROL1 digital control (it is recommended to use the Ecler WP24-PSU power supply unit ).
-
Page 9: Installation
Replace the front panel and attach the rotating encoder knob (see MOUNTING DIAGRAM chapter). 6.2. Installation of a WPaBT unit, together with an eMCONTROL1 control panel, on the surface or flush: Note: A WPa2FMBOX double box is required in order to mount both devices flush next to each other, or a WPa2SMBOX double box is required for surface mounting. -
Page 10: Connection To Pc
Remove the front cover using the magnet. Be careful not to damage the Bluetooth® antenna (see INSTALLATION chapter) Connect the WPaBT device to one of the USB ports of your computer (Windows ® using a USB-C to USB-A cable Note: Only applicable to units with serial numbers 001 to 100. - Page 11 If the connection is successfully established, a success message will be displayed on the screen. Press OK to continue.
-
Page 12: Configuration
VERSION: indicates the current version of the device’s firmware. • NAME: name under which it appears on other Bluetooth® devices. By default, this is Ecler-WPaBT. This name can be modified, in order to be easily identifiable by a user. •... - Page 13 • MAX DEVICES: sets the maximum number of devices remembered by the WPaBT device. A remembered device does not need to be paired again, and the connection will be established automatically when both devices are in range. The most recently paired device will take priority over older devices. If this is set to 1, it will only remember one device, so it will only connect to the most recently paired device automatically.
-
Page 14: Operation
OPERATION WPaBT has a PAIR button and an activity LED on the front panel. Waiting for connection: LED flashes once every second (heartbeat). This indicates that there is no active connection. Pairing: To pair two devices, press and hold the PAIR button for approximately 2- 3 seconds. -
Page 15: Diagram Of Features
DIAGRAM OF FEATURES Front panel cover Power supply Bluetooth® Antenna Audio R PAIR button Audio L USB-C configuration port... -
Page 16: Technical Characteristics
Ecler Bluetooth Manager ® Pair button Front push - button Pair LED Front LED, BLUE color Programing and control ECLER BLUETOOTH® MANAGER via USB - C Physical Type Bluetooth® Receiver Format Double Gang EU Format Installation options Surface, In - wall... -
Page 17: Mounting Diagram
MOUNTING DIAGRAM ATTENTION magnets The frame’s exert considerable force. Assemble parts carefully, in order to avoid damaging the coating on frame... -
Page 18: Package Contents
PACKAGE CONTENTS • WPaBT • Frame for mounting in single-unit systems • Cover • Magnet for cover removal • Euroblock terminals for power, audio and GPO connections • Surface box Screws for attachment to surface box or to optional mounting boxes •... - Page 19 For technical inquiries, please contact your supplier, distributor or fill in the contact form on our website under Support/Technical Inquiries. Motors, 166-168 08038 Barcelona - Spain - (+34) 932238403 | information@ecler.com www.ecler.com...
