LAUREL 300 Operation & Service Manual

Coin Mechanism Instructions

1. To change vend price, remove the Coin
Mechanism's three mounting screws and pull it for-
ward slightly to disengage its rear flange from the
locating slot at the rear of the Cabinet. Now, move
the Coin Mech to the left to disengage the Actuating
Pin from the slot in the Actuating Arm on the side of
the Magazine.
2. To set the vend price at even dollar amounts ($1.00,
$2.00 or $3.00), the #8 Stop Screw is not required -
only the Diverter Lockout is used on the Coin
Diverters. Put the Diverter Lockout "Up" to close
Diverter #1 for a $1.00 vend setting. Put the Diverter
Lockout "Down" to close Diverter #2 for a $2.00
vend setting. Remove the Diverter Lockout and
rotate it 180° so it leaves both Diverters "Open" for
a $3.00 setting.
3. To set the vend price at 50¢, 75¢, $1.25, etc. use the
#8 Stop-Screw in the appropriately marked stop
hole. Then, either Diverter #1 or #2 will be "closed"
with the Diverter Lockout. For example: to set at
$1.75, put the #8 stop screw in the $1.75 hole and
"close" Diverter #2 by moving the Diverter Lockout
"Down". Example #2: To set at 50¢, put the #8 Stop
Screw in the 50¢ hole and "close" Diverter #1 by
moving the Diverter Lockout "Up".
For vending above $2.00, remove the Nylock nut and
rotate the Diverter Lockout 180° and secure it to the
Coin Platform with the Nylock nut so it leaves both
Diverters in the "Open" position.
Vend #8 Stop Screw #1 #2
Price Location Coin-Diverter Coin-Diverter
50¢
50¢ Hole Closed Open
75¢ 75¢ Hole Closed Open
$1.00 Not Used Closed Open
$1.25 $1.25 Hole Open Closed
$1.50 $1.50 Hole Open Closed
$1.75 $1.75 Hole Open Closed
$2.00 Not Used Open Closed
$2.25 $2.25 Hole Open Open
$2.50 $2.50 Hole Open Open
$2.75 $2.75 Hole Open Open
$3.00 Not Used Open Open
If you need to drop the shelves without going through
the effort of inserting quarters, simply push the Latch
Wire (under each shelf) with your fingernail or any flat
tool, such as a screwdriver.
Customer Service
Should you need repair, parts may be sent to:
Please include phone number and return address.

Limited Warranty

Laurel Metal Products warrants that the goods
described in this warranty are free from defects in
workmanship and materials for the period of six (6)
months.
For breach of the express warranty and any implied
warranty on this product, you are limited to the fol-
lowing damages:
If within six (6) months from the date of purchase,
this product fails due to a defect in materials or
workmanship, Laurel Metal will repair or replace it
free of charge. In no event shall Laurel Metal be
liable for incidental or consequential damages.
Laurel Metals' liability for any claims arising out of
this warranty shall not exceed the purchase price of
the product.
NOTE: some states do not allow the exclusion or
limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to
you.
This warranty does not cover damage resulting from
accident or from misuse or alteration of the product.
The term of this warranty begins on the date the prod-
uct is purchased by you, and continues for a period of
six (6) months from that date.
To obtain performance of any obligation under this
warranty, you must return the complete product
prepaid, together with a description of the problem,
Diverter
approximate date of purchase, your name, address
Lockout and telephone number, to the address listed above.
Up
This warranty gives you specific legal rights, and you
may also have other rights that vary from state to state.
Up
Up This warranty covers any mechanical vender manu-
factured by Laurel Metal Products.
Down
Down
Down
Down
Rotate 180°
Rotate 180°
Rotate 180°
Lincolnwood, IL 60712
Rotate 180°
Toll Free (888) 528-7358
Fax # (847) 674-0094
www.laurelmetal.com
11/05
Laurel Metal Products
3500 W. Touhy Ave.
Lincolnwood, IL 60712
3500 W. Touhy Ave.
(847) 674-0064

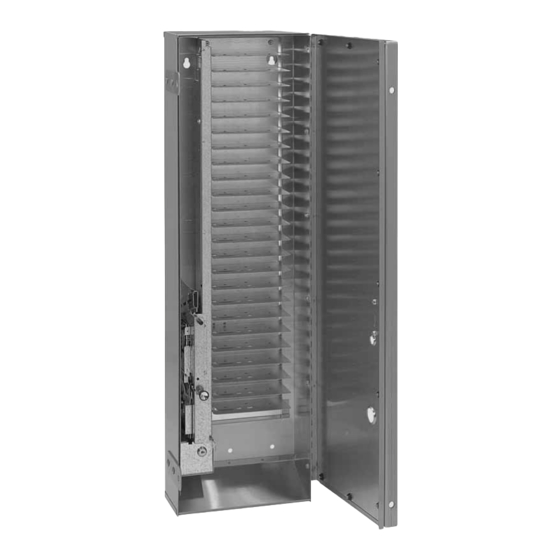

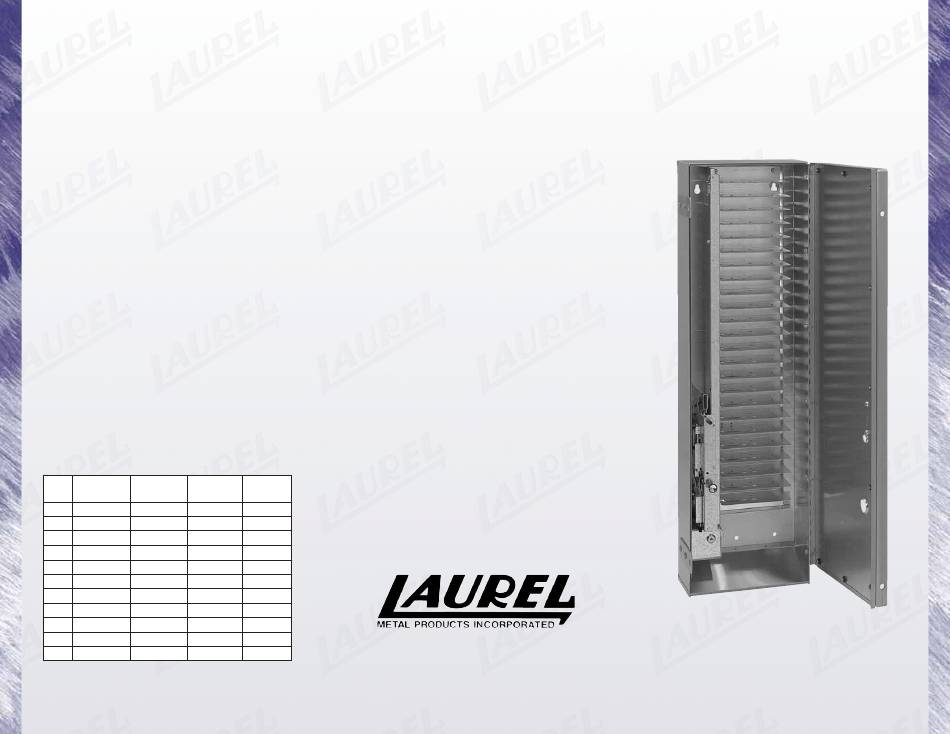

MODEL 300
Drop Shelf Vender
Operation & Service
Manual
