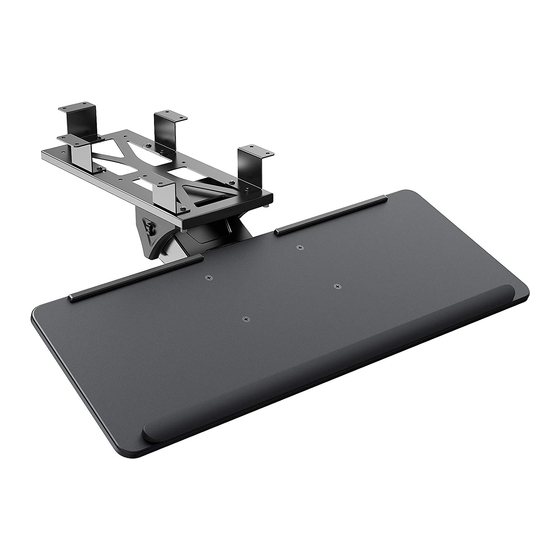

Keyboard Tray Instruction Manual
Website:
www.huanuoav.com
Model: HNKB04
Thank you for choosing this HUANUO product! At HUANUO we strive to
provide you with the best quality products and services in the industry.
Please share your experience of our product with others at
www.huanuoav.com/reviews if you are satisfied. Should you have any
issues, please don't hesitate to contact us.
Technical Support:
1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
support@huanuoav.com (US/CA)
V4.0
Advertisement
Related Manuals for HUANUO HNKB04
Summary of Contents for HUANUO HNKB04
- Page 1 Keyboard Tray Instruction Manual V4.0 Model: HNKB04 Thank you for choosing this HUANUO product! At HUANUO we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others at www.huanuoav.com/reviews if you are satisfied.
-
Page 2: Important Safety Information
Important Safety Information Please carefully read all manual before use the product. If you do not understand the manual or have any concerns or questions about the safety of the use, please contact our Technical Support line at 1-800-556-0533 or customer service at support@huanuoav.com. - Page 3 Supplied Parts and Hardware [A] x8 [B] x8 [C] x2 [D] x4 [E] x2 Screw Washer Bolt Bolt Cable Clip ST4.8x16mm M4x8mm M5x12mm [F] x8 [01] x1 [02] x1 [03] x4 Bolt Bottom Plate Plastic Cap Connector M5x6mm [05] x1 [06] x1 [07] x1 Keyboard Tray Support...
- Page 4 Drill 6 pilot holes using a 5/64 in. (2mm) diameter drill bit. 5/8 in. (16mm) ø5/64 in. (2mm) Phillips Screwdriver (Not Included) Note: The bottom plate opening should be outward during the installation. Install the bottom plate [01] under the table with screws [A] and washers [B], and then tighten the screws.
- Page 5 2 1 1 / 6 4 i ( 5 5 m m ) Position the bottom plate [01] at your desired place. Reserve 2 11/64in. (55mm) spacing between the bottom plate edge and the table edge and mark the positions for drilling Drill 8 pilot holes using a 5/64 in.
- Page 6 Option C: For Table with Beams Installation [03] Beam Beam Thickness ≤2 23/64in.(60mm) 2 1 1 / 6 4 i ( 5 5 m m ) Position the bottom plate [01] at your desired place. Reserve 2 11/64in. (55mm) spacing between the bottom plate edge and the table edge and mark the positions for drilling...
- Page 7 Install the bottom plate [01] under the table with screws [A] and washers [B], and then tighten the screws. Phillips Screwdriver (Not Included) Step 2 Secure the Keyboard Tray Support to Bottom Plate [05] Install the keyboard tray support [05] to the bottom plate opening.
- Page 8 Step 3 Secure the Keyboard Tray to the Keyboard Tray Support Choose to install the long pad or not according to your needs. [07] Tighten the bolts [D] Note: If the keyboard tray can’t match with the mounting holes, please loosen the knob in the lower right before installation.
-
Page 9: Height Adjustment
Height Adjustment Knob Please loosen the knob, then adjust the height of the keyboard tray for using it in comfort. Tighten the knob after adjusting. Tilt Adjustment Knob Please loosen the knob, then adjust the tilt angle of the keyboard tray for using it in comfort, tighten the knob after adjusting. - Page 10 Step 5 Manage the Cables There is a sticky pad on this side to organize and fix the cable on the table. Manage cables: Fix the mouse cable to the table board with cable clip [E].
- Page 11 Thank you again choosing this HUANUO product! All of us at HUANUO do appreciate your product purchase. We hope that you are as happy with your product as we are designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
- Page 12 HUANUO offers products in these categories Monitor Stands Laptop Tables Lap Desks Desktop Converters Desk Mounts TV Trays Printer Stands Stand Risers Please remember us when you need one.
