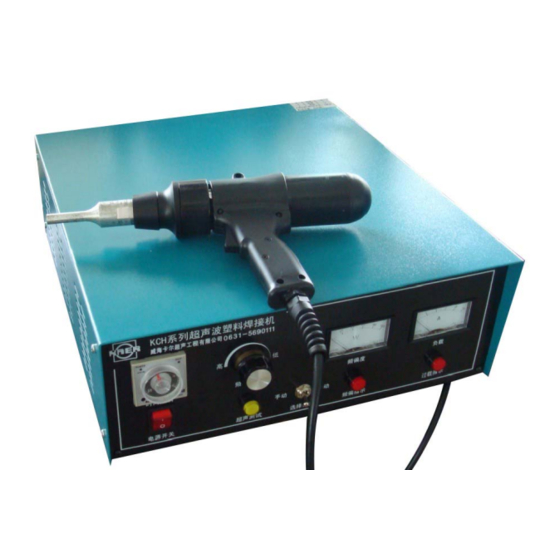

- Page 1 KCH Series Hand-type Ultrasonic Plastic Welding Machine Instruction Weihai Kaer Sonic Power Co., Ltd. Read the users manual carefully before use.
-
Page 2: Special Statement
4. The contents of this manual is only for reference, any questions please contact the service hotline: 86-631-5690111. 5. This manual and the equipment technical data belongs to Weihai kaer Sonic Co., Ltd., No permit for any change and copy. - Page 3 And the weld strength compares favorably with that of a weldment itself. KCH series hand-type ultrasonic plastic welder has such features as high automation, easy and safe operation, stable and reliable running, etc.
- Page 4 KCH Series Hand-type Ultrasonic Plastic Welding Machine Weihai Kaer Sonic Power Co., Ltd. www.kaer-welder.com info@whkcs.com - 3 -...
-
Page 5: Main Technical Parameters
KCH Series Hand-type Ultrasonic Plastic Welding Machine 2. Equipment normal operating instruction When the equipment has installed and commissioning, operator holds the hand-type welding head with one hand, after adjusting the welding head relative to workpiece position, force’s strength and direction, to press the control handle ， and the equipment will send ultrasonic as pre-setting welding time to complete welding process. -
Page 6: Installation And Commissioning
2. Commissioning the operational parameters 1) Parameters of working frequency The power generator of KCH series hand-type ultrasonic welding machine can track the working frequency of the transducer automatically within certain range of working frequency (i.e. working frequency band). However, influenced by external factors, changes of the transducer’s natural frequency may exceed the generator’s working... - Page 7 2) Load parameters KCH series hand-type ultrasonic welding machine can adjust load parameters automatically according to the load. Under normal status, the load under no load is the lowest (less than 0.5A), and the load is related to the factors like the welded work piece and the welding pressure in the process of welding.
- Page 8 KCH Series Hand-type Ultrasonic Plastic Welding Machine 3) Pressure parameters Selection and adoption of pressure parameters often relates to such factors as the welding area and the material of the weldment, and the amplitude of welding head, etc. The pressure parameters exert direct influence on the output load of the welder.
-
Page 9: Equipment Maintenance
KCH Series Hand-type Ultrasonic Plastic Welding Machine pollution; 8. Proper ventilation facilities should be made available when processing noxious plastic parts or those with peculiar smell, 9. Stop and check the machine immediately in case any abnormal noise occurs or transducer system heats to over 50 during operation. - Page 10 KCH Series Hand-type Ultrasonic Plastic Welding Machine e. The logic wire or logic board is in contact with the ground wire, or too close to the ground wire. f. The connecting plug-in units of the logic wire are in bad contact.
- Page 11 Therefore, this manual is only for your reference, with your concrete model subject to the real machine. 2. Weihai Kaer Sonic Power Co., Ltd. reserves the right for interpretation and revision for this manual. This manual is subject to change without notice.
