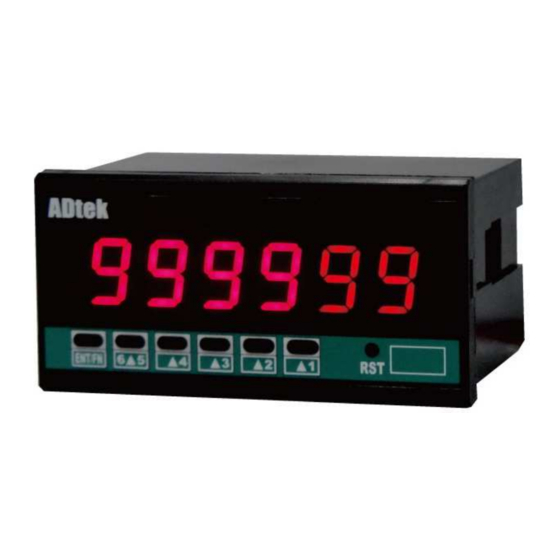

- Page 1 CM1-CT MULTIFUNCTION COUNTER Manual Rev 1.1 2017-02...
- Page 2 MULTIFUNCTION COUNTER CM1-CT CM1-CT multifunction counter has 2 pulse inputs, applicable to proximity switch, photoelectric sensor, encoder etc.. Counting function can be increase or decrease, positioning, batch count etc.., it’s provided with display, Relay output and Modbus RTU communication port.
- Page 3 ■ Operating Key Operating Key : Up key (1~6, 5 and 6 are same a key) Enter/Function key In parameter setting page, if didn’t press any key over 2 minutes, or press over 1 second, then return to measuring page Function (1) In function index page, press 1 second to back to previous page (2) In function setting page, press 1 second to back to function index page...
- Page 4 Present value ry1ot Relay 1 action time aols Output Low scale group RS485 Group pvtyp display select setting setting 0.00 rs485 0.00.0~9(M).59.9(S) 0~+99999 Counting Meter Length Relay 2 action adres Station address ppr Output pulse per ry2md aohs Output High scale mode select 1~247 rotation setting...
- Page 5 ■ Relay Action Mode Optional 2 relay output for N/C/R/E/F/Q/L/H 8 types of control mode. Function details as below Input mode Operation after count completion Down Up/Down-counting UP - D OW N- UP /D OW N- The outputs and Reset present value display are held until reset 9 9 9 9 9 9...
- Page 6 Input Operation after count completion phase different up or down A B - ， The display continues to 。 increase / decrease until the Reset ， overflow or underflow value is 999999 。 OUT1 reached. ， Set 2 Out 1 is held while the present 。...
- Page 7 ■ Communication Table User Level Name Name Address Address Range Range Explain Explain Initial Write/Read Note Initial Note 0000h 0000h count pv conut pv -199999~999999 Present Value -199999~999999 Present Value 0001h 0001h Input Group Name Address Range Explain Initial Note Input Type 0002h intyp...
