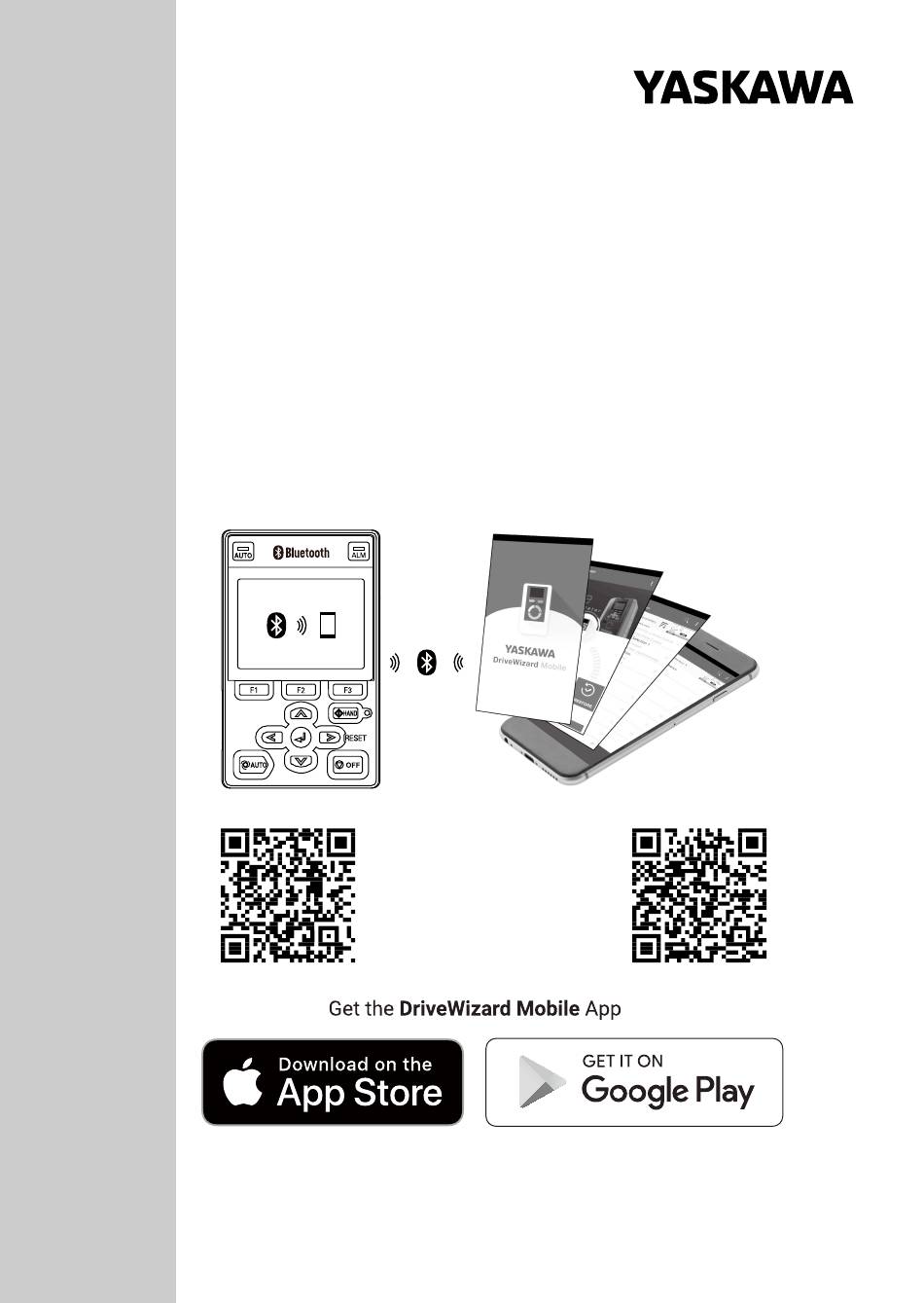

Yaskawa AC Drive Option
Bluetooth HOA Keypad
Installation Manual
Type: JVOP-KPLCD04AxB
To properly use the product, read this manual thoroughly and retain for easy
reference, inspection, and maintenance. Ensure the end user receives this
manual.
MANUAL NO. TOEP C730600 0CA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JVOP-KPLCD04AxB and is the answer not in the manual?

Questions and answers

Related Manuals for YASKAWA JVOP-KPLCD04AxB

Summary of Contents for YASKAWA JVOP-KPLCD04AxB

  • Page 1 Yaskawa AC Drive Option Bluetooth HOA Keypad Installation Manual Type: JVOP-KPLCD04AxB To properly use the product, read this manual thoroughly and retain for easy reference, inspection, and maintenance. Ensure the end user receives this manual. MANUAL NO. TOEP C730600 0CA...
  • Page 2 This Page Intentionally Blank YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 3: Table Of Contents

    Bluetooth Mode ........29 YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 4 Revision History ....... . . 56 YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 5: Preface And Safety

    Manuals You can download the Technical Manual from the Yaskawa website shown on the back cover of this manual. Note: This manual shows typical examples. Different drive models can have different functions. Refer to the drive manuals for more information.

  • Page 6: Registered Trademarks

    This signal word identifies a hazard that will cause serious injury or death if you do not prevent it. WARNING This signal word identifies a hazard that can cause death or serious injuries if you do not prevent it. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 7: Use Precautions

    • If you damage or lose manuals, contact a Yaskawa representative or the nearest Yaskawa sales office shown on the rear cover of the manual, and tell them the document number on the front cover to order new copies.

  • Page 8: Receiving

    If you have problems with the option, contact the distributor where you purchased the option or the Yaskawa sales office immediately. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 9: Component Names And Functions

    4 Component Names and Functions ◆ Option Package Contents Option Contents Quantity Bluetooth HOA Keypad Installation Manual (This document) Component Names and Functions Figure 4.1 Keypad YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 10 The OFF key has highest priority. Push stop the motor even when a Run command is active at an external Run command source. Set o2-02 = 0 [STOP Key Function Selection = Disabled] to disable priority. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 11 • Refer to “Maintenance & Troubleshooting Manual Cover (TOEPYAIHV6001)” for more information about replacement procedure. To replace the battery, use a Hitachi Maxell “CR2016 Lithium Manganese Dioxide Lithium Battery” or an equivalent battery with these properties: YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 12: Indicator Leds And Drive Status

    • During PI Sleep Double HAND Mode blink When you clear the Run command and enter the Run command again during the time set in C1-02 [Deceleration Time 1] YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 13 When an MFDI sends a Fast Stop signal to stop the drive Figure 4.2 AUTO LED and HAND LED Timing Status Figure 4.3 LEDs and Drive Operation in AUTO and HAND Modes YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 14: Installation And Primary Operation

    If you bend the cables too much, it can break the wires and loosen connections. Note: Use Yaskawa connection cables or recommended cables only. Incorrect cables can cause the drive or option to function incorrectly. ◆...

  • Page 15: Connecting The Keypad And Smart Device

    Note: • Access the URL on the back cover of this manual to register for an account. • For Japan: Member ID and password to the Yaskawa product and technical information website • For the Americas: Direct your web browser to https://www.yaskawa.com/dwm and click on "Create New Account"...

  • Page 16: Install Drivewizard Mobile

    • For Android devices: Google Play Store Table 5.1 QR Codes App Store Google Play Store Refer to Table 5.2 for operating systems and drives compatible with the DriveWizard Mobile App. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 17: Enabling Bluetooth Communications

    9.0, 10.0 or iOS 10, 11, 12, 13 • Support for Bluetooth 4.0 or 4.1 ■ Enabling Bluetooth Communications Push two times on the initial Setup screen. Push to select [Parameters] then push YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 18 5 Installation and Primary Operation Select [A Initialization Parameters] then push Select [A1 Initialization] then push Select [Bluetooth ID] then push YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 19 Operation Mode when you push a key other than • When the keypad is idle for longer than 60 seconds, the keypad will automatically go back to Bluetooth Mode, even after you change to Normal Operation Mode. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 20: Connect To The Drive

    Tap [Log In] to Log into DriveWizard Mobile. Use your Drive Cloud ID and password. If you do not have an account, tap [New Member Registration] to create an account before you continue. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 21 5 Installation and Primary Operation Tap [Help and Product Manuals] on the Home Screen, select the drive model to connect, and download the product information. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 22 5 Installation and Primary Operation Tap [Smart Operator]. Select [Bluetooth] then tap [Connect]. Note: This dialog screen is only for Android smart devices. Skip this step for iOS devices. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 23 5 Installation and Primary Operation YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 24 [Drive Information] menu in DriveWizard Mobile to change the "Serial Number" to a different value. • If you did not download the product information of the connected drive, download the product information as specified by the dialog. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 25 Make sure that the screen shows the correct drive information and tap [YES]. Note: Make sure that the LED status ring of the connected drive is flashing. Figure 5.4 LED Status Ring YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 26 Check the [Save Bluetooth ID] checkbox to skip this step in the future. When you connect the drive and your smartphone or tablet, the smart device will show the list of U1: [Operation Status Monitors]. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 27: Disconnect Bluetooth Communications

    DriveWizard Mobile to operate the drive. ■ Disconnect Bluetooth Communications The operation to disconnect Bluetooth communications is different for different operating devices. Table 5.3 lists the disconnection methods for each operating device. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 28 • Set A1-12 = 0000 [Bluetooth ID = 0000] to keep the keypad in Normal Operation Mode in these conditions: –The keypad was idle, for example during Auto-Tuning –The keypad must not switch from Normal Operation Mode to Bluetooth Mode YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 29: Bluetooth Mode

    Bluetooth communications and change to Normal Operation Mode. When the keypad is idle for longer than 60 seconds, the keypad will automatically go back to Bluetooth Mode, even after you change to Normal Operation Mode. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 30: Key Functions In Bluetooth Mode

    Table 5.4 Key Functions Function Stops drive operation and switches the keypad to Normal Operation Mode. Shows the confirmation screen to disconnect Bluetooth Mode. Select [YES] to switch to Normal Operation Mode. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 31: Bluetooth Mode Screen Displays

    • The keypad is waiting for the smartphone or tablet to enter the Bluetooth ID. There is a problem with the connection to the smartphone or tablet. Note: After 2 seconds, the drive goes back to the connection standby screen. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 32: Remote Keypad Installation Methods

    ■ Optional Items The optional remote-control extension cable and installation support set are necessary for Internal/Flush-Mount installation. Contact Yaskawa or your nearest sales representative to order mounting brackets and mounting hardware. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 33 • M3 screws: 6 mm (0.24 in) depth Phillips recessed pan head machine screws (2) Part numbers for the Americas are UWR0051 and UWR0052. Contact Yaskawa or your nearest sales representative for more information. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 34: External Keypad Dimensions

    5 Installation and Primary Operation ■ External Keypad Dimensions Figure 5.6 Exterior and Mounting Dimensions Minimum bending radius YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 35: Procedure

    Use the panel cut-out dimensions in Figure 5.7 to cut an opening in the control panel for the keypad. (0.87) Figure 5.7 Panel Cut-Out Dimensions to Attach Outside of Control Panel YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 36 Use M3 screws (6 mm (0.24 in) depth cross-recessed pan head screws) to attach the keypad from the inside. Tighten the screws to a tightening torque of 0.49 N∙m to 0.73 N∙m (4.34 in∙lb to 6.46 in∙lb). YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 37 5 Installation and Primary Operation A - Keypad C - Enclosure panel B - M3 screws D - Screw mounting hole Figure 5.9 Mount to the Outside of Control Panel YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 38 Connect the Drive to the Keypad Install to the Inside of a Control Panel To attach the keypad inside of the control panel, you must purchase an installation support set, which is sold separately. Contact YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 39 5 Installation and Primary Operation Yaskawa or your nearest sales representative to order mounting brackets and mounting hardware. Note: • The installation procedure and panel cut-out dimensions are the same for mounting brackets A and B. • Use a gasket between the control panel and the keypad in environments with a large quantity of dust or other unwanted airborne material.
  • Page 40 Use the screws supplied with the installation support set, and tighten them to a tightening torque of 0.49 to 0.73 N∙m (4.34 to 6.46 in∙lb). YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 41 Tighten the screws to a tightening torque of 0.98 to 1.33 N∙m (8.67 to 11.77 in∙lb). YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 42 5 Installation and Primary Operation A - M4 screw B - Enclosure panel Figure 5.14 Mount Mounting Bracket to the Interior of the Control Panel YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 43 D - Keypad extension cable E - Cable connector B - Communications connector C - Drive Figure 5.15 Use the Remote Control Extension Cable to Connect the Drive to the Keypad YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 44: Replace The Keypad Battery

    • Ambient temperature 20 °C (68 °F): 5 years • Ambient temperature -10 °C to +50 °C (14 °F to 122 °F): 3.5 years De-energize the drive and remove the keypad. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 45 • The battery cover side is the positive pole. Make sure that the polarity is correct when you put the battery in the keypad. • Discard the used battery as specified by local regulations. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 46: Related Parameters

    Install the keypad on the drive. Related Parameters These parameters set the drive to operate with Bluetooth Keypad. Set parameters as necessary. Refer to the drive manual for information about how to set parameters. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 47 Refer to the drive manual for the default setting. 0 : Ramp to Stop 1 : Coast to Stop 2 : Fast Stop (Use C1-09) 3 : Alarm Only 4 : No Alarm Display YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 48: Fault Diagnostics And Solutions

    Note: The smartphone or tablet and the keypad could possibly not connect in distances nearer than 10 m (32.8 ft) because of smartphone or tablet specifications. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 49: Standards Compliance

    ◆ European Standards (RE Directives) This product complies with the EU Radio Equipment Directive (RED). Importers, distributors, and manufacturers may be responsible for damages under this RED wireless directive. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 50: Fcc And Ic Certifications

    Using this device in residential areas may cause harmful interference. The customer shall be responsible for any consequences of using this product in such environments. • Yaskawa may demand the disuse of this product if you or your customer modifies the product. ■...

  • Page 51: Japan Radio Law

    PC functions that format and delete the data may not be sufficient to fully erase the microSD card data. Yaskawa recommends that customers physically destroy the microSD card in a shredder or use data wipe software to fully erase the card.

  • Page 52: Weee Directive

    Operating Ambient Humidity -20 °C to +70 °C (-4 °F to +158 °F) Storage Ambient Temperature (short-term storage temperature during transport) Indoor (an area without corrosive gas, or dust) Area of Use YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 53 Bluetooth Standard Bluetooth Ver. 4.1 Single Mode (Smart) Certification Bluetooth SIG Registered Antenna Type Planar-inverted F-type internal PCB antenna Radio Band 2400 to 2480 MHz Antenna Gain Maximum of 0.5 dBi YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 54: Warranty

    During the post-warranty repair period, Yaskawa will repair or replace damaged parts for a fee. There is a limit to the period during which Yaskawa will repair or replace damaged parts. Contact Yaskawa or your nearest sales representative for more information.
  • Page 55 If you do not correctly install safety devices, it can cause serious injury or death. YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...

  • Page 56: Revision History

    Revision History Date of Revision Section Revised Content Publication Number February 2020 First Edition YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 57 YASKAWA TOEP C730600 0CA Bluetooth HOA Keypad Installation Manual...
  • Page 58 Specifications are subject to change without notice for ongoing product modifications and improvements. © 2020 YASKAWA Electric Corporation MANUAL NO. TOEP C730600 0CA <0>-0 Published in Japan February 2020...
