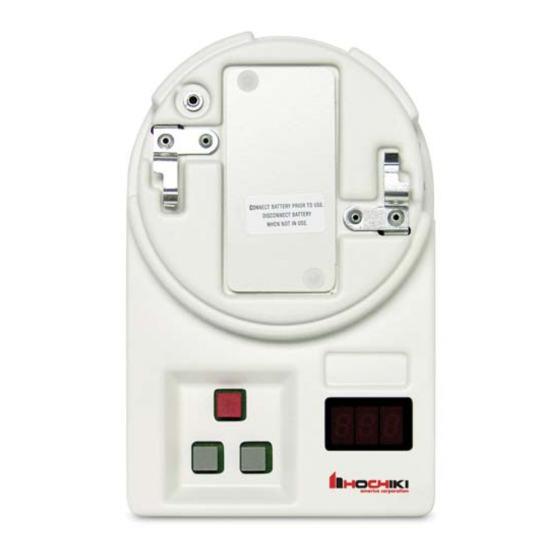

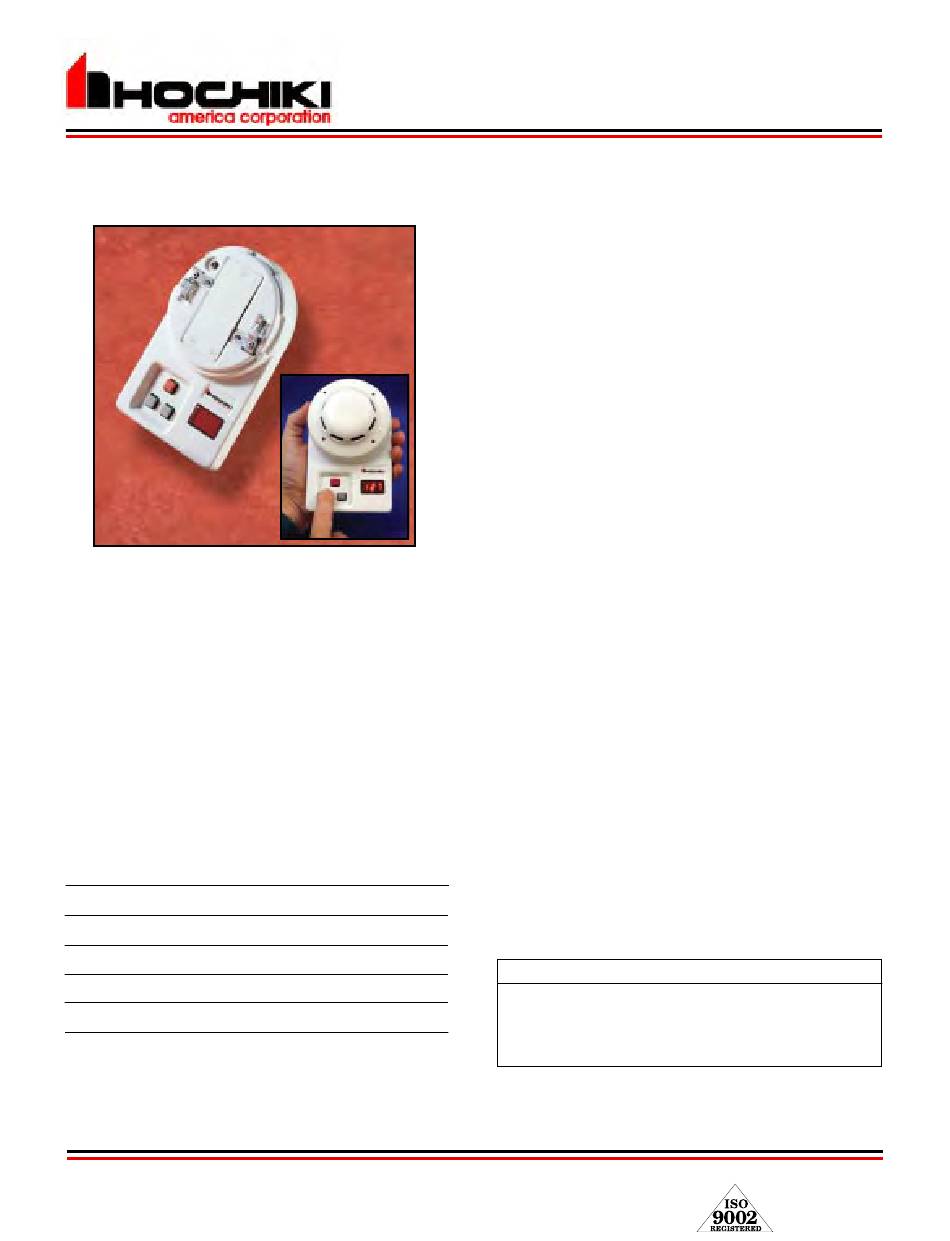

TCH-B100 HAND-HELD PROGRAMMER
•
Compact unit
•
Easy to use
•
Provides address setting and reading
•
Can be used on both sensors and modules
•
Has the diagnostic ability to display the
analog value
•
Over 8000 address settings from one battery.
Rated Voltage:
Battery:
Weight:
Length:
Color:
Hochiki America Corporation
7051 Village Drive, Suite 100 • Buena Park, CA 90621-2268
Phone: 714/522-2246 • Fax: 714/522-2268
Technical Support: 800/845-6692 or technicalsupport@hochiki.com
TCH-B100 is designed for use with all analog sensors
and modules.
ADDRESS SETTING:
1. Install sensor onto programmer, ensuring that
sensor protrusions align with programmer grooves.
2. Press the left gray button to switch programmer on.
A battery check message will appear followed by
the device's address (Unprogrammed sensors will
read address 127).
3. Set the required address by incrementing the left
and right gray buttons (the display will show three
red flashing dots if the address being programmed
is different from the device's current address).
4. When the desired address is present, press the red
button to store that address. The three red dots on
the display will no longer be present.
9 VDC
9 VDC
0.34 lbs
PRODUCT PARTS
6 1/4"
•
9 Volt Battery
White
•
Remote Programming Cables
Continued on back
Find latest revision at www.hochiki.com
9/2003
