USER'S MANUAL
Console Table
HW64005

Advertisement

loading
Need help?

Need help?

Do you have a question about the HW64005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Costway HW64005

Summary of Contents for Costway HW64005

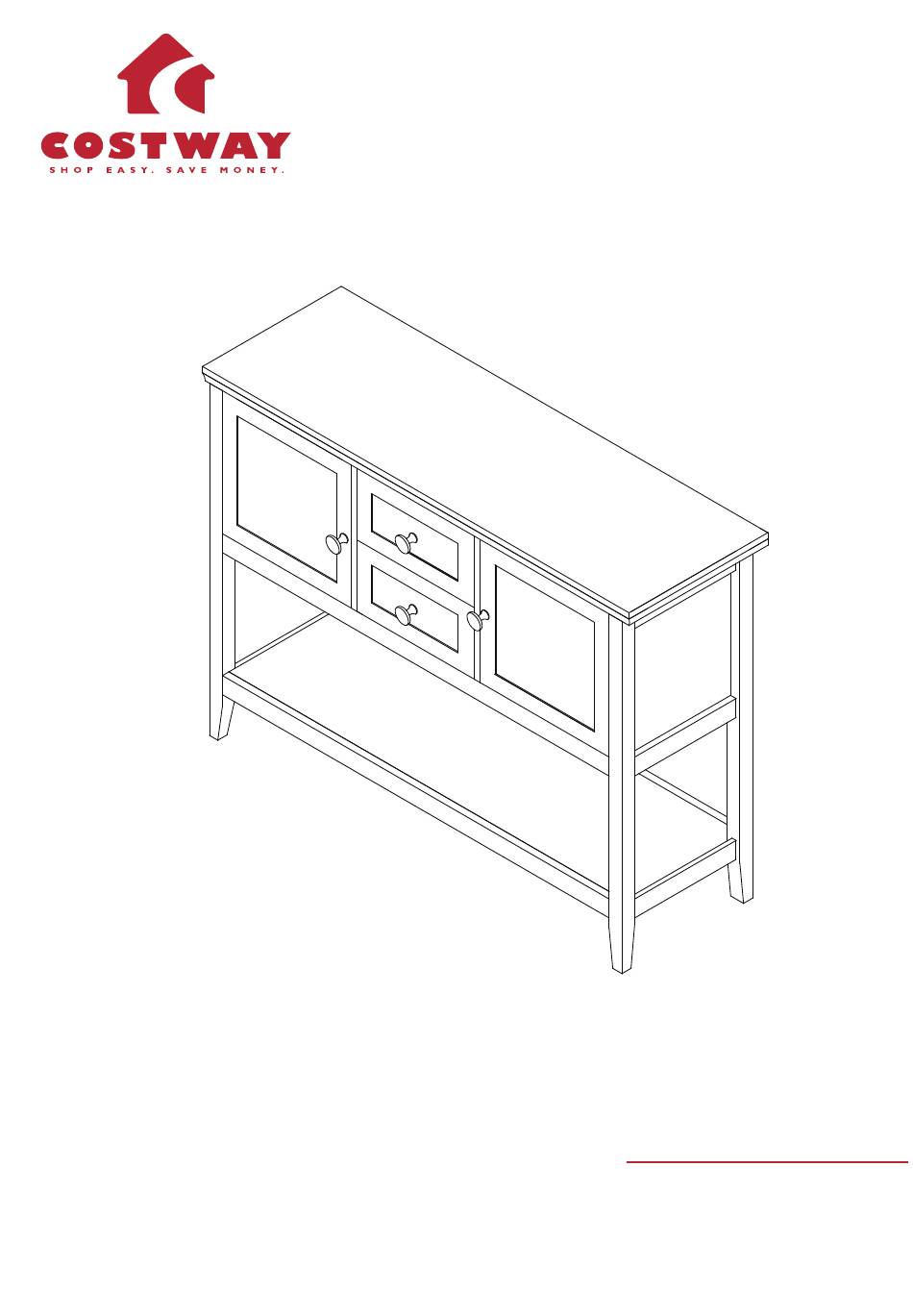

  • Page 1 USER'S MANUAL Console Table HW64005...

  • Page 2: Product Assembly

    PRODUCT ASSEMBLY Hardware List 48 pcs 4 pcs 8 pcs 6*35mm 4*30mm 48 pcs 4 pcs 4 pcs 4*16mm 4*35mm 15*10mm 40 pcs 4 pcs 2 pcs 8*30mm 34 pcs 2 sets 2 pcs 3*12mm 300mm 4 pcs 16 pcs 3*14mm 2.5*12mm Parts List...
  • Page 3 PRODUCT ASSEMBLY Part List Assembly Overview 2/10...
  • Page 4 PRODUCT ASSEMBLY 48 pcs Step 1 1) Lay Top Panel (1), Connect Bar (10), Middle Back Connect Bar (11), Drawer Front Panel (12), Left panel (2) and Right Panel (3) as shown on a flat and soft surface that does not scratch the parts. 2) Screw Cam-bolt (A) into the designated holes on each .
  • Page 5 PRODUCT ASSEMBLY 8 pcs 8 pcs Step 2 Step 3 2 pcs 2 pcs 1) Insert Drawer Back Panel (16) as per the groove on (13, 14 & 15). 2) Attach Drawer Front Panel (12) to (13 & 14) via Cam-bolt on (12). Attach Drawer Side Panel (13 &...
  • Page 6 PRODUCT ASSEMBLY 10 pcs Step 5 2 pcs 4 pcs Attach Hinge (K) and Magnetic Bar (I) to Door (6 & 7) by using Screw (D) as shown. 8 pcs Step 6 2 sets Back side with two holes for magnetic catch Back side with two holes for magnetic catch Attach Drawer Glide (N1) to Left and Right Divide Panel (4 &...
  • Page 7 PRODUCT ASSEMBLY 8 pcs Step 7 6 pcs 1) Attach Connect Bar (10) to Bottom Shelf (9) via Wood Dowel (C) and Cam-bolt on (10). 2) Insert Cam-lock (B) to the designated holes on (9) then turn clock-wise to lock onto Cam-bolt.
  • Page 8 PRODUCT ASSEMBLY 4 pcs Step 9 4 pcs 1) Attach (8, 10 & 11) to Left Panel (2) via Wood Dowel (C) and Cam-bolt on (2). 2) Insert Cam-lock (B) to the designated holes on (8, 10 & 11) then turn clock-wise to lock onto Cam-bolt.
  • Page 9 PRODUCT ASSEMBLY 8 pcs Step 11 8 pcs 1) Attach Right Panel (3) to (8, 9, 10 & 11) via Wood Dowel (C) and Cam-bolt on (2). 2) Insert Cam-lock (B) to the designated holes on (8, 9 10 &11) then turn clock-wise to lock onto Cam-bolt.
  • Page 10 PRODUCT ASSEMBLY 8 pcs Step 13 8 pcs 1) Attach Top Panel (1) to (2, 3, 4 & 5) via Wood Dowel (C) and Cam-bolt on (1). 2) Insert Cam-lock (B) to the designated holes on (2, 3 4 & 5) then turn clock-wise to lock onto Cam-bolt. 16 pcs Step 14 Attach Back Panel (17) with Screw (J).
  • Page 11 PRODUCT ASSEMBLY 8 pcs Step 15 4 pcs 2 pcs 2 pcs 2 pcs 1) Attach Magnetic Catch (H) to Divide Panel (4 & 5) with Screw (E). 2) Attach Door (6 & 7) to Side Panel with Screw (D). 3) Attach Knob (M) to Door (6 &...
