ROCAM
R
CR1009 meets the NWS evaluation criteria for NWR All Hazards logo use

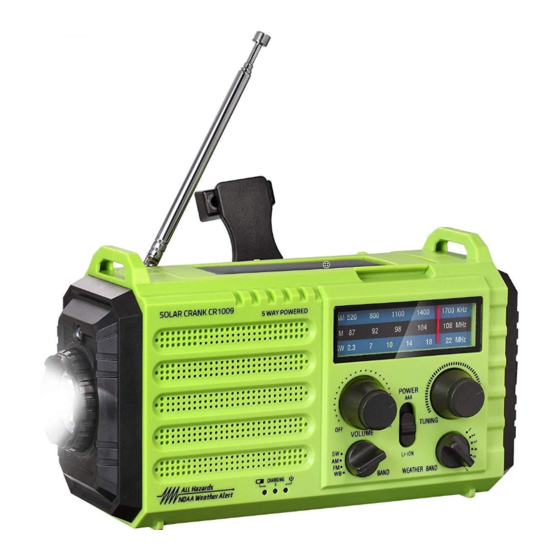

Emergency Alert Radio
CR1009
with AM/FM/SW/NOAA weather/Solar Crank
Chapter 1 LOCATION OF CONTROLS
3
4
2
5
1
6
20
21
22
23
1. USB Output Charging Port
2. Micro USB Input charging Port for Built-in Battery
3. Carry Strap Holder
4. Flashlight Button
6. SOS Control Button
7. Speaker
9. Power ON/OFF & Volume Knob
11. Turning Knob
12. Battery Indicator
14. Power On Indicator
15. Band Selector
17. Weather Band Selector
19. Flashlight
20. 5000mAh Rechargeable Battery (included)
21. Battery Compartment Cover
24. AAA Battery Compartment Cover
25. Crank Handle
8
7
9
10 11
18
19
12 13 14 15 16 17
24
25
5. Reading Lamp Button
8. Telescopic Antenna
10. Frequency Display
13. Charging Indicator
16. Power Selector
18. SOS Flashlight
22. Solar Panel
- 01 -
Contact our experts
help@yelaw.net
Http://www.yelaw.net
Chapter 2 POWER SUPPLY MODE
1
4
There are 5 power supply to power the radio:
1. Hank Crank Power
(1) Unfold the crank handle from the backside and rotate it in either
direction.
(2) Rotate the crank handle, It will generate 300-350mA electricity
to charge build-in 5000mAh rechargeable battery.
Note: Rotate the crack handle at the speed of 2 laps per second.
It will generate 300-350mA electricity.
2. Solar Power
(1) Expose the solar panel to sunlight, don't charge indoors.
(2) It will generate 30-50mA electricity to charge build-in 5000mAh
rechargeable battery.
Note: Solar panel will generate 30-50mA electricity when exposed to sunlight.
It is difficult to fully charge the 5000mAh battery with solar panel, which is
mostly used for maintaining the rechargeable battery.
3. Micro USB Adapter Charging input
(1) Connect USB Cable(included) to a regular AC power adapter(not
included).
(2) Plug the USB cable into the Micro USB port of the radio.
(3) Plug the AC adaper to a 110-220V standard outle.
It is highly recommended to use 5V/2A AC power adapter.
Made in PRC
2
- 02 -
Version 2.2
5
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROCAM CR1009
Summary of Contents for ROCAM CR1009
- Page 1 ROCAM Contact our experts help@yelaw.net CR1009 meets the NWS evaluation criteria for NWR All Hazards logo use Http://www.yelaw.net Emergency Alert Radio CR1009 with AM/FM/SW/NOAA weather/Solar Crank Version 2.2 Made in PRC Chapter 1 LOCATION OF CONTROLS Chapter 2 POWER SUPPLY MODE...
- Page 2 Chapter 7 READING LAMP 1. Rotate up the lamp by 90 degrees for better reading If the CR1009 has no power, you can rotate the crack handle for 8-15 as a table lamp. minutes (The time depends on your speed of rotation). then your phone will 2.
