APPLICATIONS:
EN
20W, 30W and 40W: radio controls, hobbies and crafts, small
electrical parts, etc.
60W, 80W, 100W: household electrical appliances, capacitors, etc.
100W, 150W, 200W, 250W, 300W, 500W: metal board tube,
big components, heavy duty soldering, etc.
ATTENTION:
On first time use the soldering iron may produce smoke,
this is just grease used in manufacturing burning off.
It is normal and should only last for approx. 10 minutes.
It is not harmful to the product or user.
CARE OF THE TIP:
• Always keep tips tinned to ensure a long service life.
• Do not keep the iron at high temperature for a long time.
• Never clean the tip with coarse materials.
• Never cool in water.
• Remove the tip and clean every twenty hours of use, or at least
once a week, and remove any loose build up in the barrel.
• Do not use fluxes containing chloride or acid.
Use only rosin or activated resin fluxes.
• Do not use any compound or anti-seize materials.
• Handle the heated soldering iron with extreme care, as the high
temperature of the iron can cause fires or painful burns.
• Never file the specially-plated tip.
MAINTENANCE:
• This tool must be placed on its stand when not in use.
• If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualified person in order to avoid hazard.
HOW TO SOLDER:
1. Clear any dirt, rust or paint on the part you wish to solder.
2. Heat the part with the soldering iron.

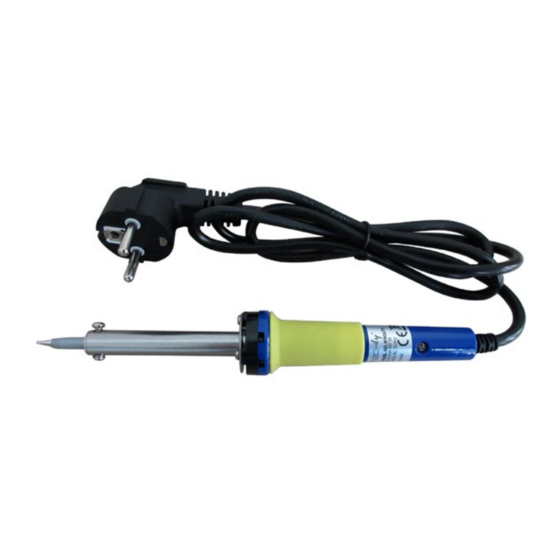

60 WATT SOLDERING IRON
3. Apply rosin-based solder to the part and melt it
with the soldering iron.
Note: when using non-rosin-based solder, be sure to apply
a soldering paste to the part before applying the solder.
4. Wait for the solder to cooling and hardened before moving
the soldered part.
TIP REPLACEMENT:
Note: Tip replacement or cleaning should be done only when
the iron is at room temperature or below.
After removing tip, remove any oxide dust that may have formed
in the tip retaining area of the barrel. Be careful to avoid getting
dust in your eyes. Care should be taken not to over tighten
as this would damage the element.
GENERAL CLEANING:
The outer case of the iron or station may be cleaned with a damp
cloth using small amounts of liquid detergent Never submerse
the unit in liquid or allow any liquid to enter the housing.
Never use solvent to clean the case.
WARNING INSTRUCTIONS:
• The appliance is not a toy, and must be kept out
of children's hands.
• Before cleaning the appliance or changing the filter,
always remove the power lead plug from the socket.
Unscrewing the housing is not permitted.
