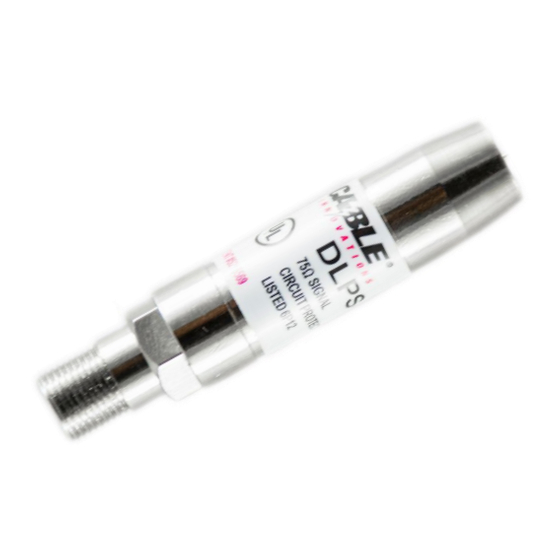

Cable Innovations DLPS-15C Installation And Information Sheet

GENERAL INFORMATION:

1. This surge protector is for outdoor use.
2. The DLPS-15C is to be used with 75 ohm coaxial cable such as Series 59 and Series 6.
3. This is a dual directional protector, so either connector can be the service port. If attached directly to the
round block the female connector will become the customer port.
4. DLPS-15C conforms to surge fusing guidelines outlined under UL-497C and ANSI/NFPA 70
National Electrical Code, Article 830 and is rated as a low power device as defined in Table 830-4
5. The DC breakdown rating is 135 volts.
6. The normal operating parameters of the DLPS-15C are as follows:
P E R F O R M A N C E
Frequency
Insertion loss
Return loss
EMI shielding
See reverse for instructions

LIMITED WARRANTY

Cable Innovations, Inc warrants its products to be free from defects in material and workmanship for a period of two (2) years. If a
product proves to be defective in material or workmanship during the warranty period, Cable Innovations, Inc will, at its sole option,
repair or replace the product. Please call 1-800-952-5146 8:00 AM to 5:00 PM EST Monday thru Friday for warranty information. There
are no warranties, expressed or implied, which extends beyond the description contained herein.
INSTALLATION AND INFORMATION
SHEET FOR DLPS-15C
Operating voltage
Wattage
Application
Surge Protection
Power Passing
Switching Voltage
Response Time
5-15 mhz 15-250 mhz
< .75B < 0.5dB
> 21dB > 21dB
> 120dB > 120dB
CABLE INNOVATIONS INC.
130 Stanley Ct.
Lawrenceville,GA 30045
770-962-5146
www.cableinnovations.com
60 and 90 volts
90 Watts
Drop Protection
1000 Amps (2 x 10µs)
Up to 1 amp
135V Peak Min.165V Peak Max.
Less than 1 nanosecond
250-550 mhz
< 0.5dB
> 21dB
> 120dB
550-900 mhz 900-1000 mhz
< 0.5dB < 0.75dB
> 21dB > 21dB
> 120dB > 120dB
