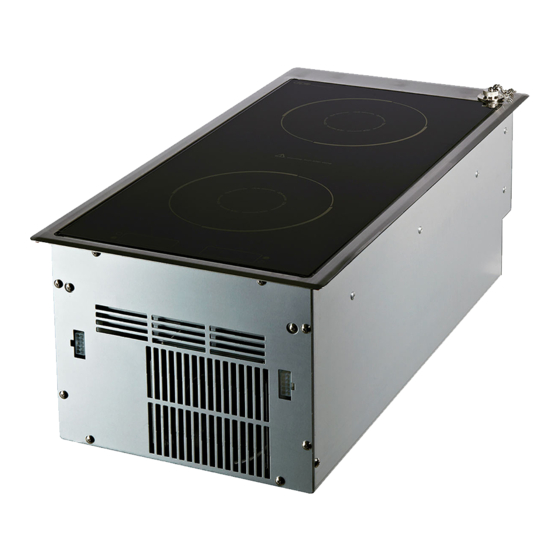

dipo INDUCTION DIBK218S Quick Start Manual

Seoul Office: #75, Achasan-ro 78-gil, Gwangjin-gu, Seoul, Republic of Korea 04969 / Tel : +82 2-444-5895 / Fax : +82 70-4694-5412
R&D Center: #209, Goraesan-ro, Wabu-eup, Namyangju-si, Gyeonggi-do, Republic of Korea 12202 / Tel : +82 2-444-5895 / Fax : +82 70-4694-5412
2 Hob Built-in Induction
DIBK218S
Electricity
Power Connection
Conversion to Calory
Warming
Output per
Warming Steps
Dimension / Weight
Controller Type
Power Cable
Cookware Diameter
Recommendation
Functions
Features
Warranty

Installation Guide

Electric Wiring
DIPO INDUCTION CO., Ltd. / www.dipoele.com
COPYRIGHT©2010 DIPO INDUCTION CO., LTD ALL RIGHTS RESERVED.
Specification
DIBK218S 220V, 60Hz, 1PH
DIBK218S-A 208~240V, 50/60Hz, 1PH
DIBK218S-E 220~240V, 50/60Hz, 1PH
DIBK218S-J 200V, 50/60Hz, 1PH
Direct Conection
to Circuit Breaker
H1 ~ H7
(7 Steps)
H1 H2
40Wh 60Wh 100Wh
Product: 300 X 600 X 220 (mm) / 21kg
Package: 700 X 460 X 350 (mm) / 21.3kg
660 mm
min : Ø110mm
max : Ø240mm
▣ Safety
- No vessel : "00"
- Over current indication : "E1"
- Over voltage indication : "E2" ( Above 265V )
&
- Low voltage : "E3" ( Below 180V )
- Over heated product indication : "E4" ( IGBT heat sink temperature above 85℃ )
- Unstable power indication: "E7"
- Defective PCB indication : "E8"
- Defective Working Coil indication : "E9"
1 year (to be charged in case of user's negligence)
▶ Electricity : 220V 1PH
▶ Circuit breaker : 20A or above
▶ Cables : 400V, 6SQMM or above,
2 or 3 phase
▶ Ground cable separated - 4SQMM or above
DIBK218S
DIBK218S-A
Power
Consumption
DIBK218S-E
DIBK218S-J
Max Current
3456 Kcal/h
Heating
H3 H4 H5 H6
130Wh 170Wh 240Wh 350Wh
Jog dial, Capactive button
(separated from the unit)
Controller Cable
Loadable Weight
Customized burner, Main kitchen
4000 W
3400 W
17 A
1 ~ 8
(8 Steps)
H7
360 mm
60Kg
