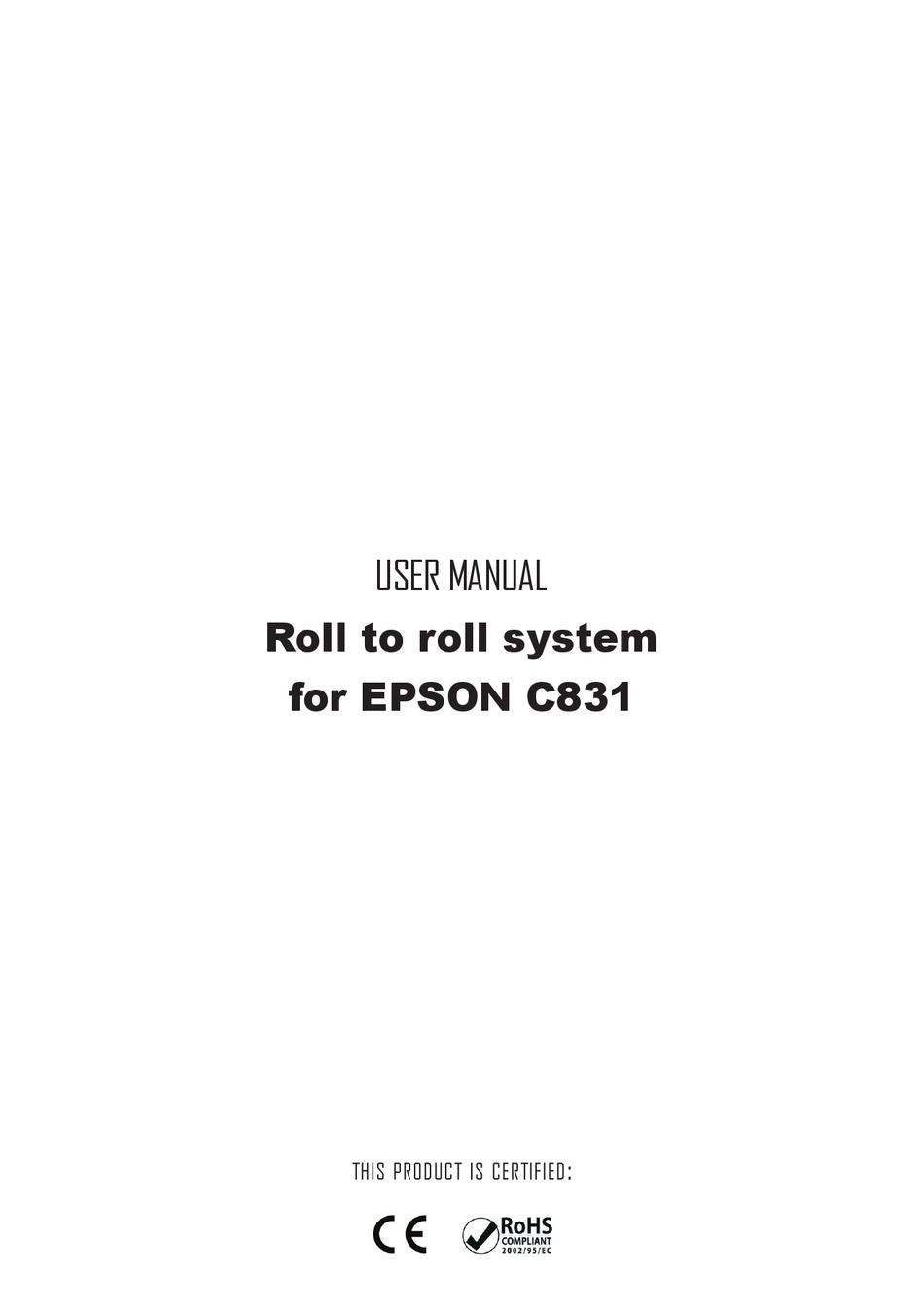

USER MANUAL
Roll to roll system
for EPSON C831
:
this product is certified

Advertisement

loading

Related Manuals for Epson C831

Summary of Contents for Epson C831

  • Page 1 USER MANUAL Roll to roll system for EPSON C831 this product is certified...

  • Page 3: Power Supply

    APPLICATIONS The label rewinder and unwinder specifically designed for Epson C831 color label printer can handle rolls up to 240mm (8.66”) media wide and having an outside diameter up to 250mm (10”). Unit is equipped with a fixed 3” core holder.
  • Page 4 STEP 4 Keeping the media underneath the tension arm, turn on the unwinder and feed the media into the printer. Please look at printer’s user manual and follow the detailed procedure on how to load the media into the printer. STEP 5 Once the media is loaded into the printer, slide left and right the unwinder to find the correct...
  • Page 5 STEP 9 Slide in the outer disk onto the core holder and keep it close to the media edge. Tighten the knob. Once the media is loaded on the rewinder, slide left and right the rewinder to find the correct alignment between the two units and tighten the knobs.
  • Page 6 WORKING CONDITIONS LABEL REWINDER: - When the printer forwards the media for printing, the tension arm goes down, the device rewinds the media. Yellow or green led on depending on the selected rewinding mode (face-in or face-out). - When the tension arm is in the middle position, the device is idle. Both yellow and green leds on. - When the printer backwards the media, the tension arm goes up, the device unwinds it.
  • Page 8 smart solutions for the labeling industry Label rewinder, label unwinder, electronic label dispenser and more... - FOR MORE INFO CONTACT YOUR RESELLER -...
